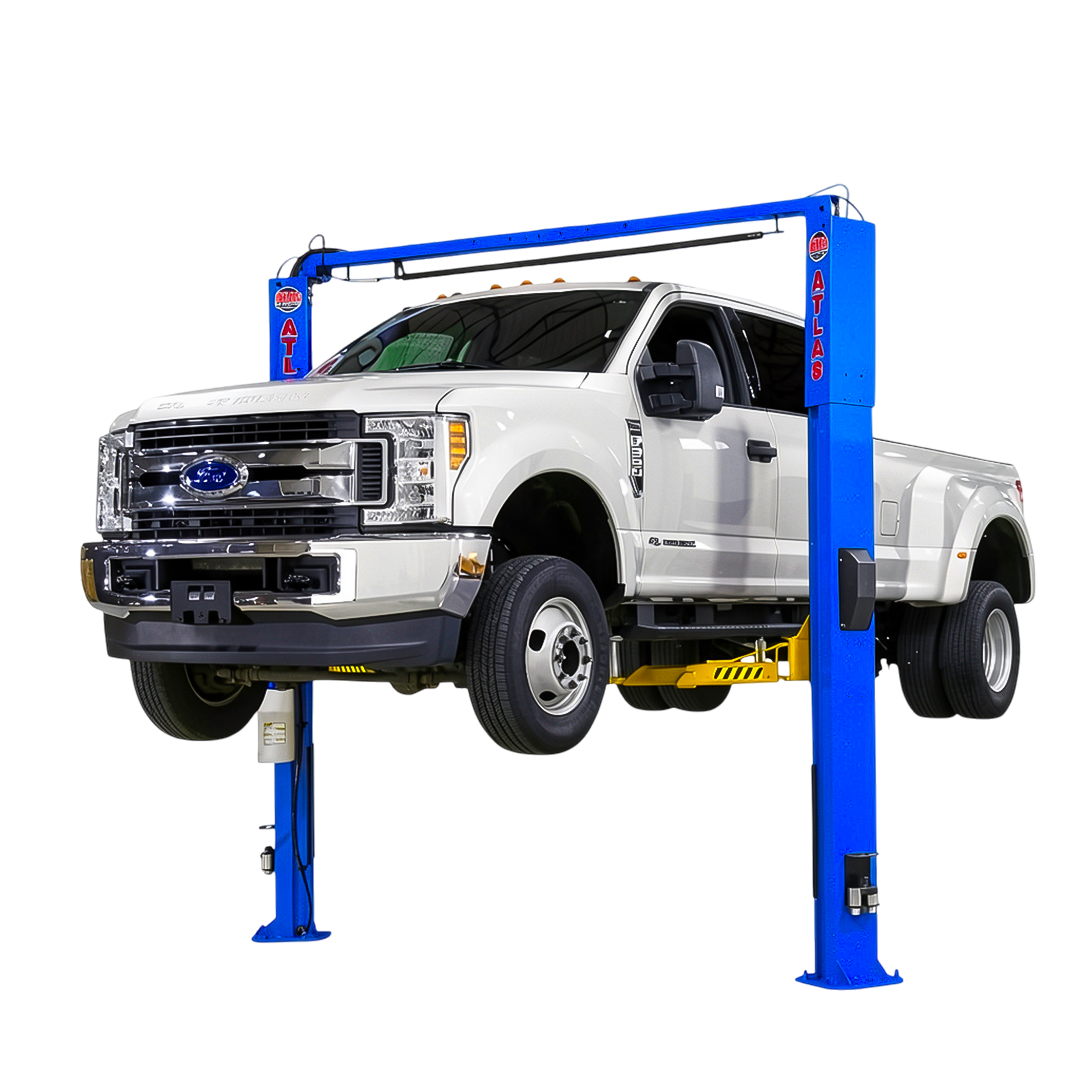

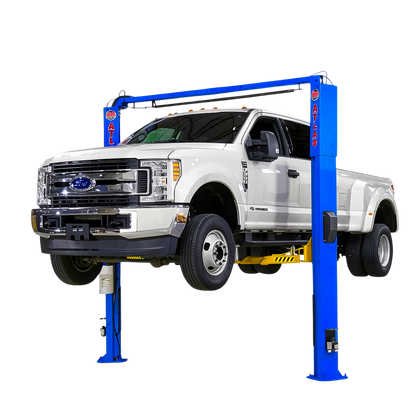

Atlas PVL10 ALI Certified 10,000 lb Overhead Lift
Atlas PVL10 ALI Certified 10,000 lb Overhead Lift
ALI certified 10,000 lb. 2-post lift. Commercial grade, versatile, and built for professional shops.
Regular price
$5,049
Sale price
$5,049
Regular price
SKU: ATEAP-PVL10
Included free:Free:
Talk to an expert before you buy
Questions on fit, ceiling height or install? We'll help you pick the right one.
Accessories
On display in our Indiana showroom. See it run, then take it home today. We'll load it for you. Open Mon–Sat.
Included free with this product
Quantity
Couldn't load pickup availability
Why buy from Truman
Free pickup
Indiana
Nationwide
Fast shipping
Local installer
Referrals
Largest showroomShowroom
In the countryLargest in the US
100+ years
Of experience
Real people
Ready to help
Why This Lift

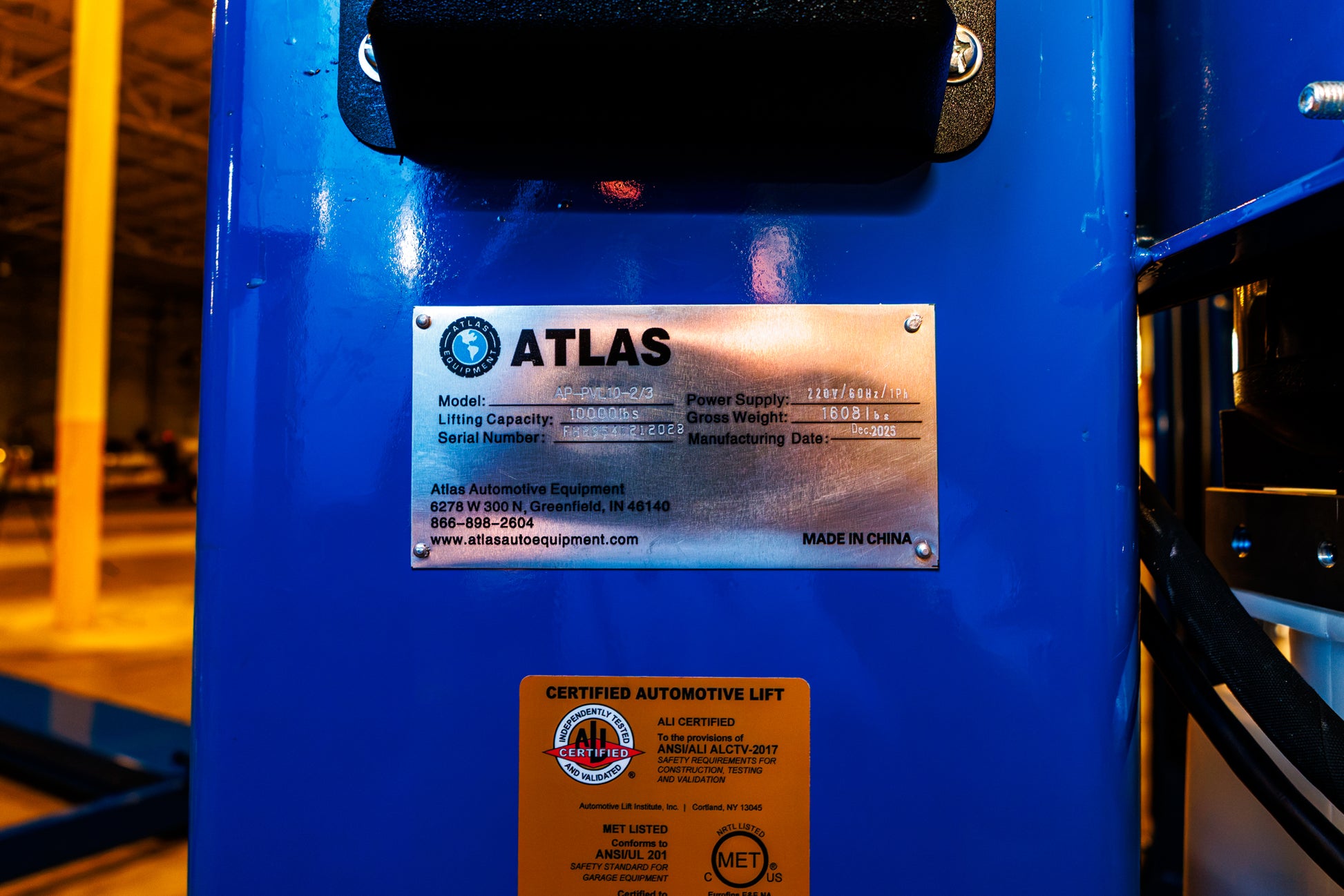

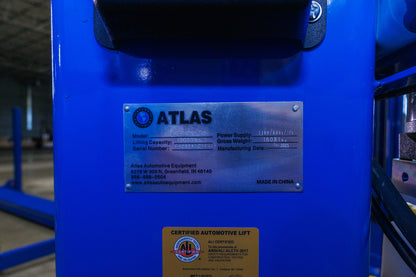

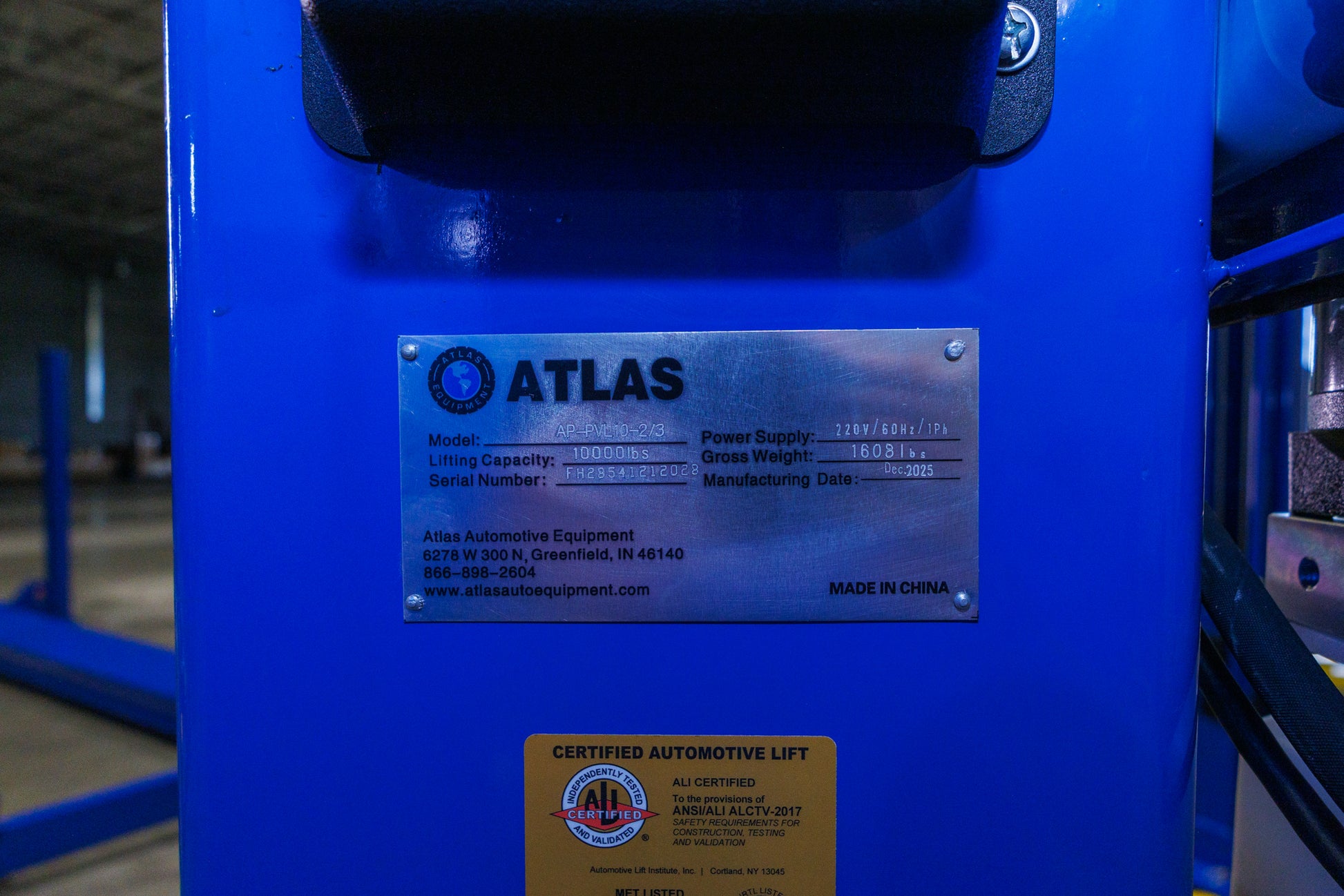

- ALI certifiedBuilt to industry safety standards
- Install it your wayColumns set symmetric or asymmetric
- 3-stage front armsReach short and long wheelbase lift points
- Premium power unitALLY AL2850, MET certified for the US and Canada
Explore this lift

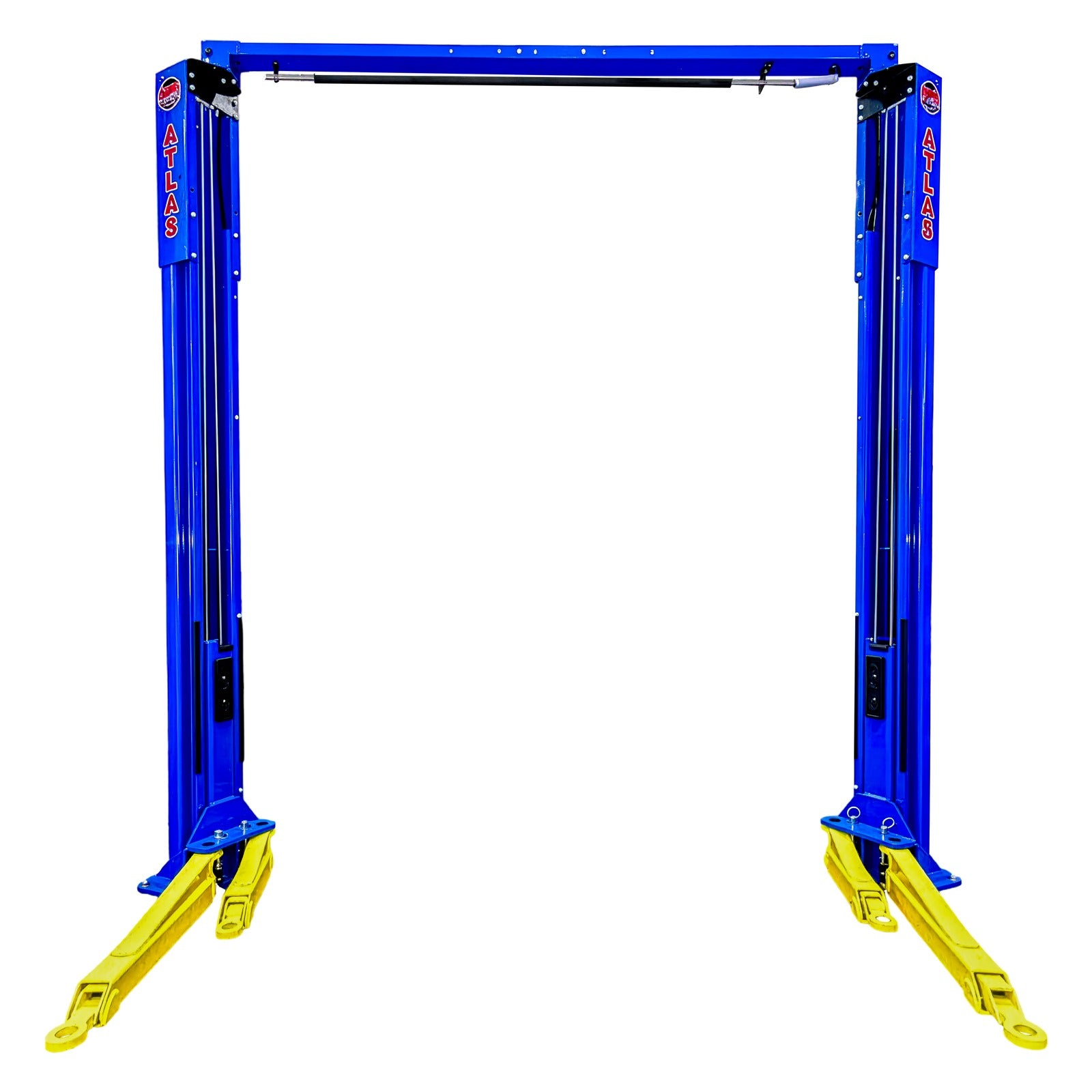

Explore the Atlas PVL10
Tap a number to see what each part does.
What You'll Love
Handles the heavy stuff
Fits your bay, your way
Protects the vehicle
Product Description

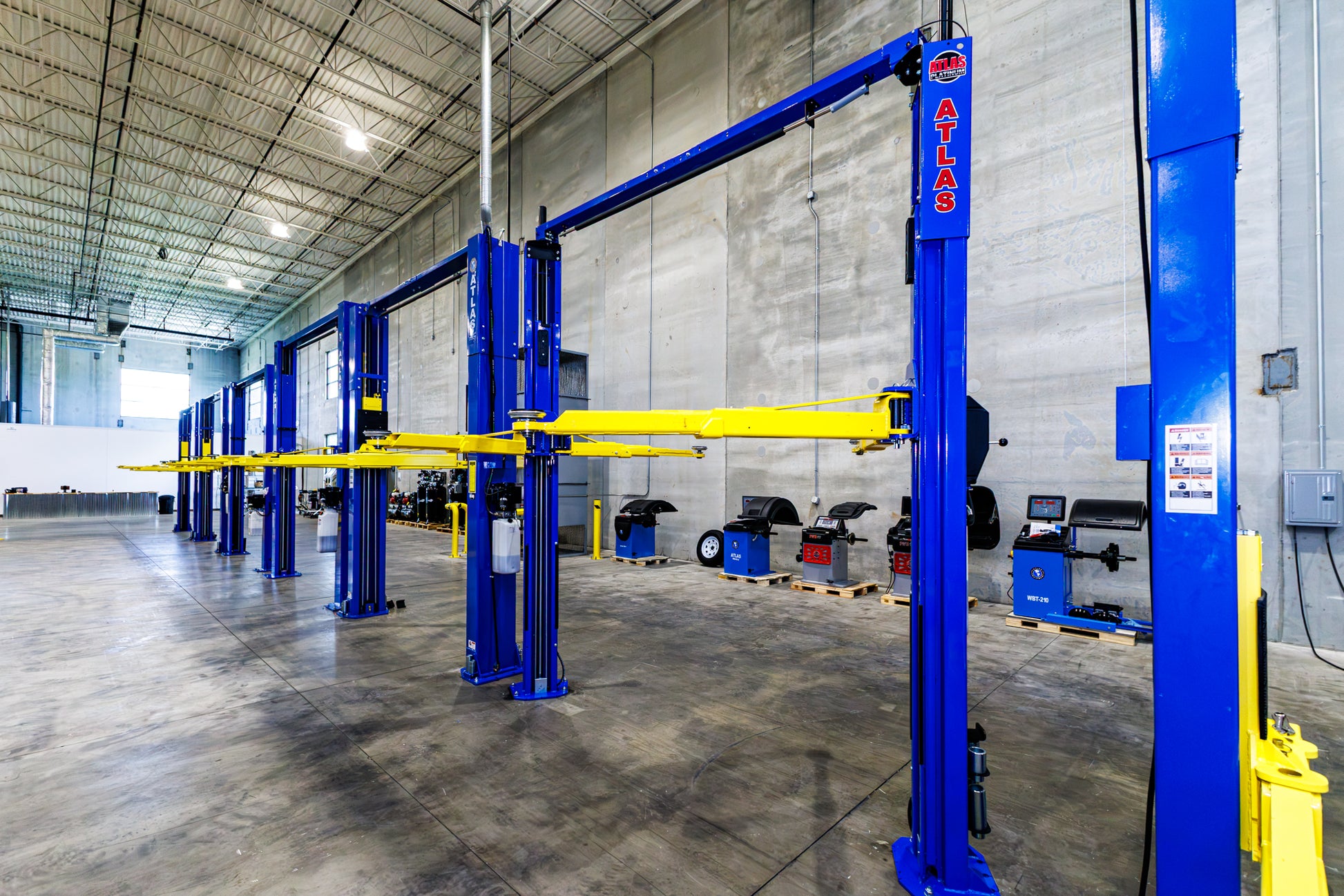

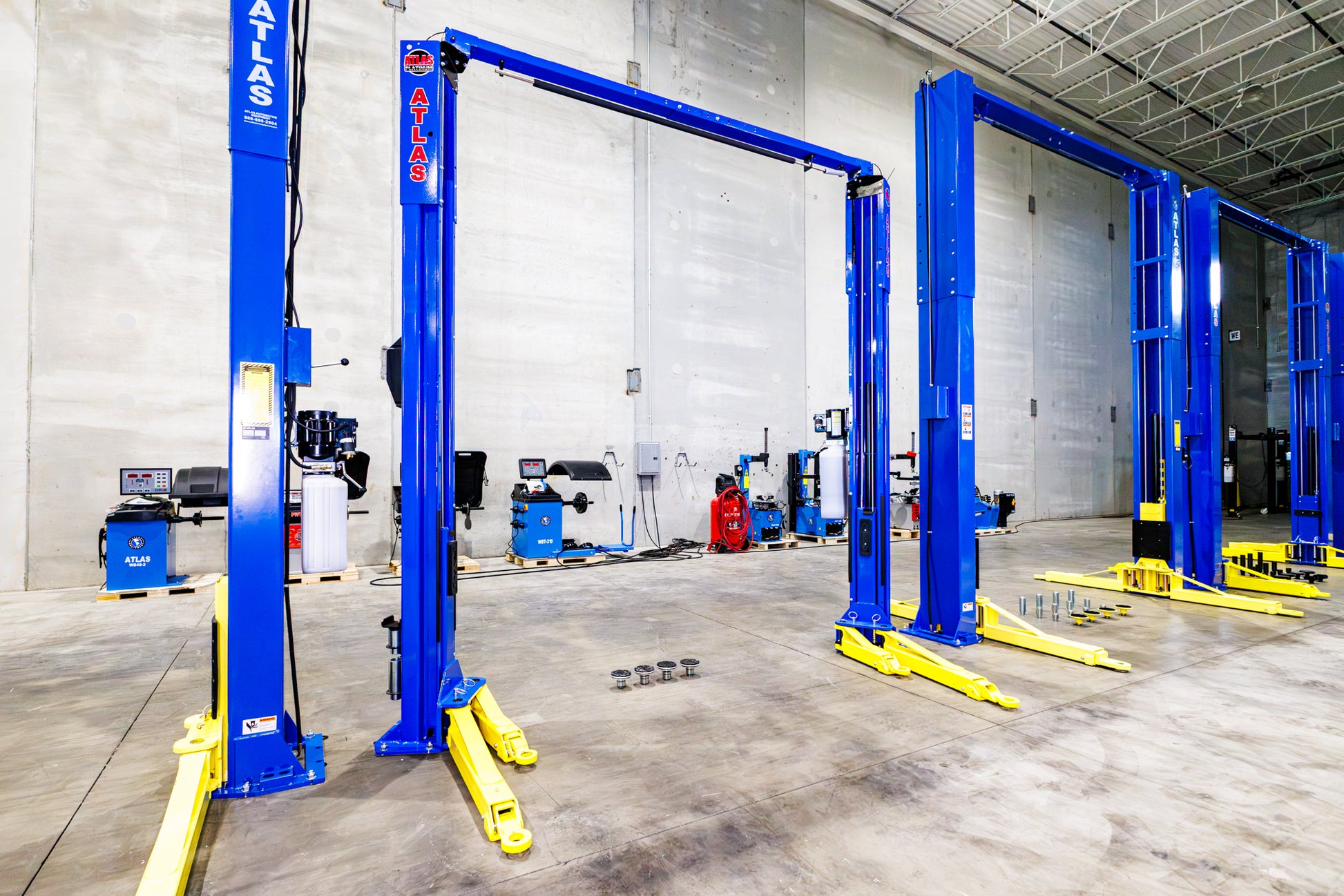

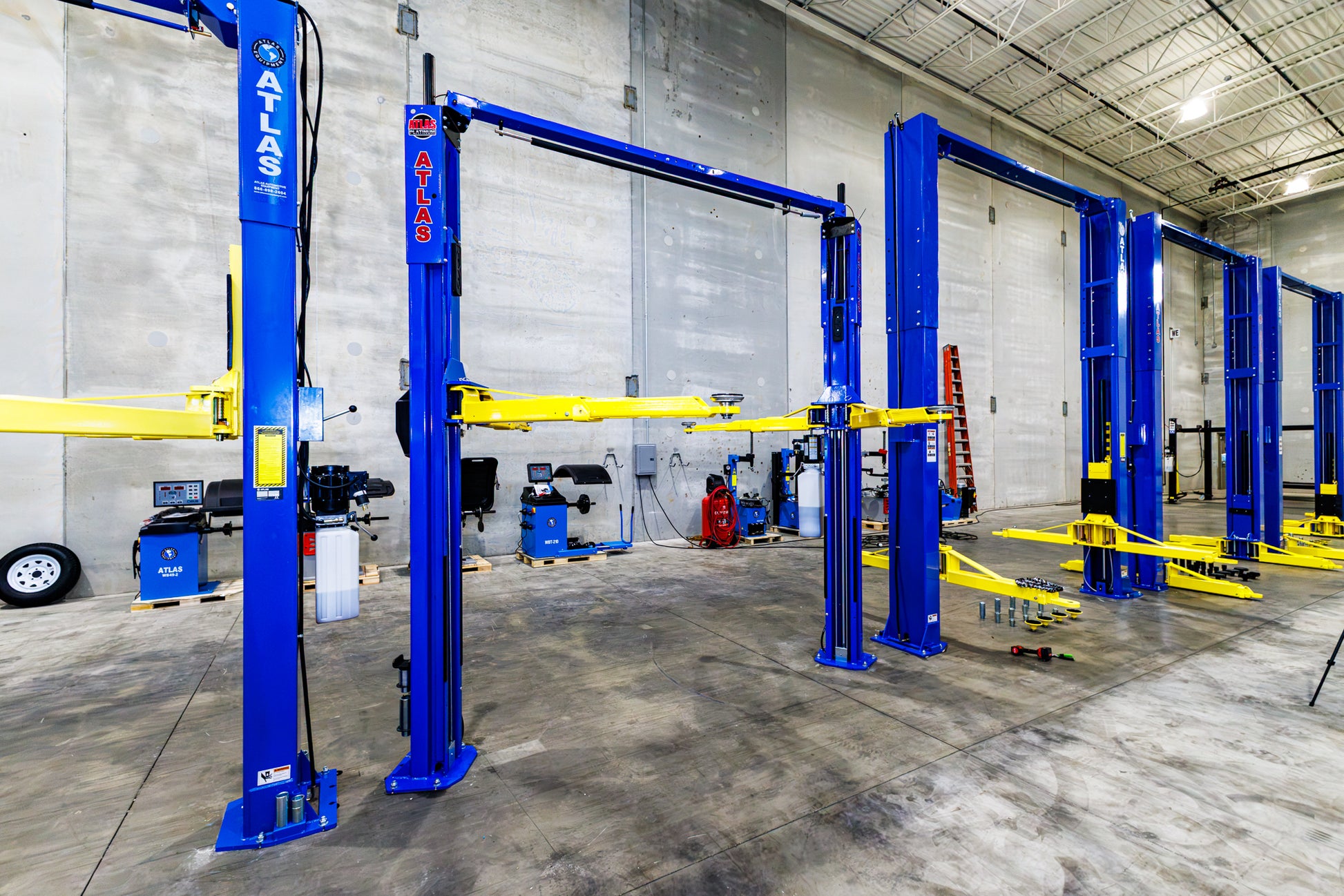

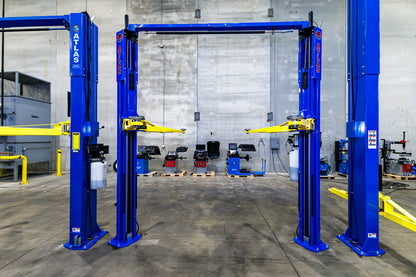

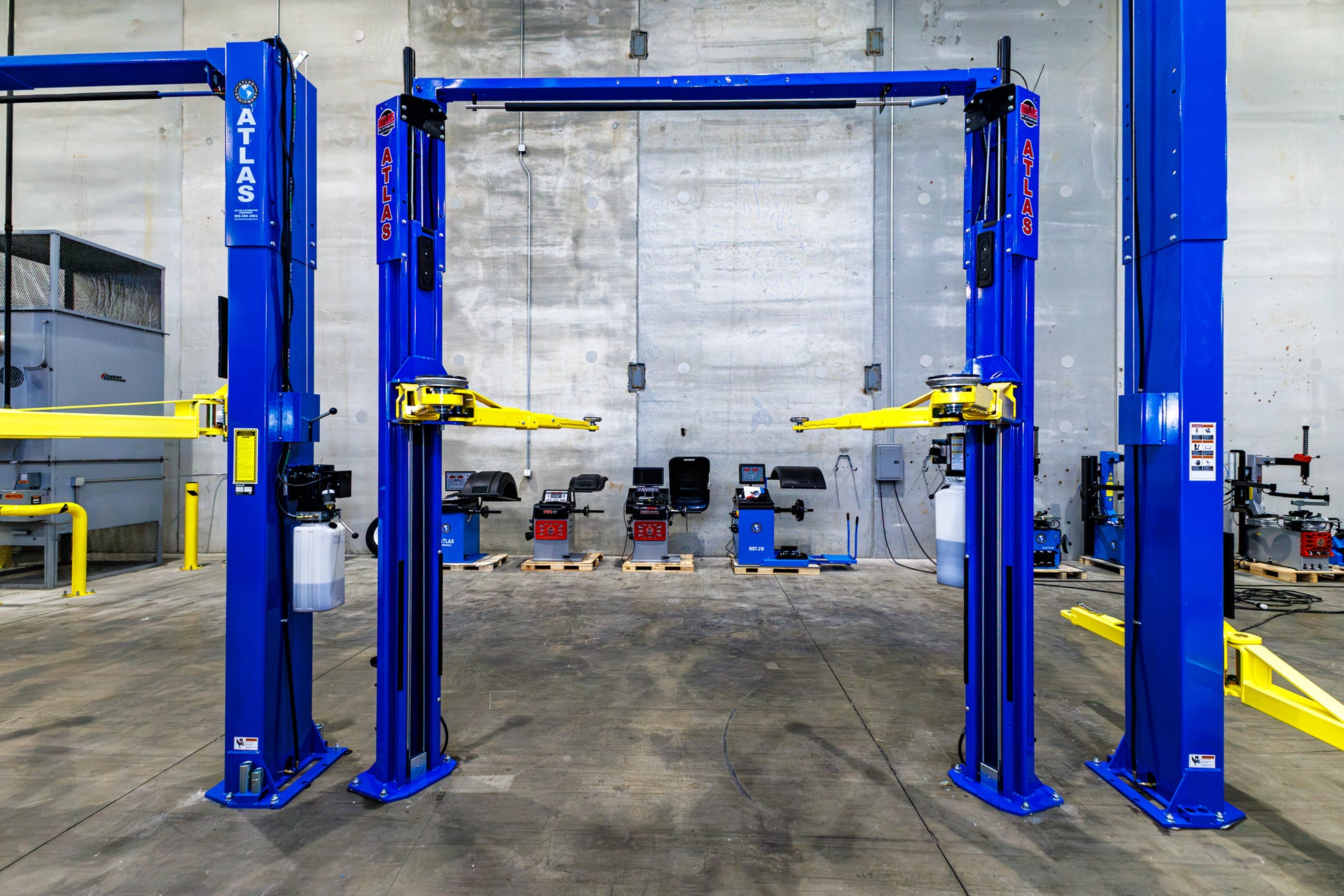

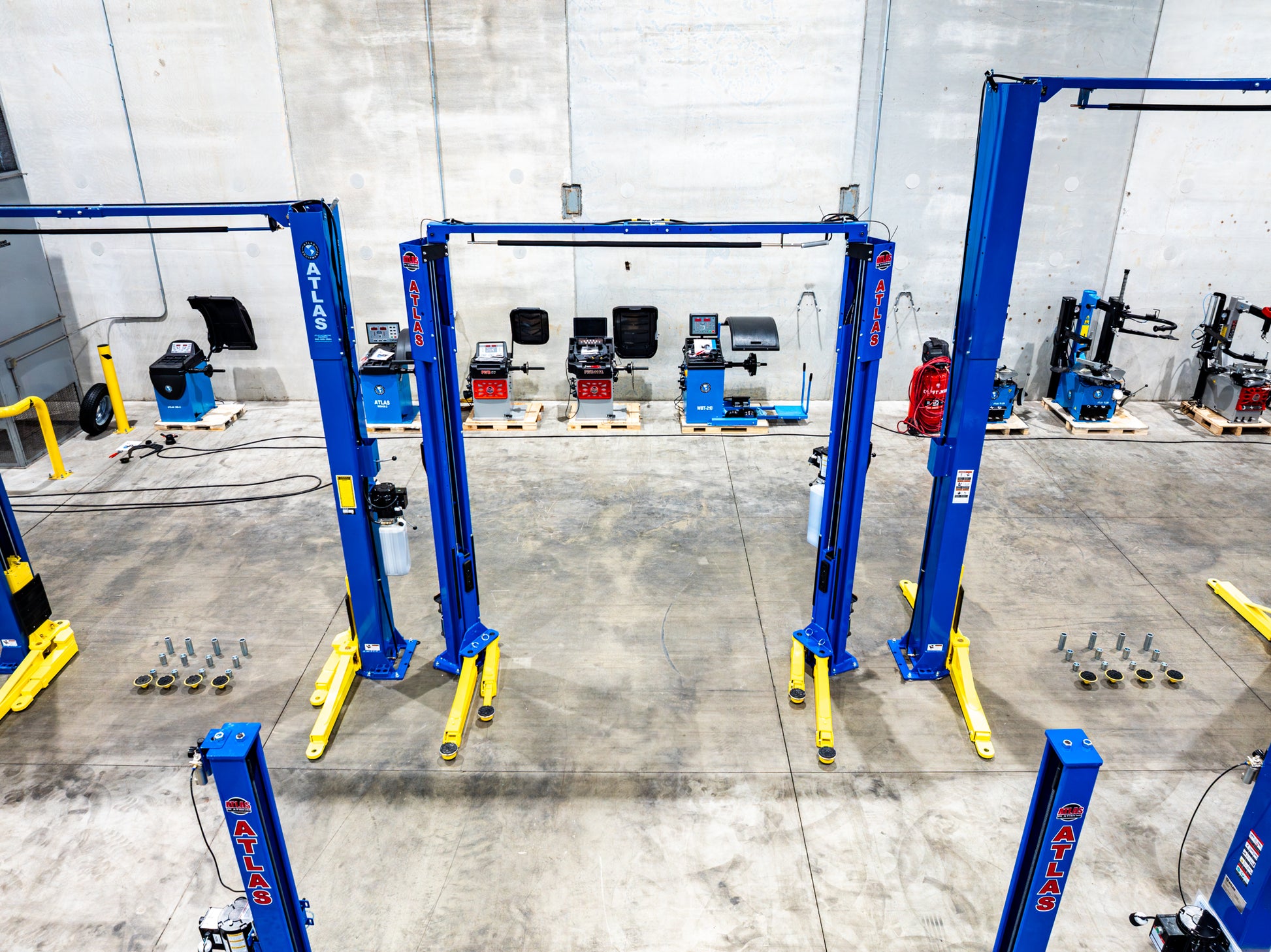

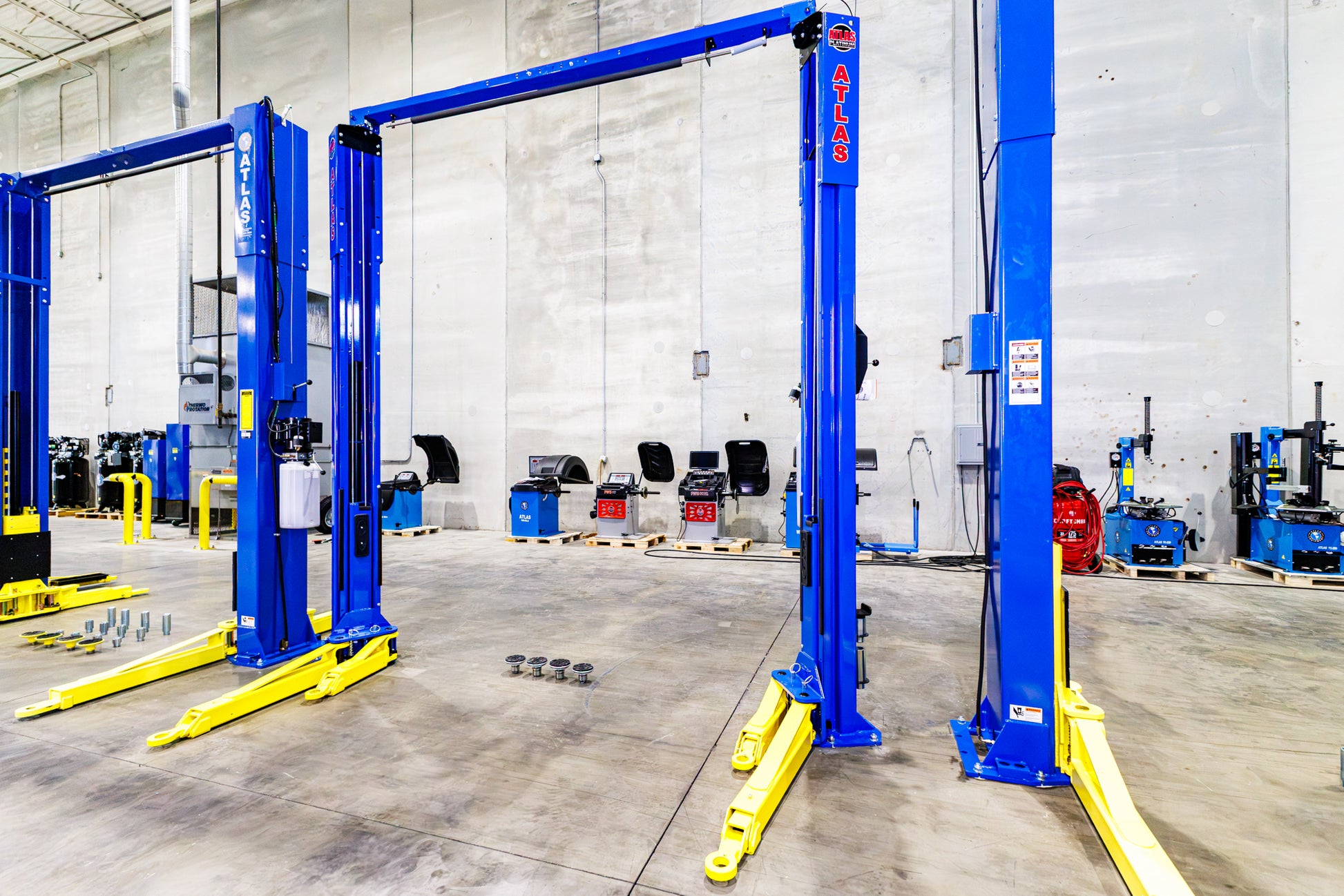

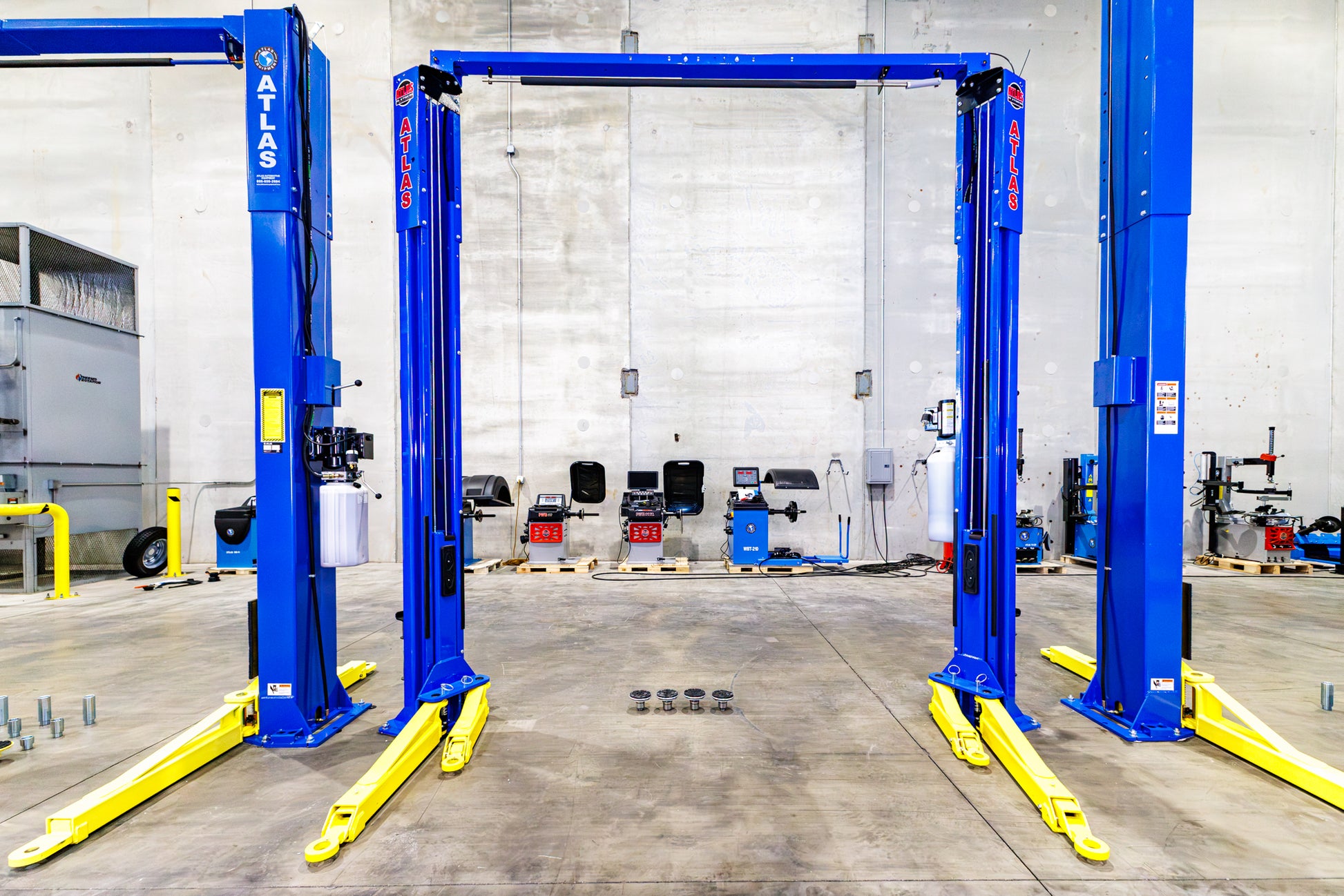

The Atlas Platinum PVL10 is an ALI certified, 10,000 lb. capacity two-post lift built for professional shops. It uses the proven Double S column design, a symmetric column style that has been used on tens of thousands of lifts worldwide.

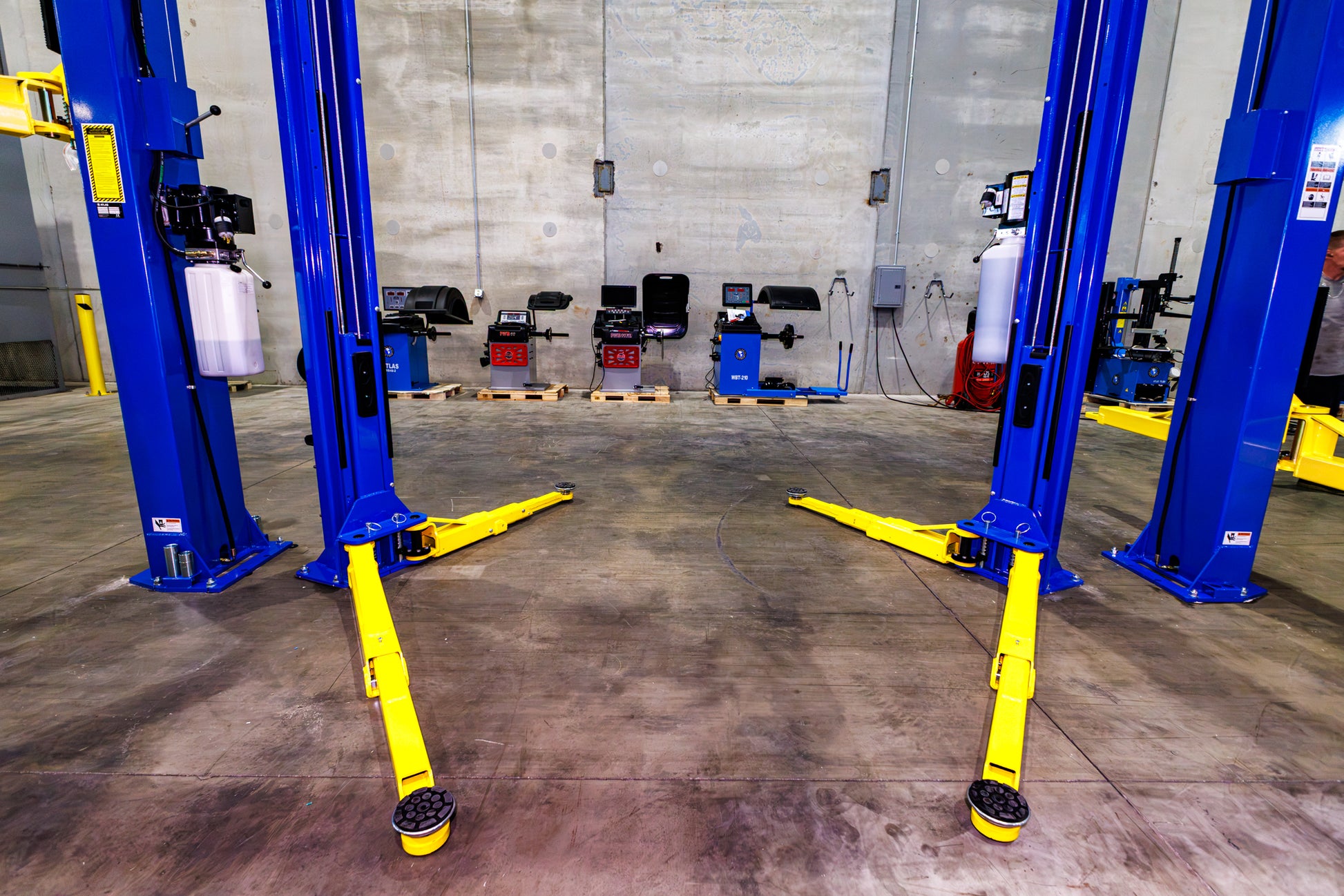

You choose how it's installed. Set the columns asymmetric for easier entry and exit with less chance of door dings, or symmetric for a wider space between the columns that fits wide trucks and SUVs. Either way, three-stage telescoping front arms reach both short and long wheelbase lifting points.

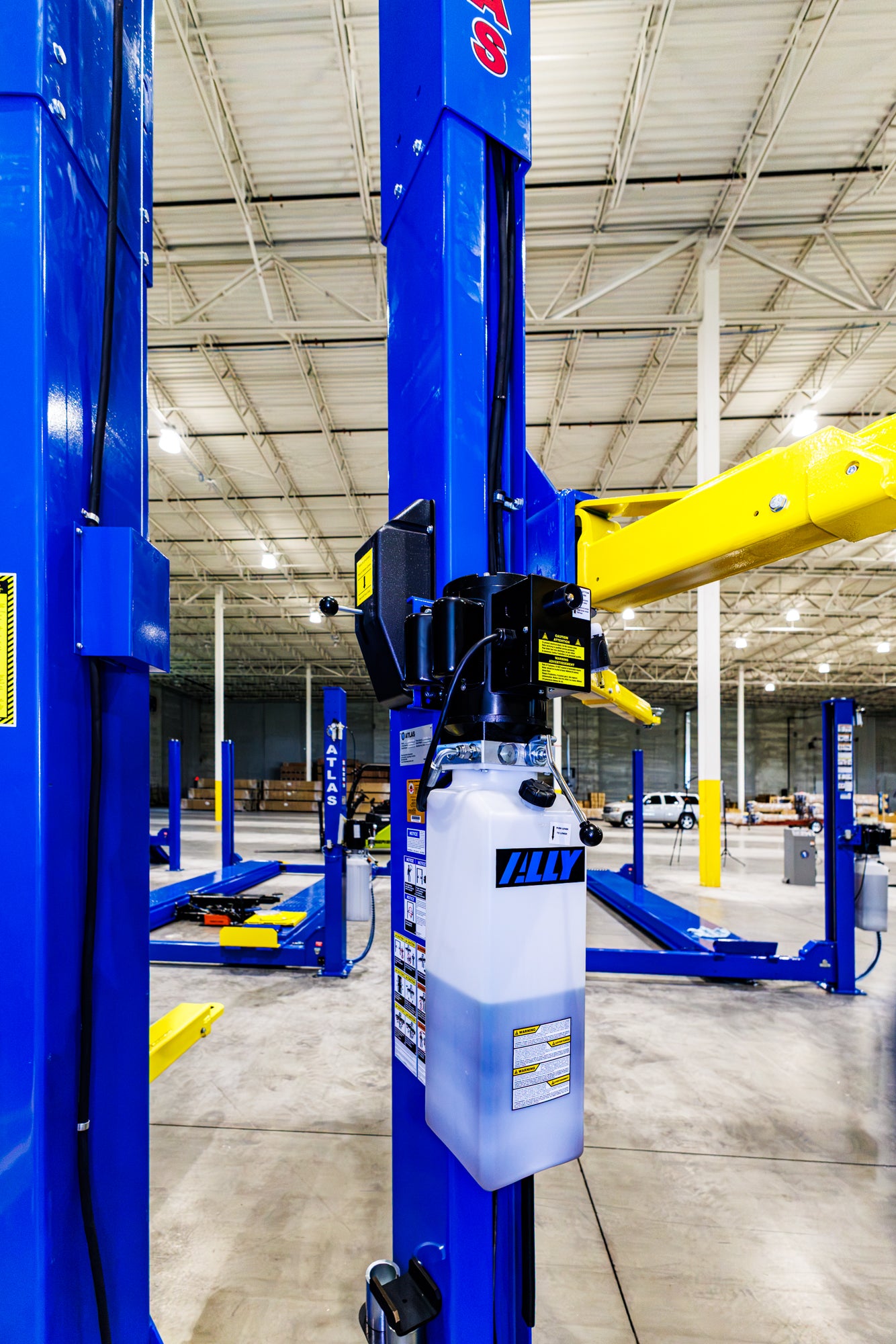

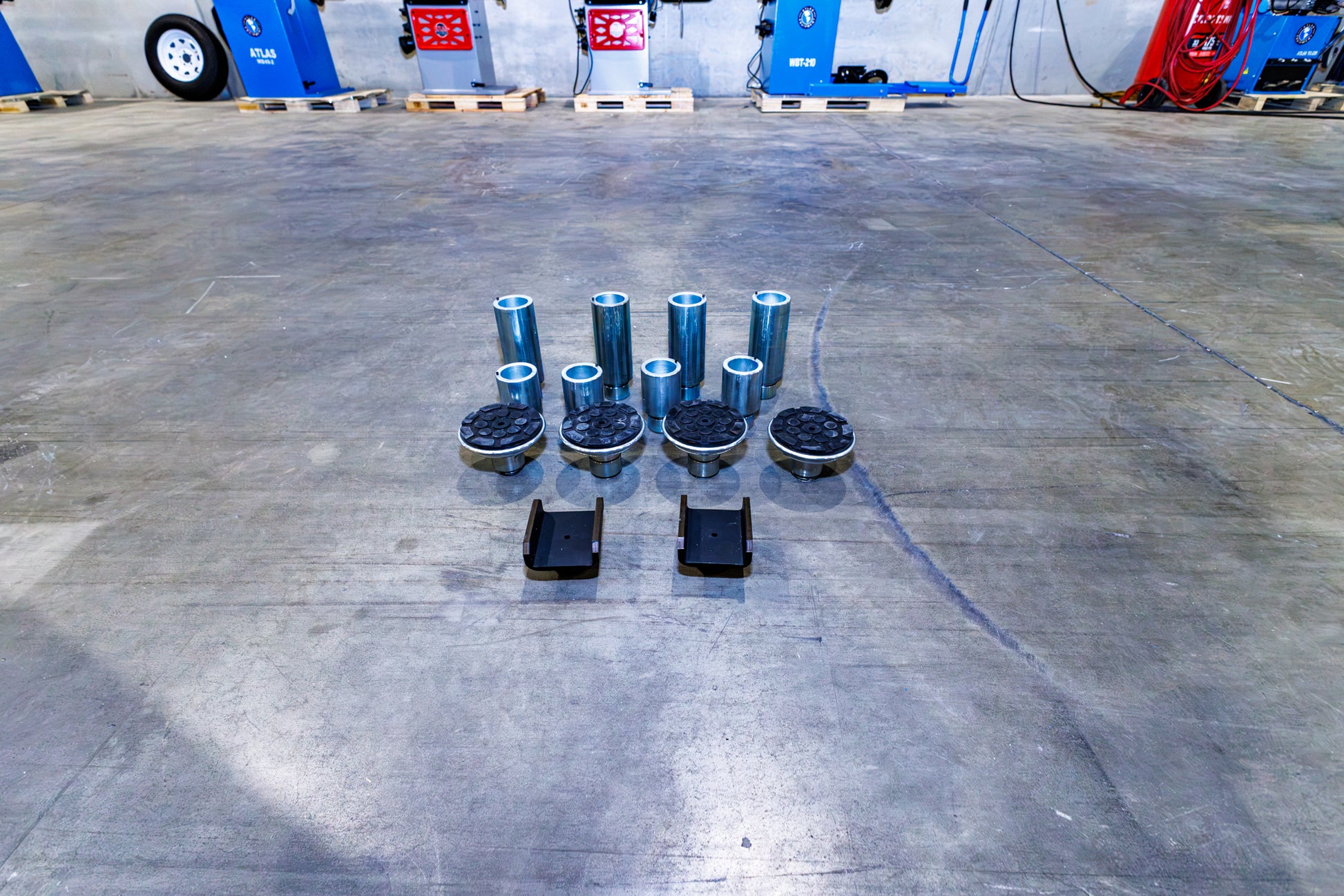

The PVL10 comes with double screw rubber/metal adapters, 3" and 6" truck height extensions, protective rubber carriage pads, and rubber column guards. It's powered by an ALLY Hydraulic AL2850 power unit certified by MET Laboratories for electrical compliance in the US and Canada. Standard overall height is 11' 7 7/8", or 11' 3 7/8" with the optional low-height cables. It runs on 220V single-phase power with a 30 amp breaker.
Don't need ALI certification? The PV10PX offers 10,000 lb. capacity at a lower price. For more capacity, see the 12,000 lb. PV12PX-3. See them in our Daleville, Indiana showroom, or call 765-723-6523 to talk with a lift specialist.
Specs and Dimensions
Capacity
10,000 lbs.
Overall Height
139 7/8" (11' 7 7/8")
Special Low Height
135 7/8" (11' 3 7/8")*
Optional Height Extension Kit
Adds 2 ft overall height (sold separately)
Maximum Lift Height (Without Adapters)
72 1/2"
Maximum Lift Height (With Adapters)
81 1/2"
Minimum Arm Height
4"
Shipping Weight
1,850 lbs.
Overall Width
139" Asymmetric / 137 1/2" Symmetric
Outside Column to Outside Column
130" Asymmetric / 129 1/4" Symmetric
Inside Column Width
107 3/4" Asymmetric / 112 1/2" Symmetric
Drive Thru Width
91" Asymmetric / 99 1/2" Symmetric
Column Size
7" x 10 1/4"
Base of Lift
15" x 18"
Motor / Electrical Requirement
220 Volt Single Phase (30 AMP Breaker Recommended)
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)
Adapter Heights
4 Each 3", 6"
Arm Hole / Adapter Peg Size
2"
Concrete Requirement
Minimum 4" Thick, 3000 PSI Concrete
Low Height Configuration
Requires Optional Extra Cables (Sold Separately)
Questions before you buy
Symmetric or asymmetric: which setup do I need?
How tall does my ceiling need to be?
How thick does my concrete need to be?
What kind of power does it need?
What comes with it?
What's the warranty?
Largest Automotive Equipment Showroom
Visit Our Showroom
See It Before You Buy It
See it before you buy it
Most products shown on our website can be seen in person at our huge showroom in Indiana. It's the largest showroom in the region, and there's nothing quite like seeing our products up close. Whether you're browsing or ready to buy, we make it easy and enjoyable. Bring a trailer and come visit us!
50,000+
Sq ft of equipment
sq ft
50+
Products on display
on display
100+
Years of industry experience
yrs experience
9175 S. Innovation Drive, Daleville, IN 47334
· Open in Maps →
No pressure
Browse at your own pace
Open 6 days a week
Mon–Fri 8am–5pm, Sat 8am–Noon
Expert staff on floor
Product demos available
Bring a trailer
Take your purchase home same day

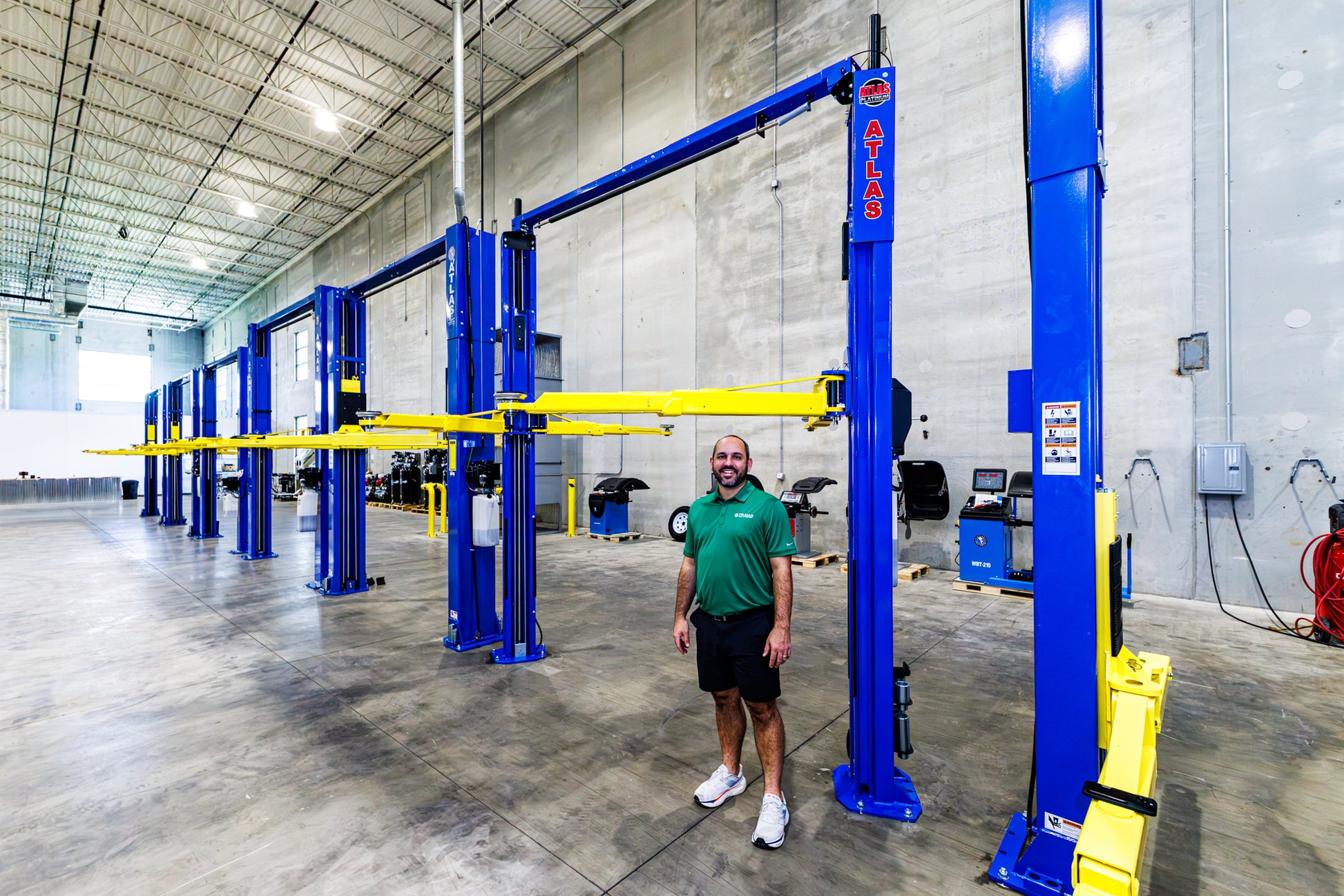

50,000 SQ FT
Our showroom floor in Daleville, IN
J
Very nice lift, especially for the price. Grant & the crew were awesome, made the purchase easy & fast.
As for the lift itself, seems very well made. Installing it was fairly easy, but the included instructions I found to be confusing & kinda generic. Had to do a little internet research to get clarification on a couple things then all went well. The only thing I could recommend as an improvement would be a little more finish protection in packaging or atleast some touch up paint as there was a couple rub spots on the post & a couple major areas on the lift arms. Guess that should be expected from overseas transport of such a large item
All in all, very pleased with my purchase! Thanks to Grant & the team, we were able to get back in business quickly
L
The Atlas PVL 10000 looks and performs great. The install was a little dicey. The safety hook assembly would not fit,I have 25 years as Maintenance Mechanic I assembled it correctly. I measured the two brackets that are welded onto the post of the lift and they were .025 two narrow in other words they just weld them with too small of a gap. So in order to assemble the safety hooks, I had to mill .015 a side off of the safety hook to get the assembly to go together. It fits now and works correctly.
The next problem I had was the slots for the hydraulic pump and bracket was too small for the bolts they sent so I had to drill the slots in the bracket and the slots in the motor bracket out to accept a 10 mm bolt other than that everything went together relatively easy.
A
Thanks guys for everything you did to make my shop ready to start
c
great hoists, great company and people to work with
