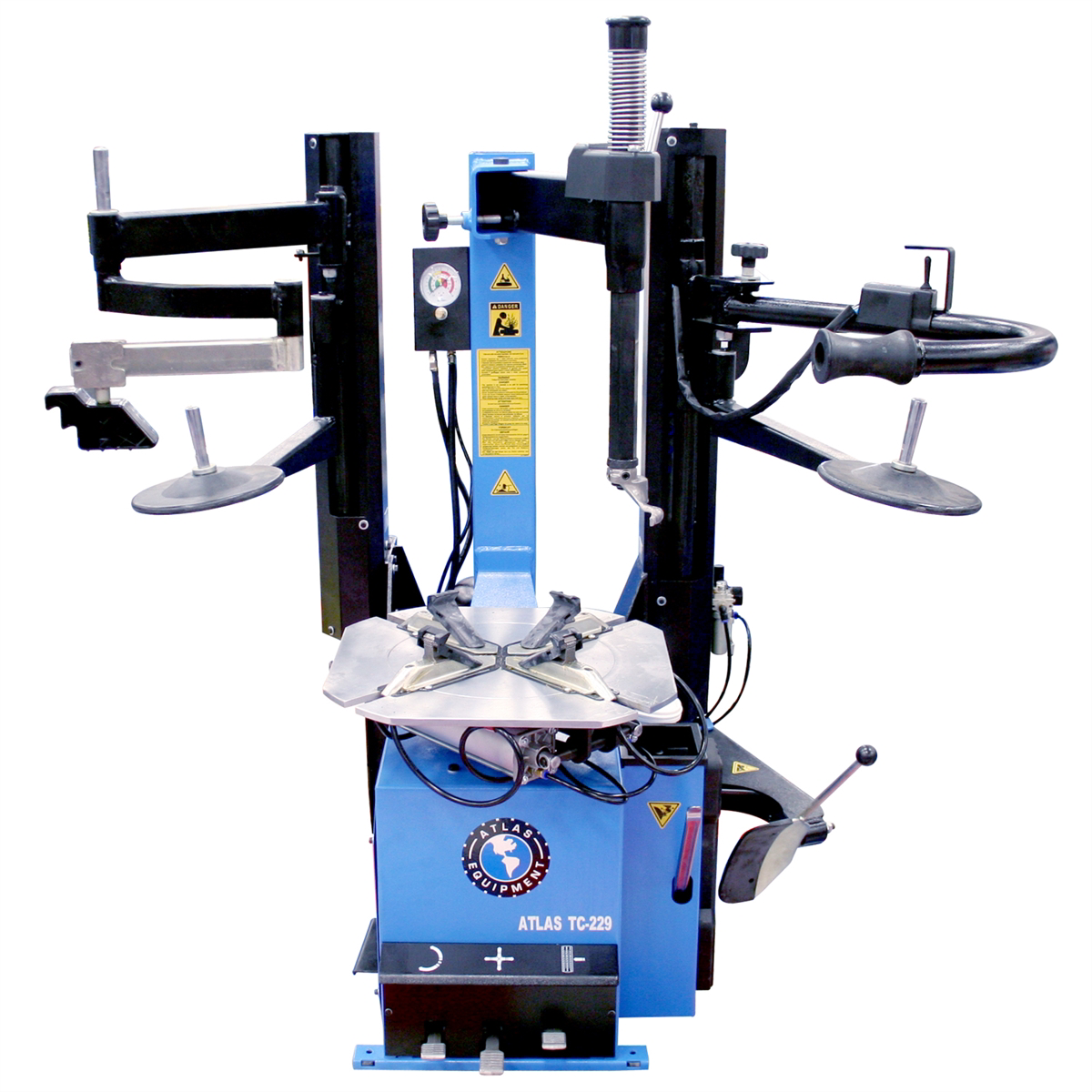

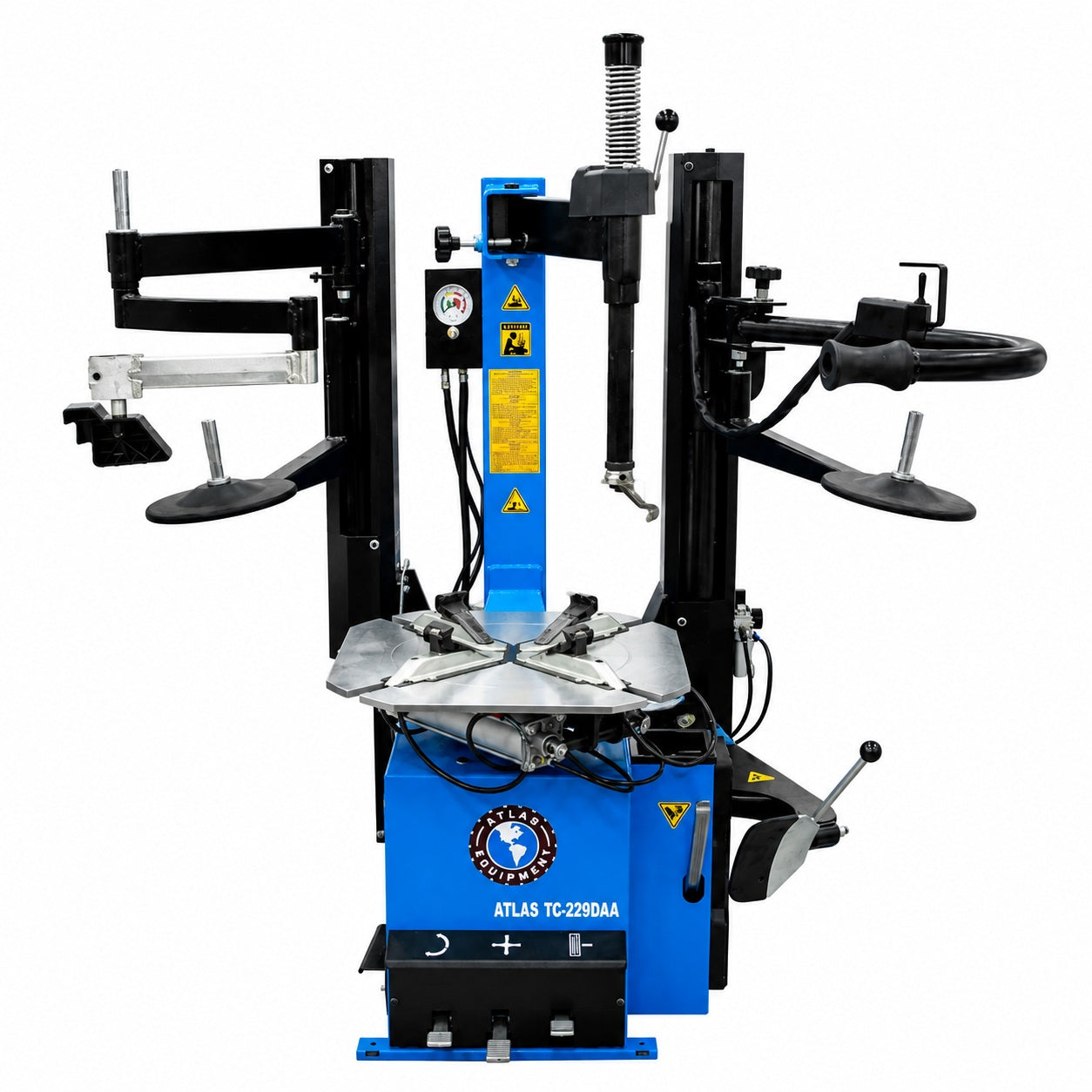

Atlas TC229DAA Rim-Clamp Tire Changer with Dual Assist Arms

Atlas TC229DAA Rim-Clamp Tire Changer with Dual Assist Arms

Professional tire changer with dual assist arms, bead blaster system, and advanced low-profile tire handling

SKU: ATETC229DAA

Regular price $4,199
Sale price $4,199 Regular price
IN STOCK
Shipping calculated at checkout.
Quantity
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

Talk to a Pro
3 experts online now · avg. reply <2 min
  • Largest Showroom in the Midwest
  • Our Team has 100+ Years of Experience
  • Fast Nationwide Shipping
  • Real People Ready to Help
View full details

Key Highlights

Dual Assist Arms Included
Ideal for run-flat and low-profile tires
Built-In Bead Blaster
Faster inflation of stubborn tires
Professional Tire Handling
Extra support during mounting and demounting
Powerful Bead Breaker
5,500 lb force for tough beads
Rim Protection System
Safe for alloy and steel wheels
Compact Shop Solution
Perfect for garages and tire shops

The Atlas TC229DAA rim clamp, swing arm tire changer is the perfect machine for homeowners, a small commercial garage or an ATV/Motorcycle dealer. This version of the TC229 comes with the Atlas DAA-SA dual assist arm package, made up of a left hand mounted arm with a pressing block and pressing/lifting disk and a right hand mounted arm with a pressing/lifting disk and bead roller. The dual assist arms are a necessary tool if you will be changing a high number of stiff sidewall, low profile, runflat style tires. The DAA acts as an extra set of hands saving a single user time and effort. The TC229 also features the added built in "Beadblaster" system. The "Beadblaster" system helps inflate stiff sidewall or other "hard to inflate" tires. If you are plan on changing larger pickup truck (1 ton), large SUV, or agricultural tires (either now or in the future), you may want to consider the Atlas TC289 tire changer. The Atlas wheel clamp tire changers are designed to change the tires on both high priced alloy wheels and steel wheels without damaging the rim or the tire. The powerful bead breaker located on the side of the machine is designed to break even the most stubborn and rusted beads without damage to the rim. The turntable jaws (which can be covered with plastic covers) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slide of the turntable to either increase or decrease the clamping range, and to handle the widest variety of tires. The Atlas TC229DAA requires some assembly after purchase.

  • Rim clamp swing arm tire changer
  • Dual assist arm package included
  • Built-in bead blaster system
  • Air-operated jaws and bead breaker
  • Electric turntable operation
  • Adjustable jaws with three positions
  • Metal mount/demount head
  • Inflator box with pressure gauge
  • Filter, regulator and lubricator included
  • Plastic jaw covers included
  • Supports rims up to 25 1/4 inches
  • Maximum tire diameter: 39 inches
  • Ideal for low-profile and run-flat tires
  • Motorcycle and ATV adapters available
  • 110V operation
  • 1-year parts warranty
Capacity & Tire Specifications
Maximum Tire Diameter 39 inches
Maximum Wheel Width 13 inches
External Rim Capacity 9 3/4" - 23 1/4"
Internal Rim Capacity 11 5/8" - 25 1/4"
Supported Rim Types Steel, Aluminum, Alloy
Performance
Table Motor 1 HP
Turntable Torque 885 ft/lbs
Bead Breaker Force 5,500 lbs.
Bead Blaster Built-In
Assist System Dual Assist Arms Included
Power & Requirements
Air Requirement 90-110 PSI (Max 140 PSI)
Operating Voltage 110 Volt
Shipping Weight 850 lbs.
Warranty 1 Year Parts Only
