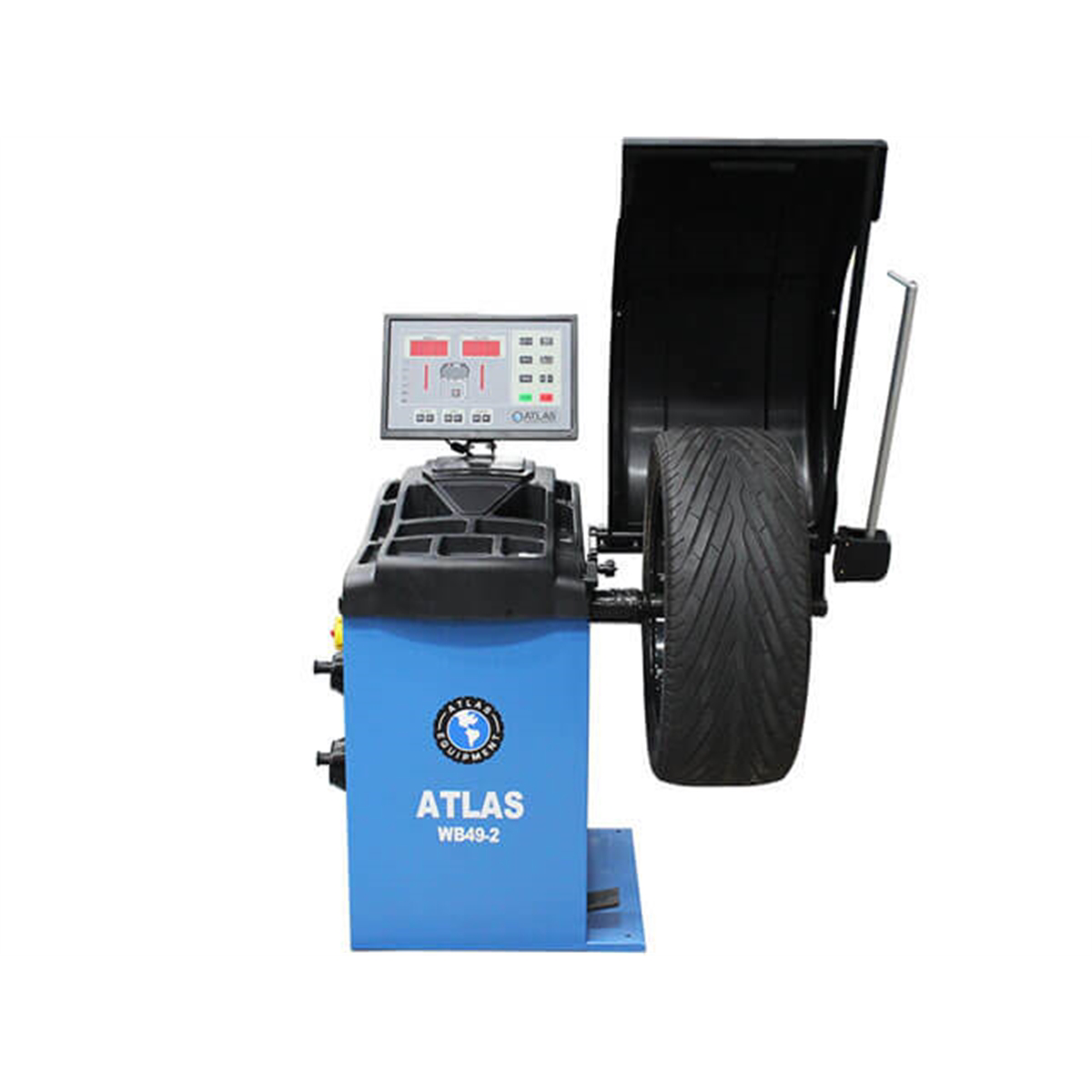

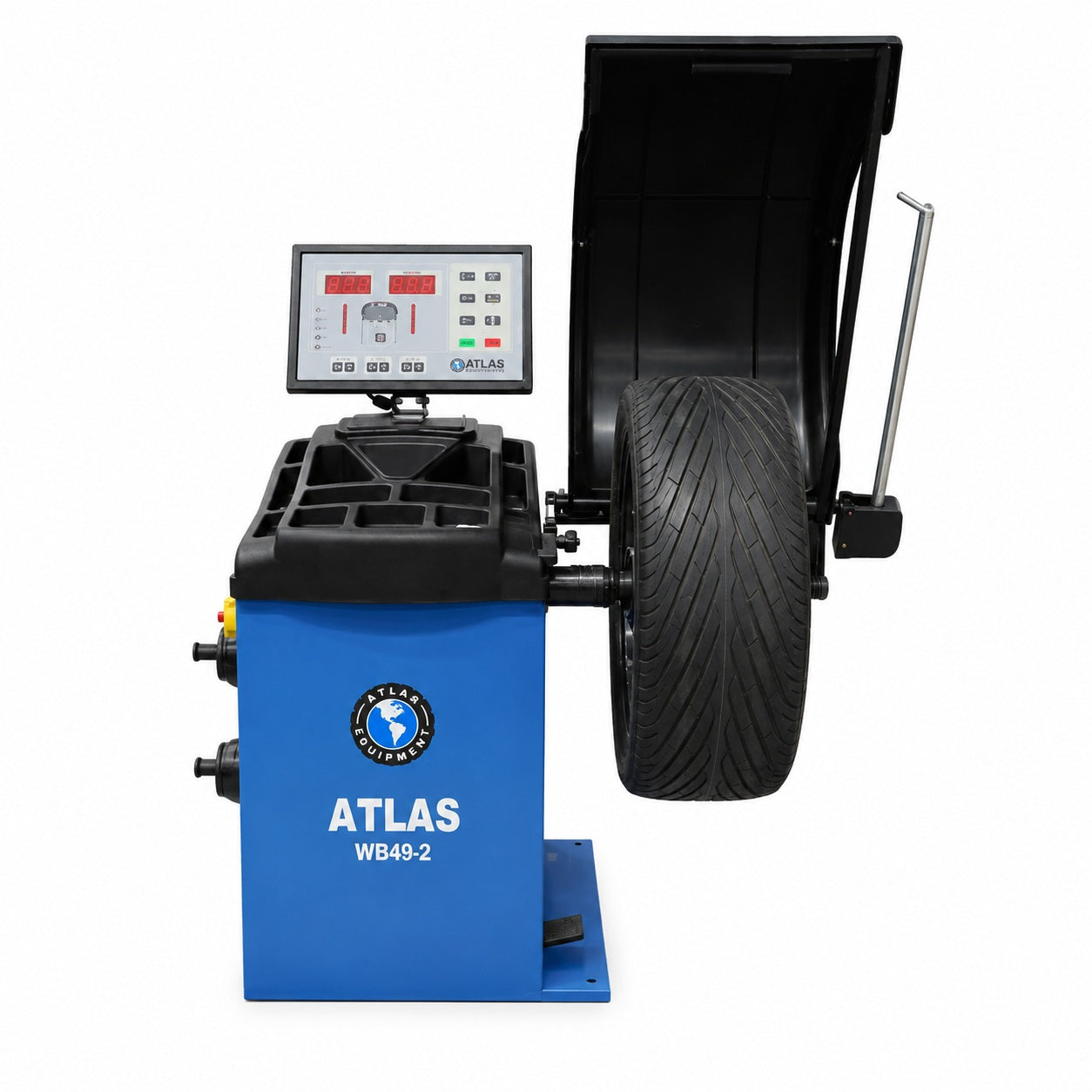

Atlas WB49-2 PRO Premium 3D Computer Wheel Balancer
Atlas WB49-2 PRO Premium 3D Computer Wheel Balancer
Premium 3D wheel balancer that measures offset, diameter, and width automatically.
Regular price
$2,649
Sale price
$2,649
Regular price
SKU: ATEATWB49-2-PRO
Talk to an expert before you buy
Questions on fit, ceiling height or install? We'll help you pick the right one.
Same-day pickup at our Indiana showroom. See it in person, and we'll load it for you. Open Mon–Sat.
Included free with this product
Quantity
Couldn't load pickup availability
Why buy from Truman
Free pickup
Indiana
Nationwide
Fast shipping
Local installer
Referrals
Largest showroomShowroom
In the countryLargest in the US
100+ years
Of experience
Real people
Ready to help
Why This Machine
- Automatic 3D data entryOffset, diameter, and width measured for you
- Split-weight functionHide weights behind the spokes
- LED rim lightLights up the inside of the wheel
- Fix it yourselfSelf-diagnosing with error codes
Product Description
The Atlas WB49-2 PRO takes the WB49-2 and adds a gauge that automatically measures rim width, so all three dimensions (offset, diameter, and width) are entered for you. That means faster setup and fewer entry mistakes on every wheel.
It keeps the WB49-2's split-weight function, automatic LED rim light, LED display, raised screen, and larger weight tray, along with self-diagnosis and error codes for in-shop repairs.
It balances rims from 10" to 32" and wheels up to 150 lbs., with 1-gram accuracy on a 40mm shaft. Four cones for center holes from 1.75" to 5.18" are included, and the optional Light Truck Adapter Kit handles larger center holes and offset wheels. It runs on 110V power.
Want Italian-engineered Platinum components and a 7-second cycle? See the Atlas Platinum PWB50. See them in our Daleville, Indiana showroom, or call 765-723-6523 to talk with a wheel service specialist.
Specs and Dimensions
Maximum Tire Diameter
39"
Rim Size Range
10" - 32"
Rim Width Range
1 1/2" - 20"
Maximum Wheel Weight
150 lbs.
Balancing Speed
150 RPM
Accuracy
1 Gram
Weight Position Resolution
1.4 Degrees
Self Calibration
Yes
Shaft Size
40 mm
Motor
1/4 HP
Power Supply
110 Volt
Shipping Weight
400 lbs.
Add a Wheel Balancer and Save
Package pricing availableBuying a tire changer and wheel balancer together? We offer package pricing. These tire changers are a great match for this machine.

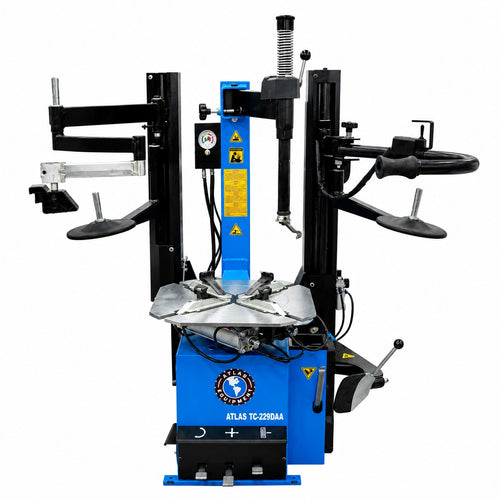

Atlas TC229DAA Rim-Clamp Tire Changer with Dual Assist Arms
Rim-clamp tire changer with dual assist arms and Beadblaster for low-profile and run-flat tires.
$4,199.00
View details

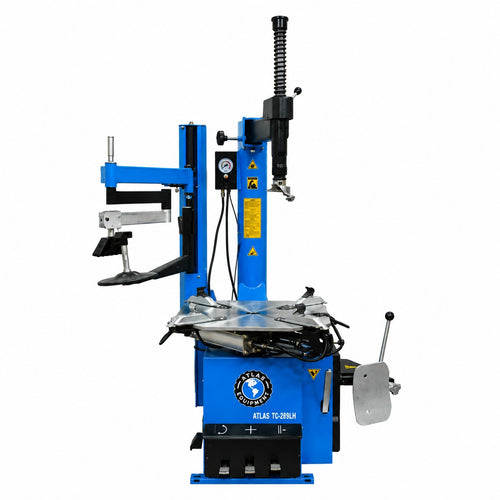

Atlas TC289LH Extra Large Rim-Clamp Tire Changer
