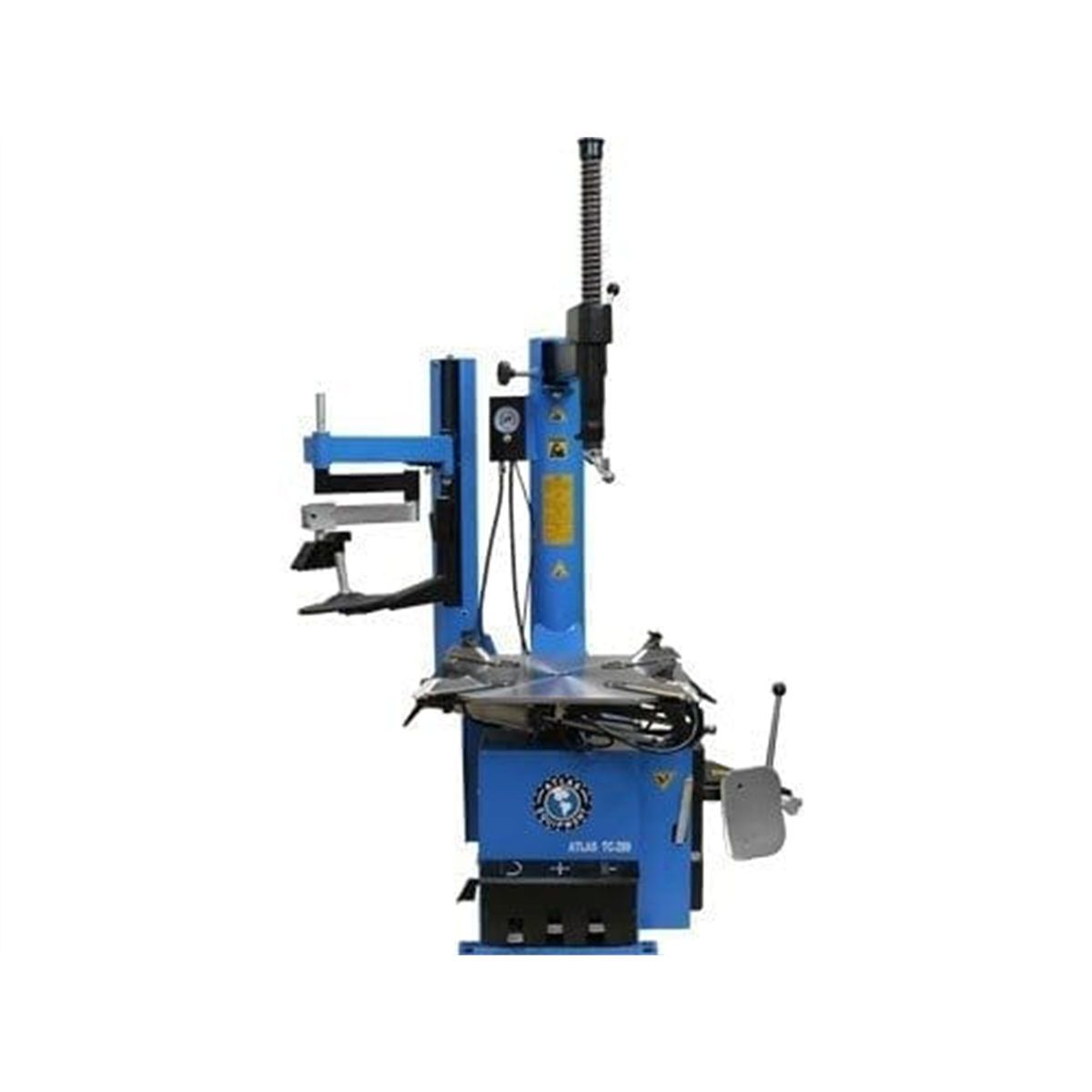

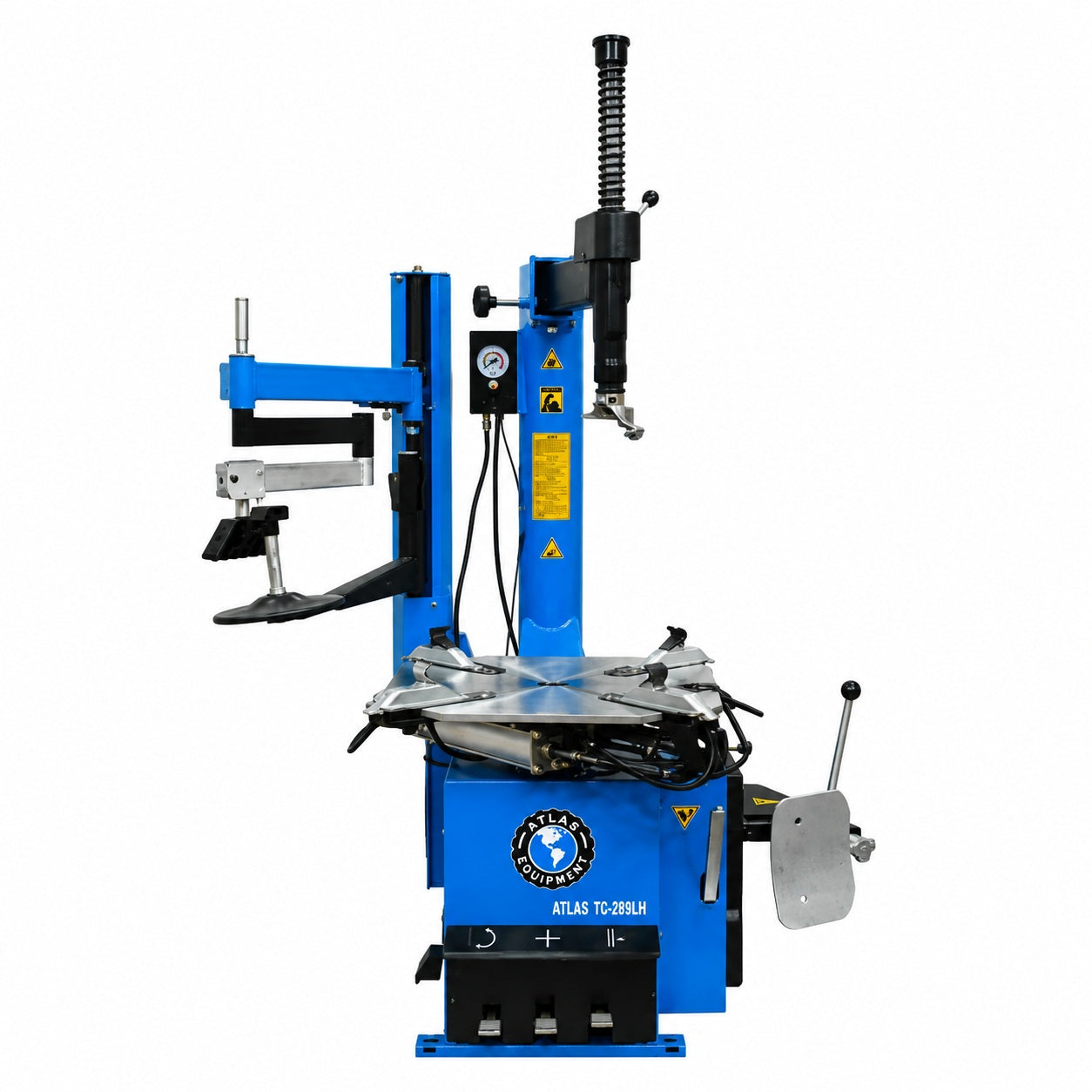

Atlas TC289LH Extra Large Rim-Clamp Tire Changer

Atlas TC289LH Extra Large Rim-Clamp Tire Changer

Heavy-duty tire changer with left assist arm, extra-large turntable, and built-in bead blaster

SKU: ATETC289LH

Regular price $3,899
Sale price $3,899 Regular price
IN STOCK
Shipping calculated at checkout.
Quantity
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

Talk to a Pro
3 experts online now · avg. reply <2 min
  • Largest Showroom in the Midwest
  • Our Team has 100+ Years of Experience
  • Fast Nationwide Shipping
  • Real People Ready to Help
View full details

Key Highlights

Large Wheel Capacity
Handles tires up to 47" diameter
Left Assist Arm Included
Ideal for low-profile tires
Built-In Bead Blaster
Faster inflation of stubborn tires
Extra-Large Turntable
Added workspace & clearance
Adjustable Bead Breaker
Improved versatility and control
Professional Grade
Ideal for tire shops and dealerships

    The Atlas TC289LH rim clamp, swing arm tire changer is the perfect machine for most general automotive serivce departments and medium sized tire stores. The TC289 is also great for farm use and "Mr. Homeowner" looking to do larger tires.. This version of the TC289 comes with the Atlas LHA or "Left Hand Assist" arm. The LHA is a valuable tool in changing stiff sidewall, low profile style tires. It also acts as an extra set of hands saving a single user time and effort. The Atlas TC289LH machine features the biggest turntable and most clearance to handle the biggest diameter tires, and is perfect for changing the tires on large SUV's and one ton trucks. The TC289 features a built in "Beadblaster" system. The "Beadblaster" system helps inflate stiff sidewall or other "hard to inflate" tires. The Atlas wheel clamp tire changers are designed to change the tires on both high priced alloy wheels and steel wheels without damaging the rim or the tire. The Atlas TC289 has a powerful ADJUSTABLE bead breaker located on the side of the machine which is designed to break even the most stubborn and rusted beads without damage to the rim. The turntable jaws (which can be covered with plastic covers) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slide of the turntable to either increase or decrease the clamping range, and to handle the widest variety of tires. The Atlas TC289LH requires some assembly after purchase.

    • Large rim clamp swing arm tire changer
    • Extra-large turntable for oversized wheels
    • Left hand assist arm included
    • Built-in bead blaster system
    • Air-operated jaws and bead breaker
    • Adjustable bead breaker plate
    • Electric turntable operation
    • Adjustable jaws with three positions
    • Metal mount/demount head
    • Inflator box with pressure gauge
    • Filter, regulator and lubricator included
    • Plastic jaw covers included
    • Supports rims up to 28 inches
    • Maximum tire diameter: 47 inches
    • 110V operation
    • 1-year parts warranty
    Capacity & Tire Specifications
    Maximum Tire Diameter 47 inches
    Maximum Wheel Width 18 inches
    External Rim Capacity 11 7/8" - 28"
    Internal Rim Capacity 13 7/8" - 29 7/8"
    Supported Rim Types Steel, Aluminum, Alloy
    Performance
    Table Motor 1 HP
    Turntable Torque 885 ft/lbs
    Bead Breaker Force 5,500 lbs.
    Bead Blaster Built-In
    Assist Arm Left Hand Assist Arm Included
    Power & Requirements
    Air Requirement 90-110 PSI (Max 140 PSI)
    Operating Voltage 110 Volt
    Shipping Weight 800 lbs.
    Warranty 1 Year Parts Only
