Wheel Balancer

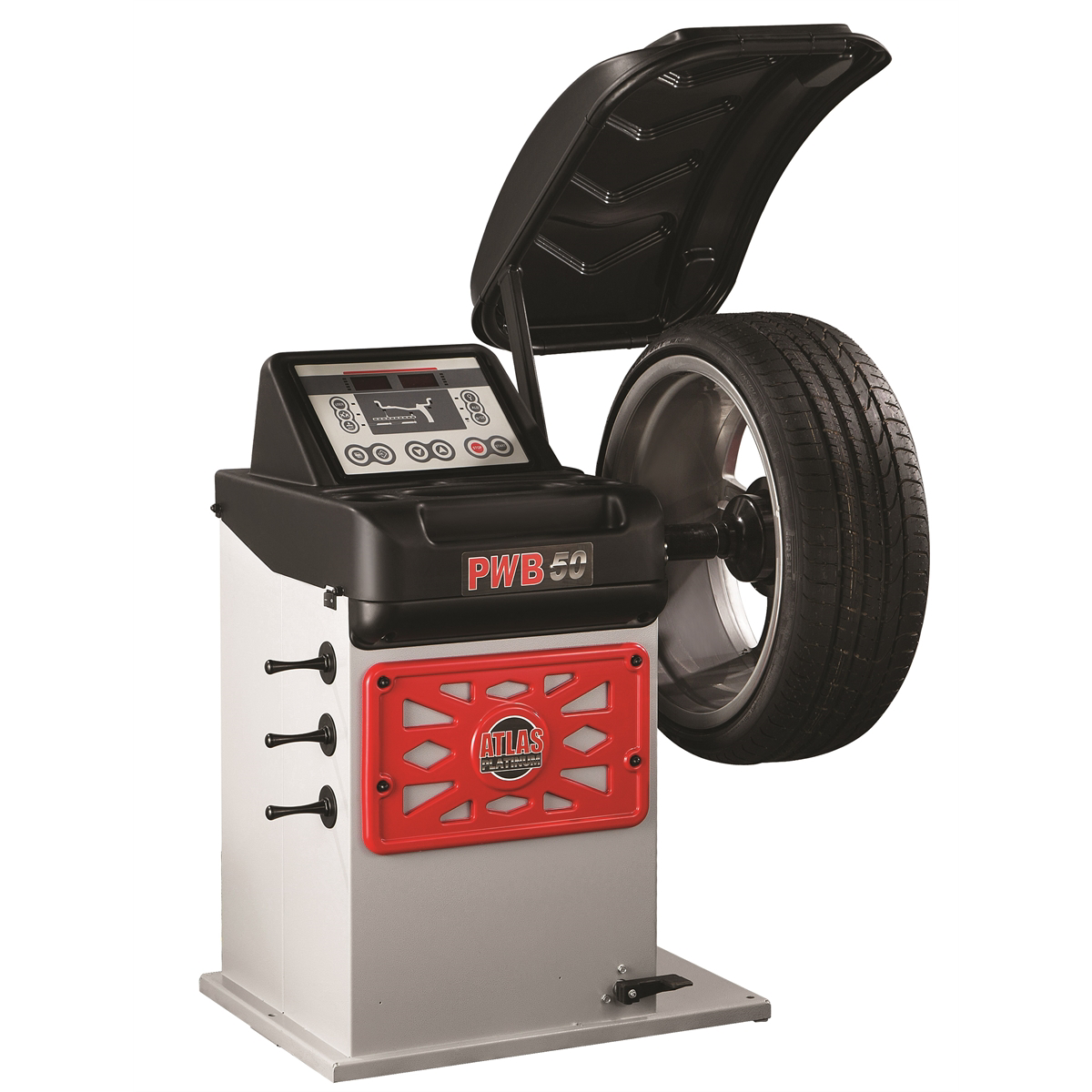

Atlas PWB50 Premium 2D Computer Wheel Balancer
Atlas PWB50 Premium 2D Computer Wheel Balancer
Italian-engineered wheel balancer with automatic 2D data entry and advanced weight placement functions
SKU: ATEAP-PWB50-110V
Regular price
$3,299
Sale price
$3,299
Regular price
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Talk to a Pro
3 experts online now · avg. reply <2 min
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
Automatic 2D Data Entry
Fast and accurate wheel measurements
Italian Engineering
Premium components and construction
Optimatch Technology
Improves balancing of difficult wheel assemblies
FES Split Function
Easily hides weights behind spokes
OPF Weight Placement
Convenient adhesive weight positioning
High Accuracy Balancing
Precise to within 1 gram
The Atlas Platinum PWB50 is an electronic wheel balancer with an easy to read LED display and that offers Automatic 2D Data Entry via a single data entry gauge. Whilst there are a multitude of ALU weight placement configurations, the weight placement arm actually enables the operator to choose the most convenient position for the weights, and the machine will guide the operator back to that exact position after the spin cycle, ensuring accurate dynamic adhesive weight application. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows an operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB50 via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient. The Atlas Platinum PWB50 is a feature packed, high volume passenger vehicle wheel balancer that guarantees speed, accuracy, and a long life by combining Italian engineering and components with the Factory Direct Value that Atlas is known for around the World.
- Platinum computer controlled motorized spin balancer
- Italian engineering and components
- Automatic 2D data entry
- Automatic and pedal operated brake
- Automatic start/stop hood operation
- Static and dynamic balancing modes
- Optimatch balancing function
- FES split-weight function
- OPF opposite position function
- Special ALU-S and ALU programs
- NWN (No Wheel Need) system
- Self-diagnosing operation
- Self-calibrating system
- USB port for firmware updates
- Displays in grams/ounces and mm/inches
- No anchor-down installation required
- Includes quick-release nut, cones, pliers and calipers
- Replacement Parts & Wear Items Always in Stock
- 2 Year Parts Only Warranty
Wheel Capacity
| Maximum Tire Diameter | 43" |
| Rim Size Range | 10" - 30" |
| Rim Width Range | 1 1/2" - 20" |
| Maximum Wheel Weight | 165 lbs. |
Performance
| Balancing Speed | 130 RPM |
| Cycle Time | 7 Seconds |
| Accuracy | 1 Gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
Technical Specifications
| Data Entry | Automatic 2D |
| Shaft Size | 40 mm |
| Power Supply | 110 Volt |
| Shipping Weight | 230 lbs. |
