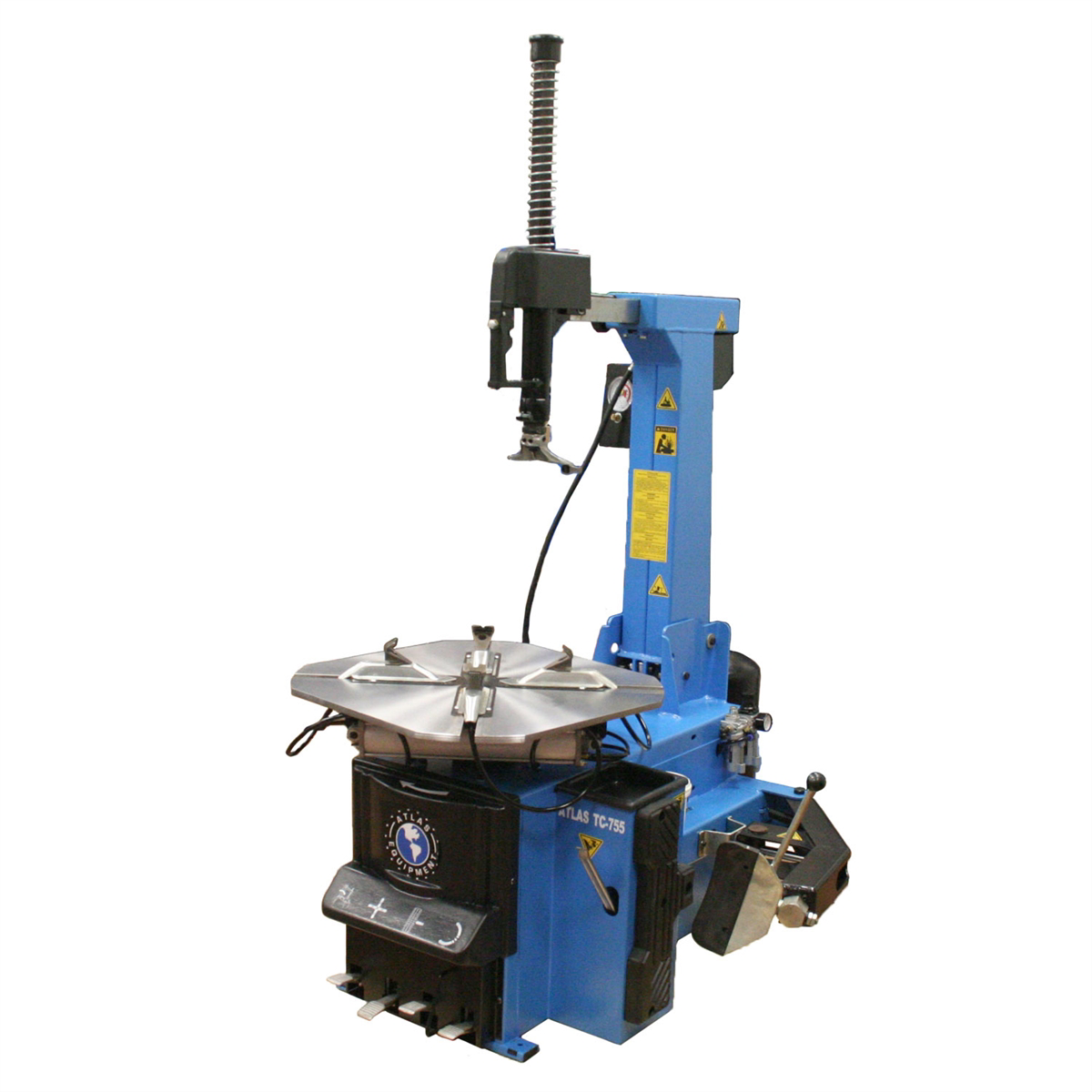

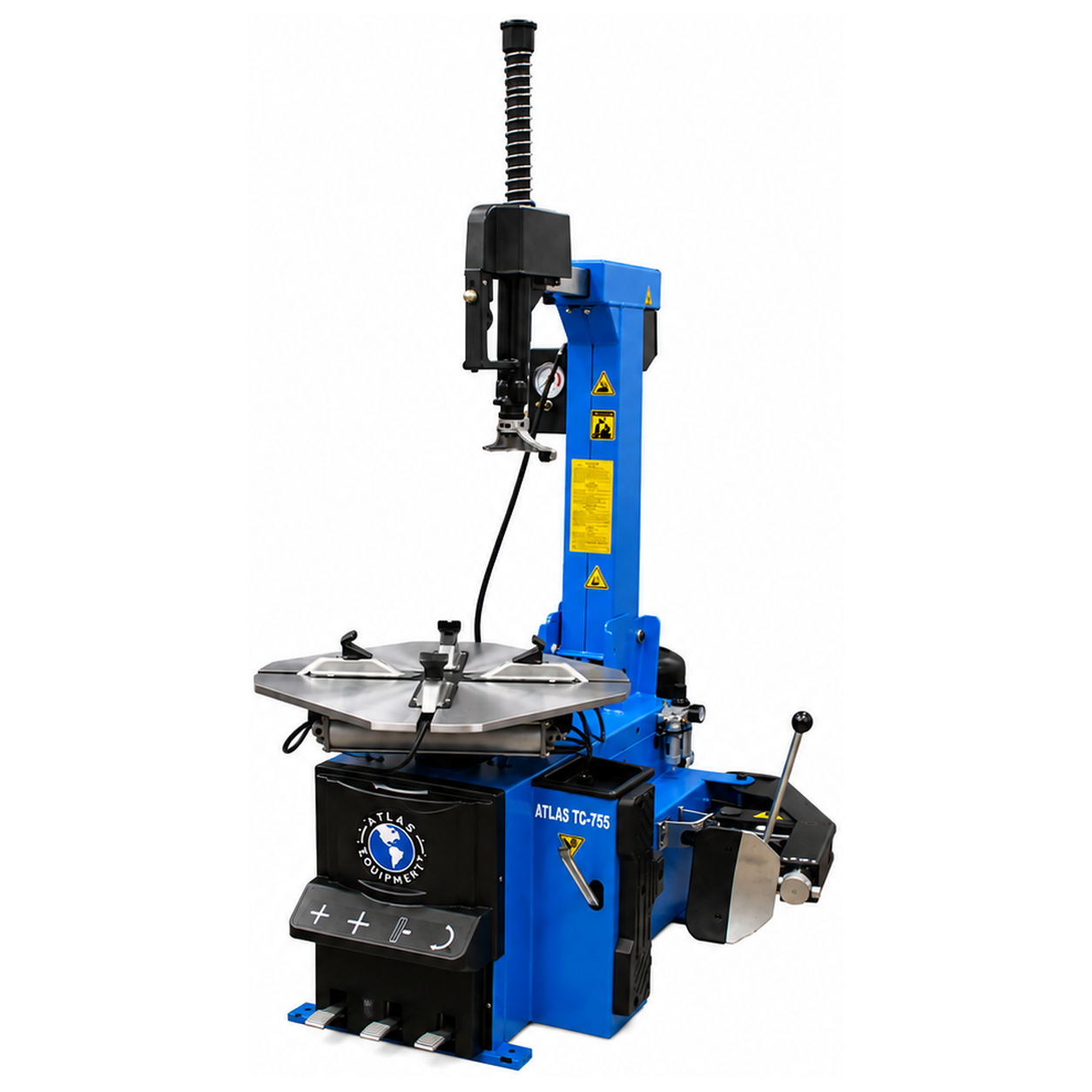

Atlas TC755 Tilt-Back Rim-Clamp Tire Changer with Beadblaster

Atlas TC755 Tilt-Back Rim-Clamp Tire Changer with Beadblaster

Professional tilt-back tire changer with extra-large turntable, bead blaster system, and 28" rim capacity

SKU: ATEATTC755

Regular price $3,699
Sale price $3,699 Regular price
IN STOCK
Shipping calculated at checkout.
Quantity
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

Talk to a Pro
3 experts online now · avg. reply <2 min
  • Largest Showroom in the Midwest
  • Our Team has 100+ Years of Experience
  • Fast Nationwide Shipping
  • Real People Ready to Help
View full details

Key Highlights

Tilt-Back Column Design
Fast and easy tire positioning
Extra-Large Turntable
Added workspace & clearance
Built-In Bead Blaster
Faster inflation of stubborn tires
Professional Grade
Ideal for tire shops and dealerships
Powerful Bead Breaker
5,500 lb force for tough beads
Rim Protection System
Safe for alloy and steel wheels

The Atlas TC755 is a "professional tire dealer" or "large car dealership" tilt-back style rim clamp tire changer. The foot operated Tilt-Back column feature allows the user to quickly and easily mount and un-mount tires from the table without worrying about moving an arm or hitting the column. With the tilt back feature the TC755 also has a pneumatic locking mount/demount head which greatly lowers the risk of the head moving during use and possibly damaging the rim or tire. The TC755 comes standard with an extra large turntable which means it can "clamp" most 26 inch chrome rims without the need for adapters. Customers looking to maximize the Atlas TC755 for their shop should consider purchasing and adding either the E-Z Assist Arm or Dual Assist Arm Package. Atlas TC755 features a built in "Beadblaster" system. The "Beadblaster" system helps inflate stiff sidewall or other "hard to inflate" tires. The TC755 also has a powerful hand controlled bead breaker located on the side of the machine which is designed to break even the most stubborn and rusted beads without damage to the rim. The turntable jaws (which can be covered with plastic covers) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slide of the turntable to either increase or decrease the clamping range, and to handle the widest variety of tires. The Atlas TC755 requires some assembly after purchase.


  • Tilt-back column tire changer
  • Rim-clamp style design
  • Extra-large turntable for larger wheels
  • Built-in bead blaster system
  • Air-operated jaws and bead breaker
  • Button-controlled bead breaker
  • Electric turntable operation
  • Adjustable jaws with three positions
  • Metal mount/demount head
  • Inflator box with pressure gauge
  • Filter, regulator and lubricator included
  • Plastic jaw covers included
  • Supports rims up to 28 inches
  • Maximum tire diameter: 47 inches
  • 110V operation
  • 1-year parts warranty
Capacity & Tire Specifications
Maximum Tire Diameter 47 inches
Maximum Wheel Width 18 inches
External Rim Capacity 11 7/8" - 28"
Internal Rim Capacity 13 7/8" - 29 7/8"
Supported Rim Types Steel, Aluminum, Alloy
Performance
Table Motor 1 HP
Turntable Torque 885 ft/lbs
Bead Breaker Force 5,500 lbs.
Bead Blaster Built-In
Column Type Tilt-Back
Power & Requirements
Air Requirement 90-110 PSI (Max 140 PSI)
Operating Voltage 110 Volt
Shipping Weight 650 lbs.
Warranty 1 Year Parts Only
