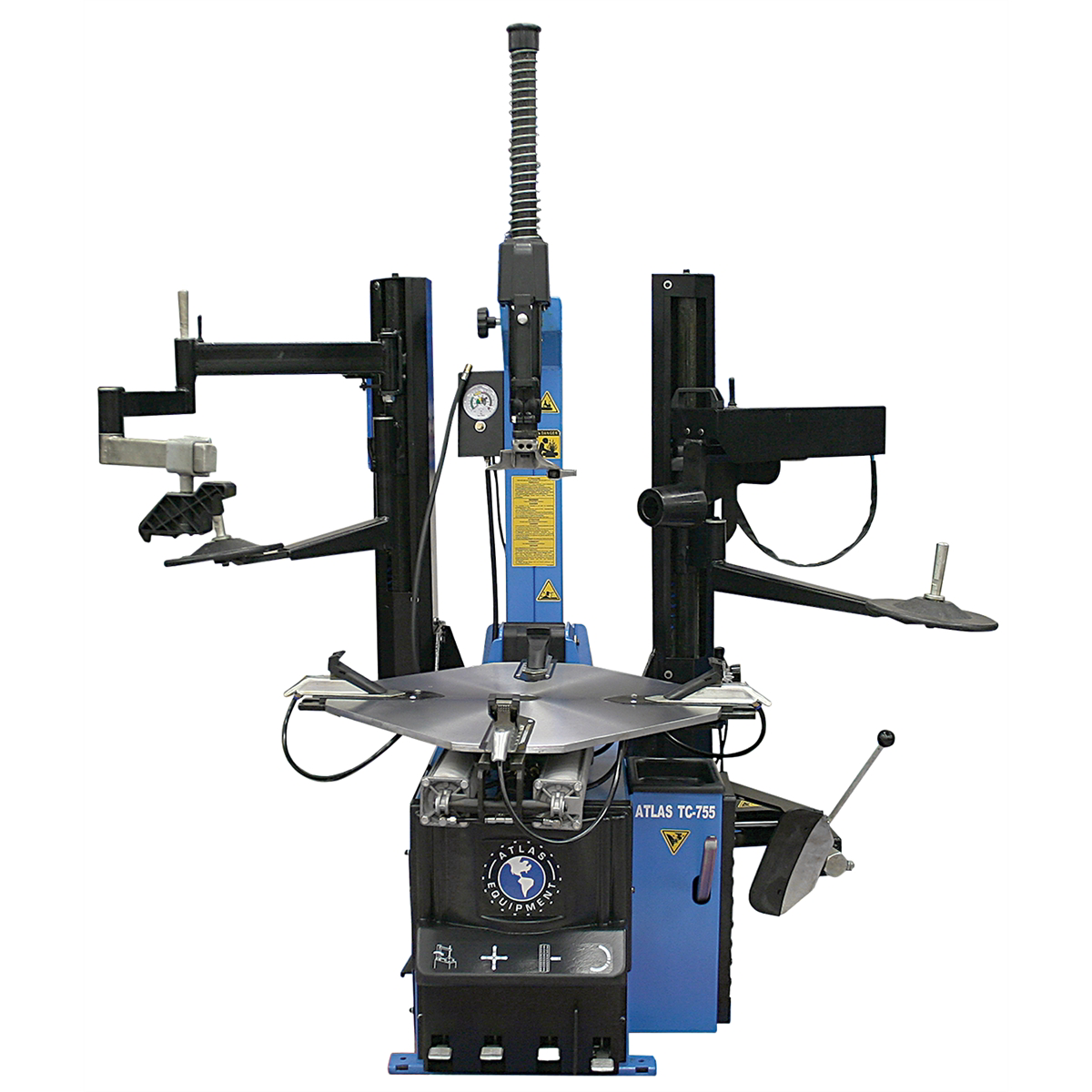

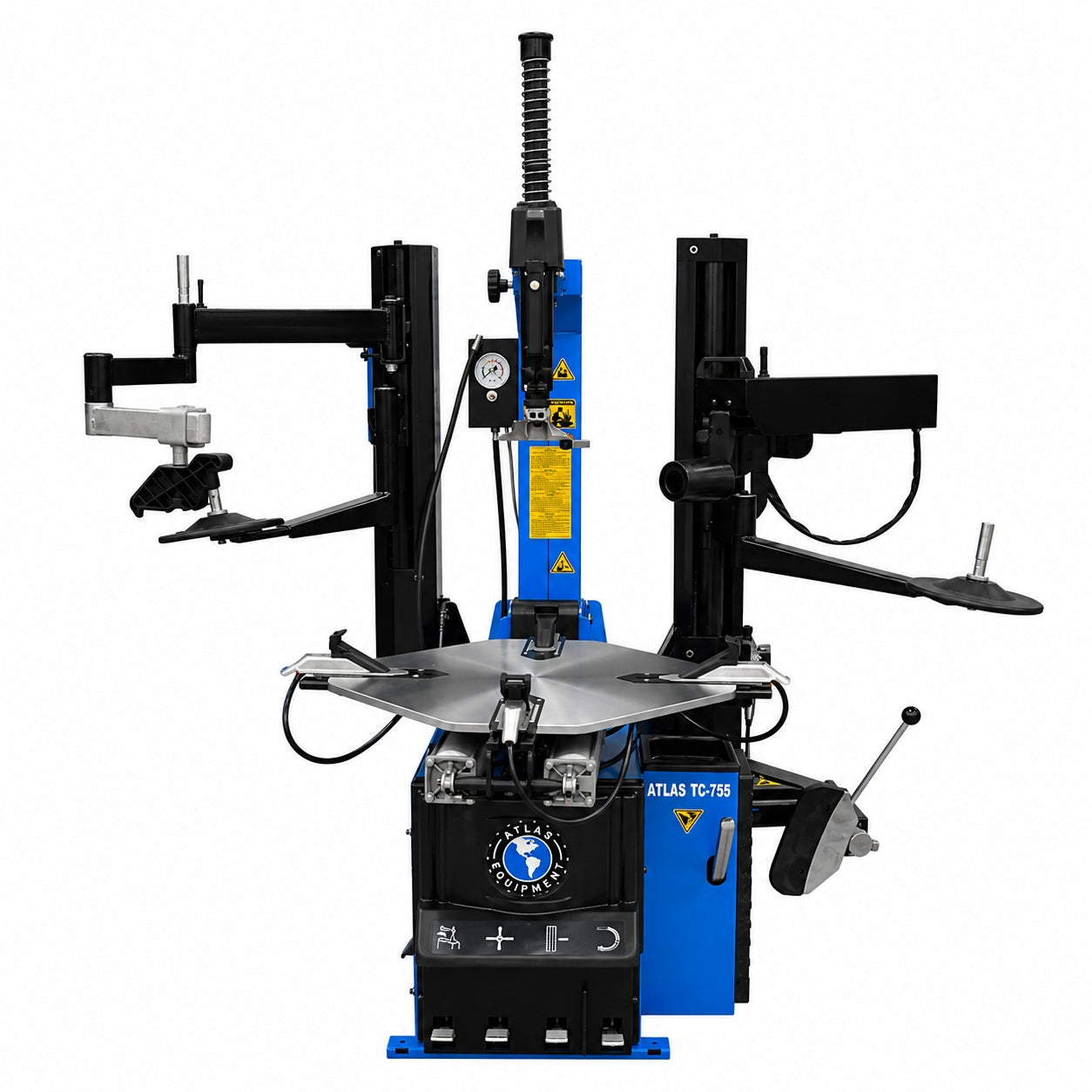

Atlas TC755DAA Wheel Clamp Tire Changer with Dual Arm Assist

Atlas TC755DAA Wheel Clamp Tire Changer with Dual Arm Assist

Professional tilt-back tire changer with dual assist arms and extra-large 28" rim capacity

SKU: ATETC755DAA

Regular price $5,399
Sale price $5,399 Regular price
IN STOCK
Shipping calculated at checkout.
Quantity
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

Talk to a Pro
3 experts online now · avg. reply <2 min
  • Largest Showroom in the Midwest
  • Our Team has 100+ Years of Experience
  • Fast Nationwide Shipping
  • Real People Ready to Help
View full details

Key Highlights

Dual Assist Arms Included
Ideal for run-flat and low-profile tires
Tilt-Back Column Design
Fast and easy tire positioning
Built-In Beadblaster
Quick bead inflation
Large Rim Capacity
Handles rims up to 29 7/8"
Extra-Large Turntable
Added workspace & clearance
Commercial Grade
Designed for daily use

The Atlas TC755DAA is a "professional tire dealer" or "large car dealership" tilt-back style rim clamp tire changer. This version of the Atlas TC755 comes with the Atlas DAA-T dual assist arm package, made up of a left hand mounted arm with a pressing block and pressing/lifting disk and a right hand mounted arm with a pressing/lifting disk and bead roller. The dual assist arms are a necessary tool if you will be changing a high number of stiff sidewall, low profile, runflat style tires. The DAA acts as an extra set of hands saving a single user time and effort. The Atlas TC755DAA features a foot operated Tilt-Back column allowing the user to quickly and easily mount and un-mount tires from the table without worrying about moving an arm or hitting the column. With the tilt back feature the TC755 also has a pneumatic locking mount/demount head which greatly lowers the risk of the head moving during use and possibly damaging the rim or tire. The TC755 comes standard with an extra large turntable which means it can "clamp" most 26 inch chrome rims without the need for adapters. Atlas TC755DAA features a built in "Beadblaster" system. The "Beadblaster" system helps inflate stiff sidewall or other "hard to inflate" tires. The TC755 also has a powerful hand controlled bead breaker located on the side of the machine which is designed to break even the most stubborn and rusted beads without damage to the rim. The turntable jaws (which can be covered with plastic covers) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slide of the turntable to either increase or decrease the clamping range, and to handle the widest variety of tires. The Atlas TC755DAA requires some assembly after purchase.

  • Tilt-back column tire changer
  • Dual assist arm package included
  • Extra-large rim-clamp turntable
  • Built-in beadblaster inflation system
  • Air-operated jaws and bead breaker
  • Electric turntable operation
  • Button-controlled bead breaker
  • Pneumatic locking mount/demount head
  • Metal mount/demount head with plastic inserts
  • Column-mounted inflator box with gauge
  • Filter, regulator and lubricator included
  • Large plastic jaw covers included
  • 47" maximum tire diameter capacity
  • 29 7/8" maximum internal rim clamping
  • 110V power operation
  • 1-year parts warranty
Tire & Rim Capacity
External Locking Rim Range 11 7/8" - 28"
Internal Locking Rim Range 13 7/8" - 29 7/8"
Maximum Tire Diameter 47"
Maximum Wheel Width 18"
Performance
Table Motor 1 HP
Turntable Torque 885 ft/lbs.
Bead Breaker Force 5,500 lbs.
Assist System Dual Assist Arms Included
Power & Requirements
Air Requirement 90-110 PSI (Max 140 PSI)
Operating Voltage 110 Volt
Shipping Weight 1,000 lbs.
Warranty 1-Year Parts Only
