Wheel Balancer

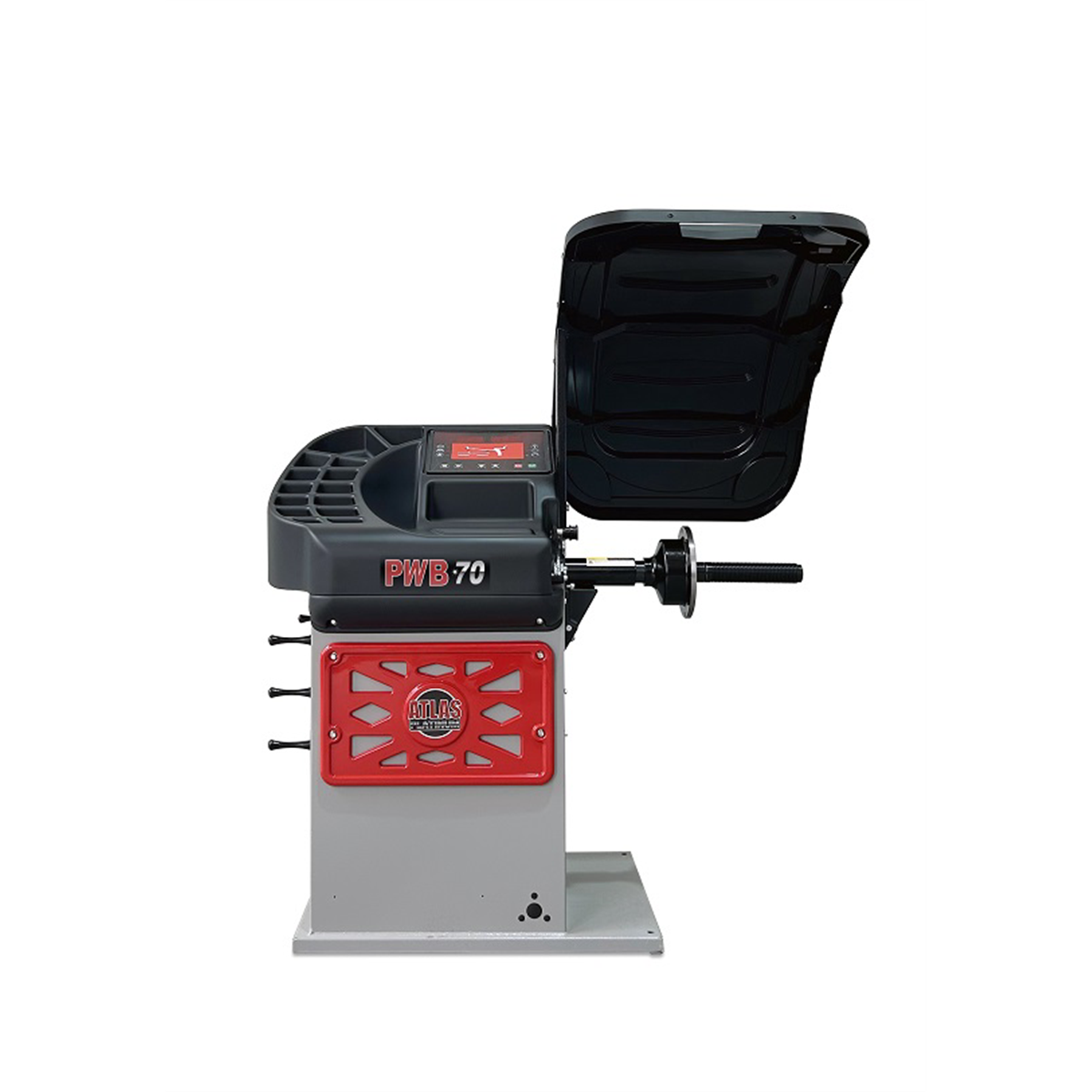

Atlas PWB70 Motorized Spin Balancer W/ Laser
Atlas PWB70 Motorized Spin Balancer W/ Laser
Premium Italian-engineered wheel balancer with laser-guided weight placement and automatic 2D measurement
SKU: ATEAP-PWB70
Regular price
$3,999
Sale price
$3,999
Regular price
Shipping calculated at checkout.
Need Help Deciding?
Specs can only tell you so much. Call or text our team for a straight answer on fit, install, and what actually works for your space and your vehicle.
Quantity
Couldn't load pickup availability
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
Laser Guided Placement
Accurate wheel weight positioning
Automatic 2D Data Entry
Fast and accurate wheel measurements
Italian Engineering
Premium components and construction
LED Wheel Illumination
Improved visibility during balancing
Optimatch Technology
Improves balancing of difficult wheel assemblies
Smart Electric Brake
Faster and easier weight application
PRODUCT DETAILS
Product Overview
The Atlas Platinum PWB70 is an electronic wheel balancer that improves on the already high quality PWB50 model. The Atlas Platinum PWB70 features a bigger wheel weight tray, a larger hood, and also adds an LED light and Laser Line guide for more precise wheel...
Show More
Indiana Showroom
See this product in person
Most products we sell are on the floor of our 50,000 sq ft warehouse in Daleville, Indiana ready for a hands-on demo.
Plan Your Visit
The Atlas Platinum PWB70 is an electronic wheel balancer that improves on the already high quality PWB50 model. The Atlas Platinum PWB70 features a bigger wheel weight tray, a larger hood, and also adds an LED light and Laser Line guide for more precise wheel weight placement.The Atlas Platinum PWB70 comes standard with an easy to read LED display and Automatic 2D Data Entry via a single data entry gauge. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows an operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB70 via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient.The Atlas Platinum PWB70 is a feature packed, high volume passenger vehicle wheel balancer that guarantees speed, accuracy, and a long life by combining Italian engineering and components with the Factory Direct Value that Atlas is known for around the World.
- Platinum computer controlled motorized spin balancer
- Italian engineering and components
- Electric brake with smart approach function
- Large wheel weight tray
- Automatic start/stop hood operation
- Static and dynamic balancing modes
- Optimatch balancing function
- FES split-weight function
- OPF opposite position function
- Special ALU-S and ALU programs
- Automatic 2D data entry
- NWN (No Wheel Need) system
- Self-diagnosing operation
- Self-calibrating system
- USB port for firmware updates
- Laser line weight placement guide
- LED wheel illumination light
- No anchor-down installation required
- Includes quick-release nut, cones, pliers and calipers
- Replacement Parts & Wear Items Always in Stock
- 2 Year Parts Only Warranty
Wheel Capacity
| Maximum Tire Diameter | 43" |
| Rim Size Range | 10" - 30" |
| Rim Width Range | 1 1/2" - 20" |
| Maximum Wheel Weight | 165 lbs. |
Performance
| Balancing Speed | 130 RPM |
| Cycle Time | 7 Seconds |
| Accuracy | 1 Gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
Technical Specifications
| Data Entry | Automatic 2D |
| Shaft Size | 40 mm |
| Power Supply | 110 Volt |
| Shipping Weight | 280 lbs. |
