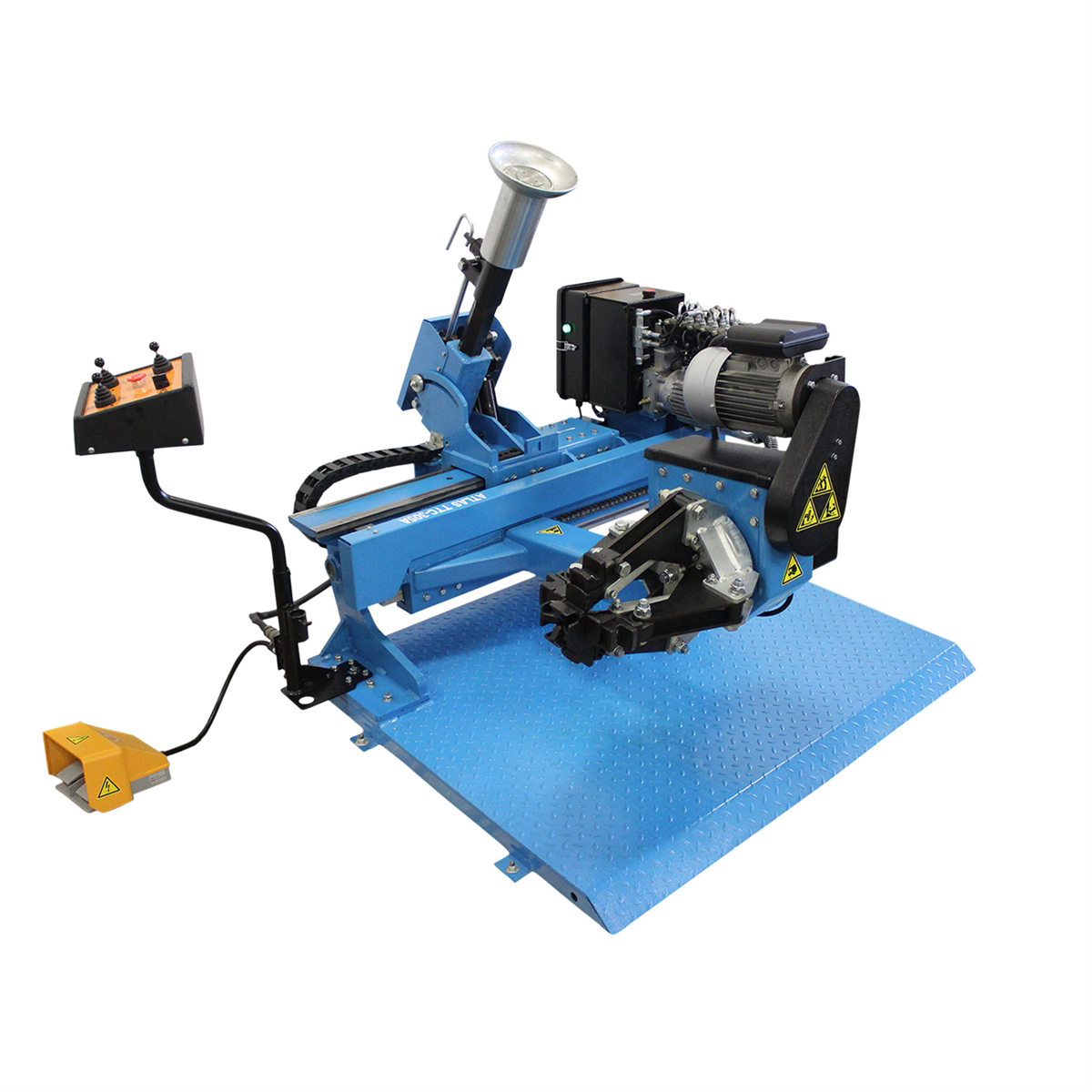

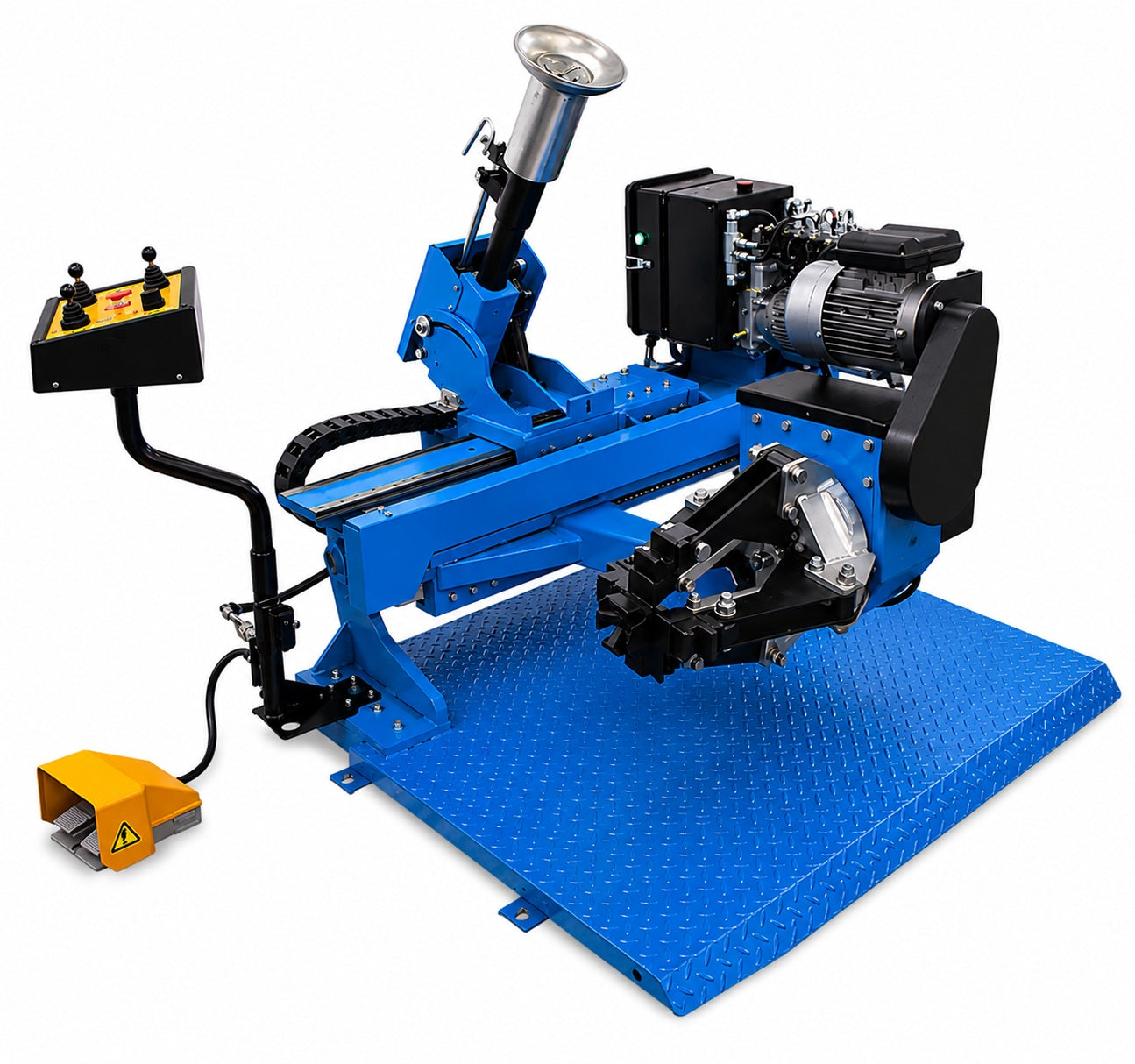

Atlas TTC305A Automated Truck Tire Changer
Atlas TTC305A Automated Truck Tire Changer
Automated truck tire changer for semi, 19.5", and forklift tires with automatic tool positioning.
Regular price
$10,599
Sale price
$10,599
Regular price
SKU: ATEATTC305A
Talk to an expert before you buy
Questions on fit, ceiling height or install? We'll help you pick the right one.
Same-day pickup at our Indiana showroom. See it in person, and we'll load it for you. Open Mon–Sat.
Included free with this product
Quantity
Couldn't load pickup availability
Why buy from Truman
Free pickup
Indiana
Nationwide
Fast shipping
Local installer
Referrals
Largest showroomShowroom
In the countryLargest in the US
100+ years
Of experience
Real people
Ready to help
Why This Machine
- Automatic positioningChuck arm, bead tool, and carriage move for you
- Two mounting headsStandard head plus a fast roller head
- Semi, 19.5", and forklift13" to 26" rims, tires up to 55"
- Emergency stopOne switch halts all functions
Product Description
The Atlas TTC305A is an automated truck tire changer for high-production shops that change semi tires, 19.5" tires, and forklift tires. It takes the hard work out of the tires that are too big for a passenger tire changer.
An ergonomic toggle control panel automatically moves the chuck arm, raises and lowers the bead tool, and moves the carriage to line the tool up with the tire, while foot pedals control the chuck's rotation. The single-speed hydraulic chuck has five locking rim positions, and it comes with a standard mount/demount head plus a fast roller head that swaps in quickly. An emergency switch stops all functions at once.
The TTC305A clamps rims from 13" to 26" (down to 8" with alloy adapters) and handles tires up to 55" in diameter and 30 1/2" wide, with an 838 lb. wheel capacity. It runs on 220V single-phase power with a 30 amp breaker.
Need capacity for ag and off-road tires? See the TTC303. Pair it with the WBT-210 truck balancer, or call 765-723-6523 to talk with a truck equipment specialist.
Specs and Dimensions
Rim Clamping Range
13 in. - 26 in.
Minimum Clamping Size w/ Alloy Adapters
8 in.
Max Wheel Weight
838 lbs.
Max Tire Diameter
55 in.
Max Tire Width
30 1/2 in. (2 ft. 6 1/2 in.)
Clamping Power
6,600 lbs.
Operating Pressure
0 - 1885 PSI
Acoustic Pressure
<70 dBA
Bead Breaker Force
3,990 lbs.
Tool Arm Positioning
Automatic
Tool Head Positioning
Automatic
Construction
Single Piece Frame w/ Solid Floor Plate
Hydraulic Motor
2 HP, 220V, 1 Phase
Chuck Motor
3 HP, 220V, 1 Phase
Breaker Requirement
30 Amp
Shipping Weight
1,490 lbs.
Add a Wheel Balancer and Save
Package pricing availableBuying a tire changer and wheel balancer together? We offer package pricing. These balancers are a great match for this machine.

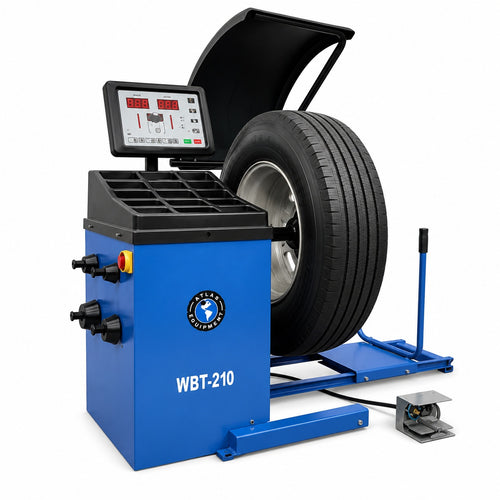

Atlas WBT-210 Heavy Duty Truck Wheel Balancer
