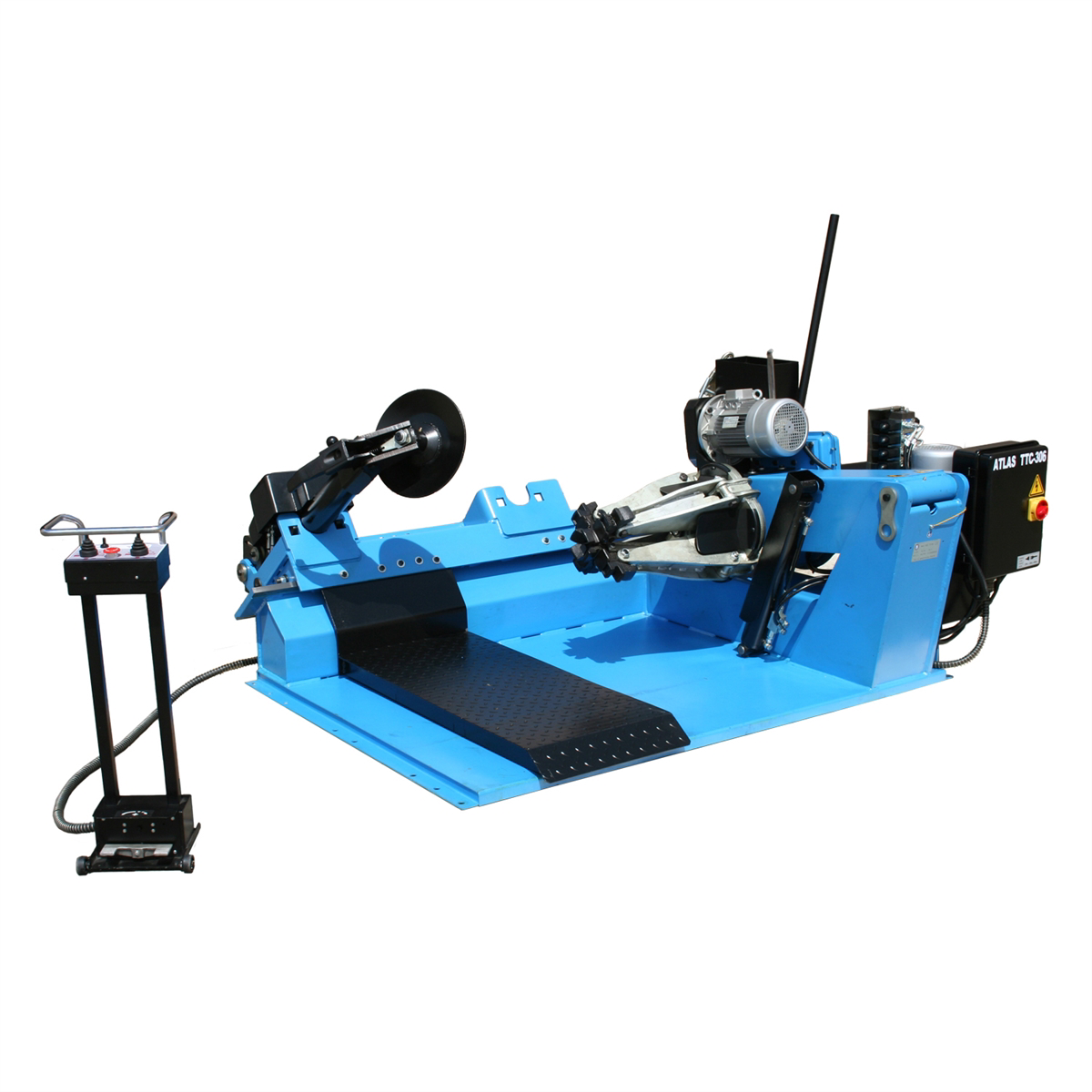

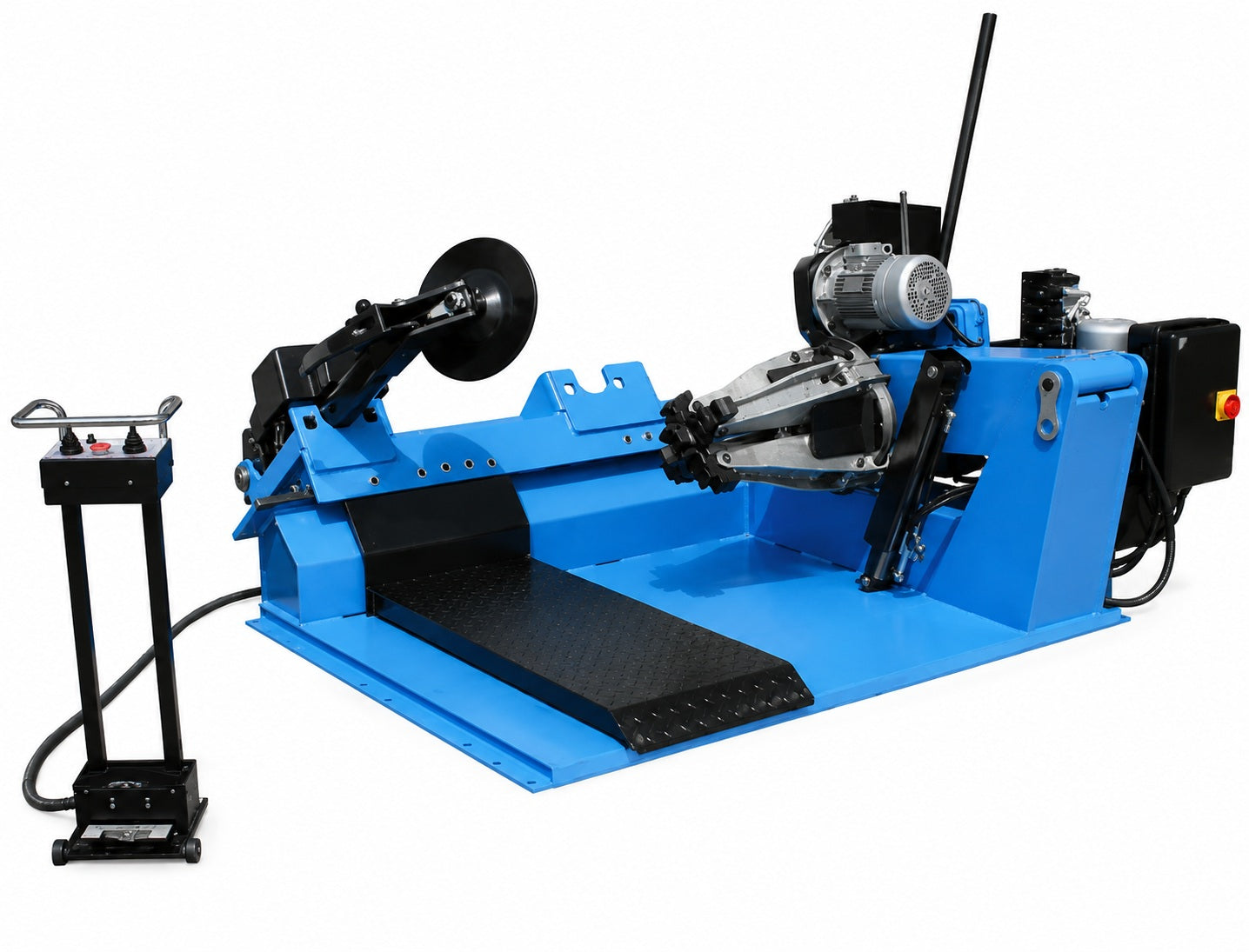

Atlas TTC306 Deluxe Automated Truck Tire Changer
Atlas TTC306 Deluxe Automated Truck Tire Changer
Deluxe remote-controlled truck tire changer for ag, earthmover, and super-duty tires up to 98".
Regular price
$14,499
Sale price
$14,499
Regular price
SKU: ATEATTC306
Talk to an expert before you buy
Questions on fit, ceiling height or install? We'll help you pick the right one.
Same-day pickup at our Indiana showroom. See it in person, and we'll load it for you. Open Mon–Sat.
Included free with this product
Quantity
Couldn't load pickup availability
Why buy from Truman
Free pickup
Indiana
Nationwide
Fast shipping
Local installer
Referrals
Largest showroomShowroom
In the countryLargest in the US
100+ years
Of experience
Real people
Ready to help
Why This Machine
- Remote controlMove the bead breaker and head from the console
- Biggest tiresUp to 98" diameter and 3,968 lb. wheels
- Wide clamping range14" to 46", up to 56" with extensions
- Three-phase powerRequires 220V three-phase service
Product Description
The Atlas TTC306 is a deluxe truck tire changer built for high-volume truck, agricultural, and mine truck tire shops. It's similar to the TTC303, with a remote control console that moves the bead breaker disc and mount/demount head automatically. The console is wired as standard and can optionally be made wireless, keeping cords off the floor and letting the operator work from anywhere in the bay.
It handles tires up to 98" in diameter and wheels up to 3,968 lbs., making it a strong fit for large agricultural and earthmover tires as well as off-road, super single, and skidder tires. It clamps rims from 14" to 46", up to 56" with extensions, with 13,173 lbs. of clamping power.
Important: the TTC306 requires 220V three-phase power with a 30 amp breaker. If your shop has single-phase service, look at the TTC303 instead.
Pair it with the WBT-210 truck balancer, or call 765-723-6523 to talk with a truck equipment specialist.
Specs and Dimensions
Rim Clamping Range
14 in. - 46 in.
Maximum Clamping Size w/ Extensions
56 in.
Max Wheel Weight
3,968 lbs.
Max Tire Diameter
98 in. (8 ft. 2 in.)
Max Tire Width
42 in. (3 ft. 6 in.)
Clamping Power
13,173 lbs.
Operating Pressure
0 - 1885 PSI
Acoustic Pressure
<70 dBA
Bead Breaker Force
5,930 lbs.
Tool Arm Positioning
Automatic
Tool Head Positioning
Automatic
Construction
Single Piece Frame w/ Solid Floor Plate
Hydraulic Motor
3 HP, 220V, 3 Phase
Chuck Motor
3.5 - 4 HP, 220V, 3 Phase
Breaker Requirement
30 Amp
Shipping Weight
2,260 lbs.
