Why This Lift
- Room to park underneath78" of clearance under the runways
- Fits bigger vehicles86.5" between columns and 185.5" runways
- 5 drip trays includedOne more than most four-posts, plus a jack track
- Move it when you need toMobile kit and single-point lock release
Explore this lift

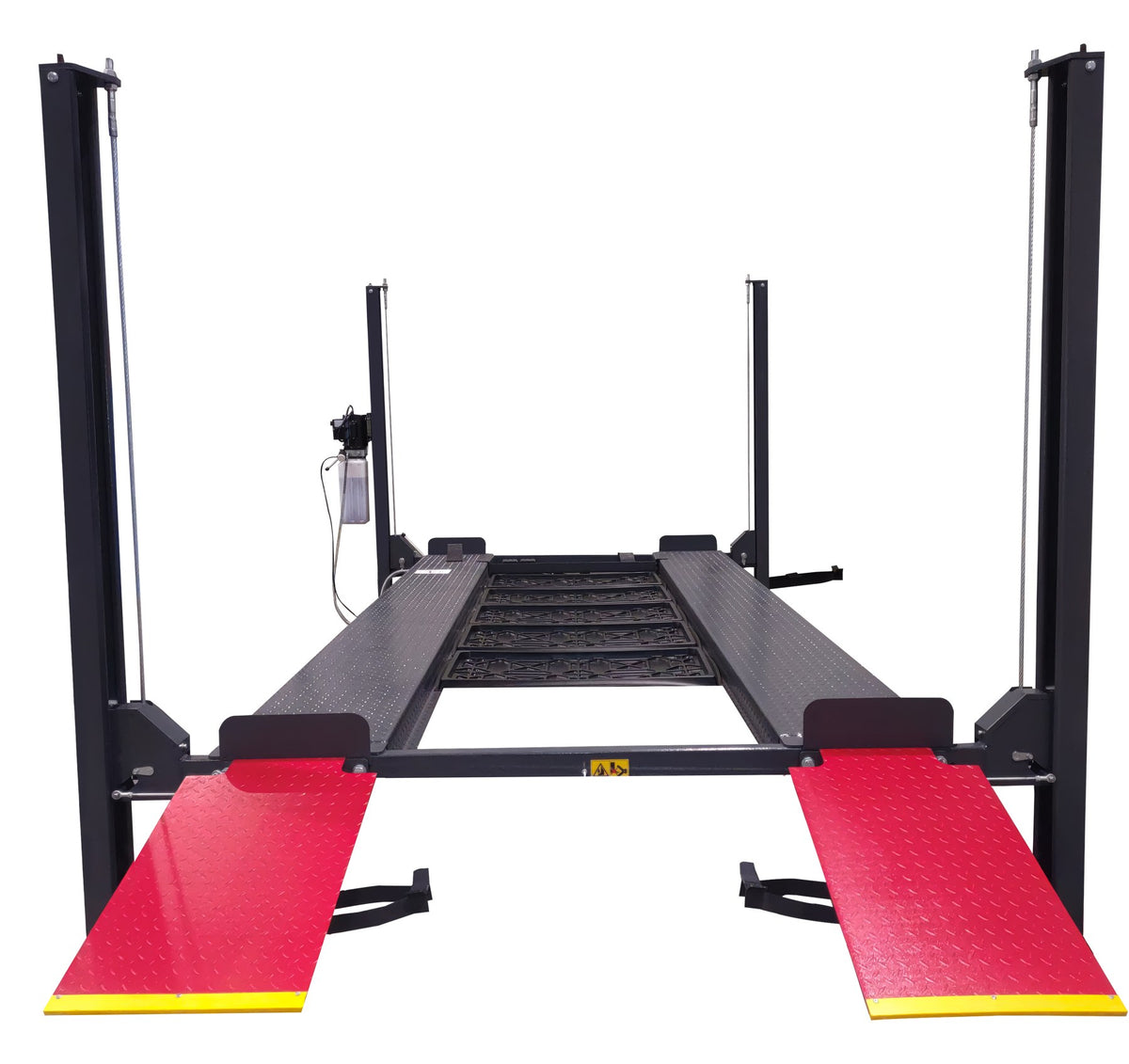

Explore the Kappa 8H
Tap a number to see what each part does.
Product Description
The Bright Kappa 8H is an extra tall, wide, and long 8,000 lb. four-post lift for parking, storage, and service. With 78" of clearance under the runways, you can park a taller vehicle underneath.
86.5" between the columns and 185.5" runways make room for full-size trucks and SUVs on top. Commercial-grade runways provide a stable platform, 5 drip trays are included to protect the vehicle parked below, and a built-in track lets you add sliding bridge jacks. A single-point lock release disengages all four column locks at once, backed by a cable-break safety lock system.
A mobile kit makes it easy to move the lift when you need the floor space. See the Kappa 8H in our Daleville, Indiana showroom, or call 765-723-6523 to talk with a lift specialist.

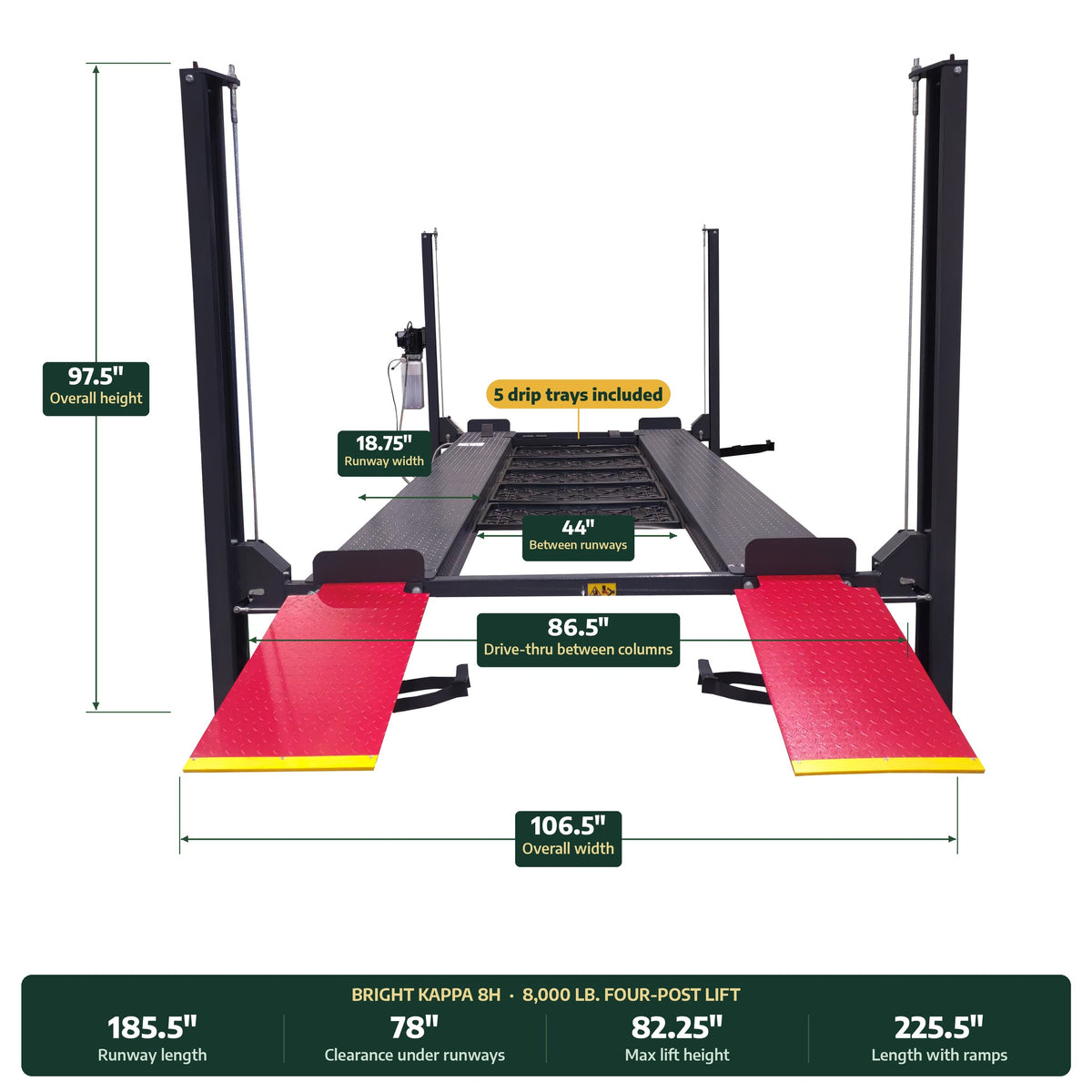

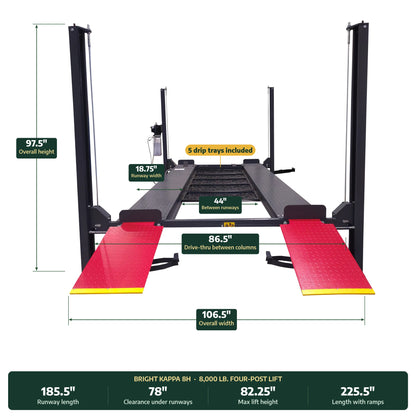

Specs and Dimensions
Lifting Capacity
8,000 lbs
Clearance Under Runways
78"
Maximum Lift Height
82.25"
Track Height
4.25"
Overall Height
97.5"
Overall Width
106.5"
Runway Length
185.5"
Overall Length with Ramps
225.5"
Inside Columns / Drive-Through
86.5"
Runway Width
18.75"
Width Between Runways
44"
Shipping Dimensions
187" × 22.5" × 28.75"
Shipping Weight
1,990 lbs

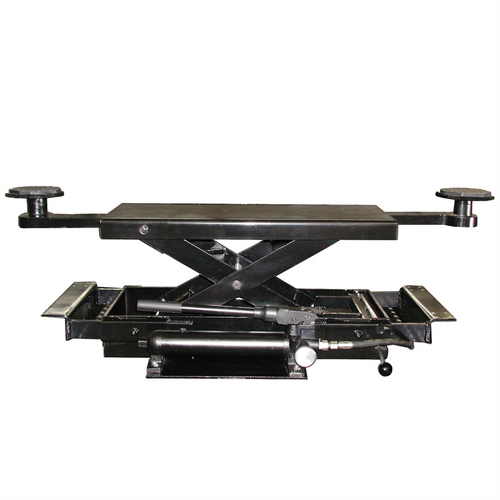

Bridge Jacks That Fit This Lift
Add a bridge jack to lift the wheels free for tire, brake, and suspension work.
Not sure which jack you need? Call 765-544-3838
Manuals and Documents
Need a part number or a document that isn't listed? Call 765-544-3838 and we'll send it over.
