At a Glance
960 mm
Max Wheel Diameter
12"–21"
Inside Clamping Range
10"–18"
Outside Clamping Range
3"–12"
Rim Width
8–10 bar
Working Pressure
6.5 rpm
Rotation Speed

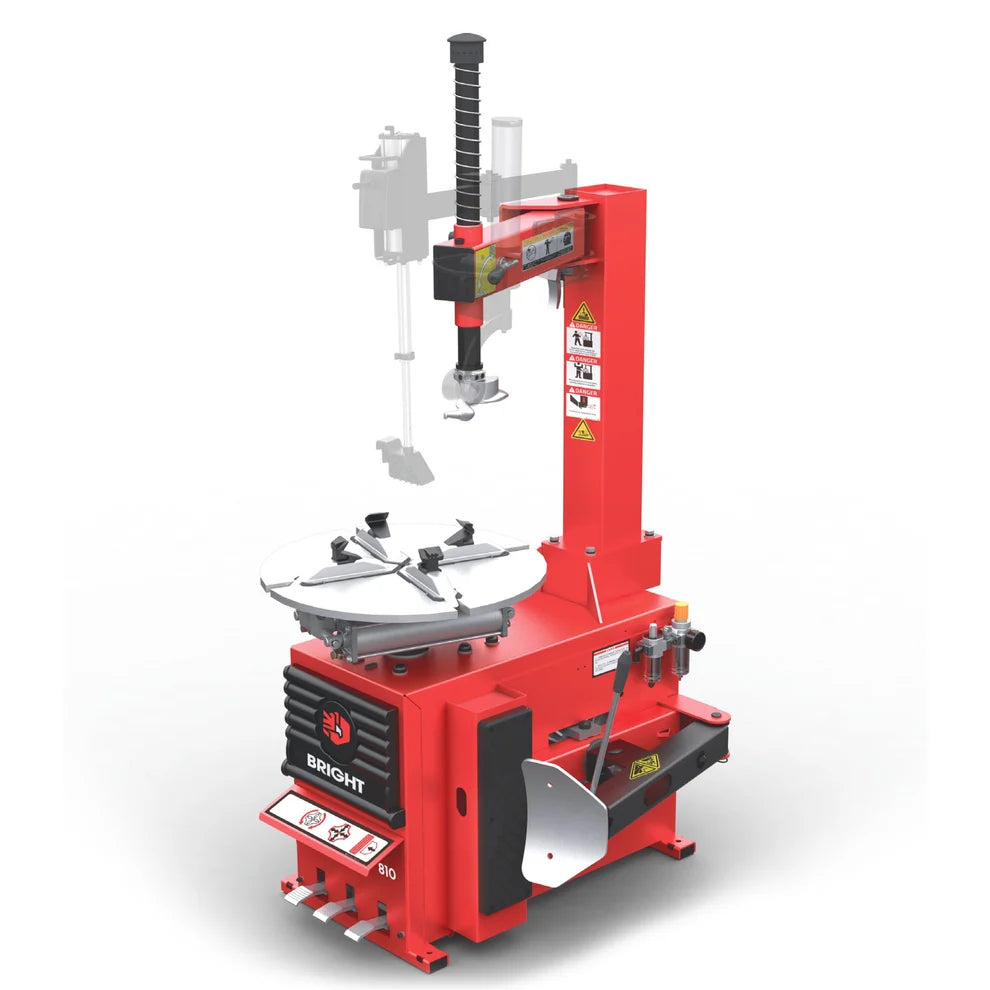

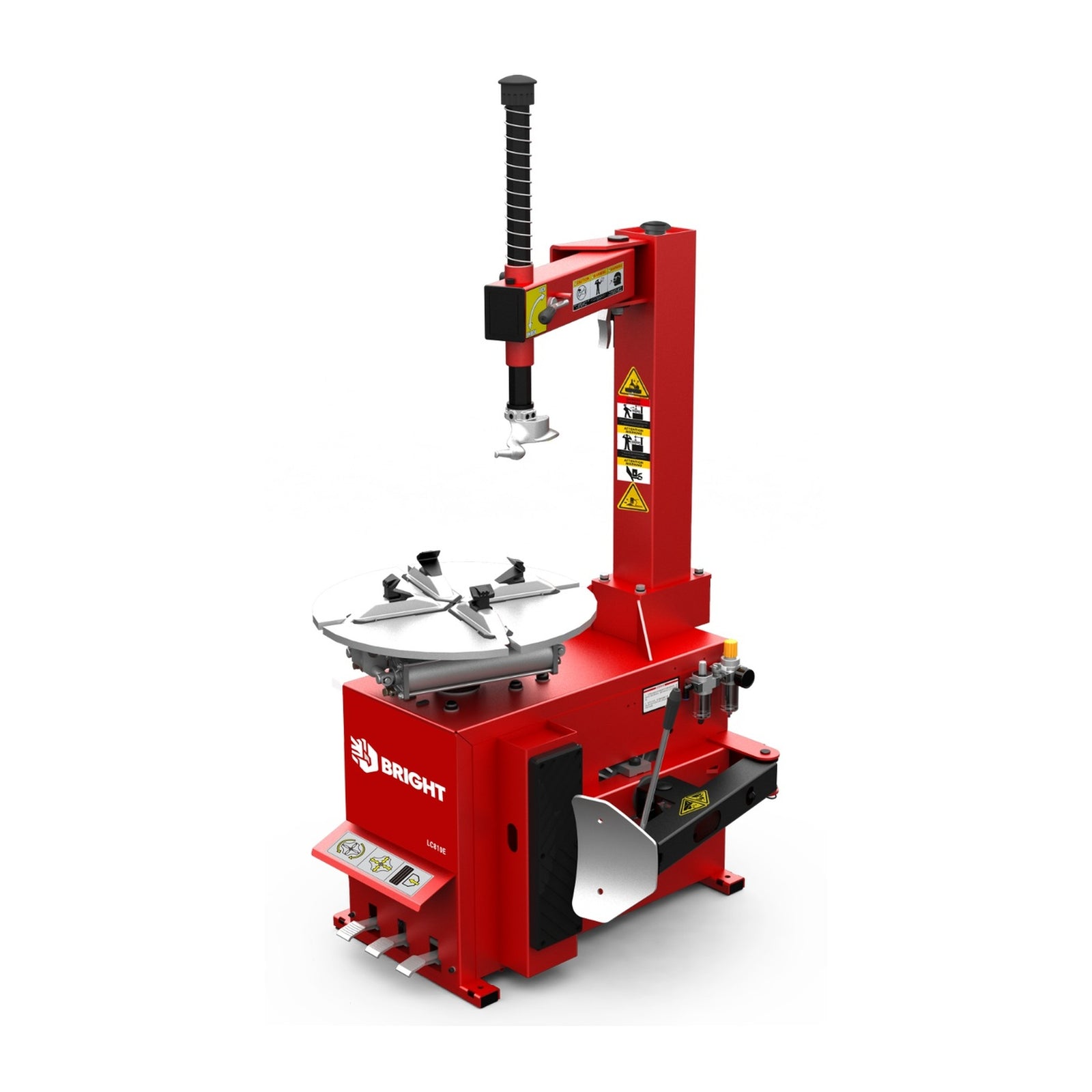

Product Description
As an ordinary tire changer, its simple and practical design will make it prevail all over the world; the new valve body enhances the durability of the product. Focusing on car tire changers for more than 20 years, every component has been integrated with at least 20 years’ exploration. It can be seen to create value for customers in every part of the world. Simple and practical, it can meet all the needs of regular tire service.

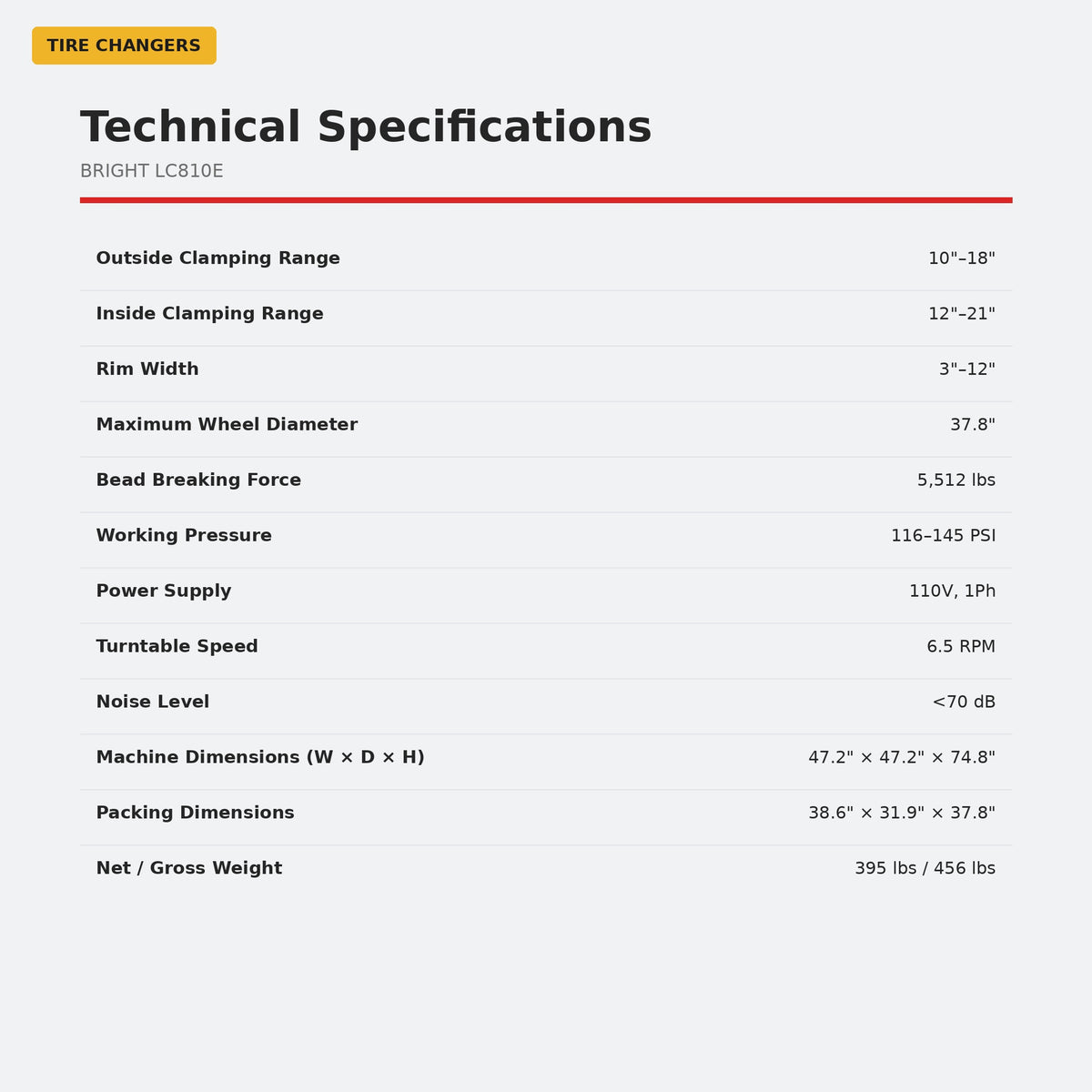

Specs and dimensions
Outside Clamping Range
10" - 18"
Inside Clamping Range
12" - 21"
Rim Width
3" - 12"
Max Wheel Diameter
960 mm
Working Pressure
8 - 10 bar
Bead Breaking Force
2500 kg
Power Supply
110V/220V/380V
Motor Power
1.1/0.75 kW
Rotation per Minute
6.5 rpm
Noise
<70 dB
Machine Dimensions
1200 × 1200 × 1900 mm
Packing Dimensions
980 × 810 × 960 mm
Net Weight
179 kg
Gross Weight
207 kg
Loading in 40 Ft. Container
72 sets
