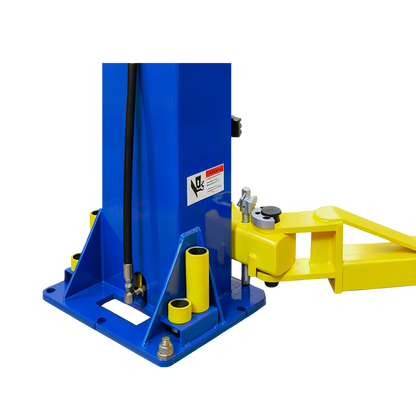

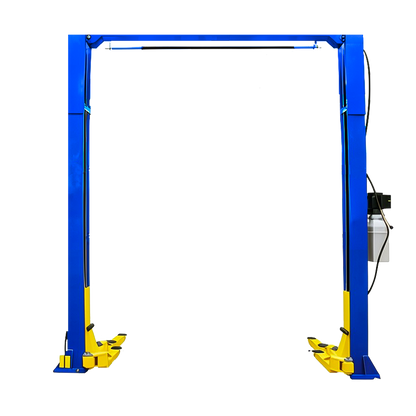

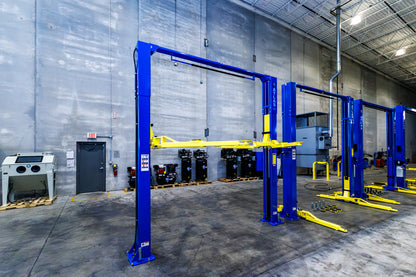

Atlas 9KOHX 9,000 lb Overhead 2-Post Lift
Atlas 9KOHX 9,000 lb Overhead 2-Post Lift
One of our best-selling 2-post lifts, made for sedans, SUVs, and half-ton crew cab pickups.
Regular price
$2,599
Sale price
$2,599
Regular price
SKU: ATEXH-9KOHX
Included free:Free:
Talk to an expert before you buy
Questions on fit, ceiling height or install? We'll help you pick the right one.
On display in our Indiana showroom. See it run, then take it home today. We'll load it for you. Open Mon–Sat.

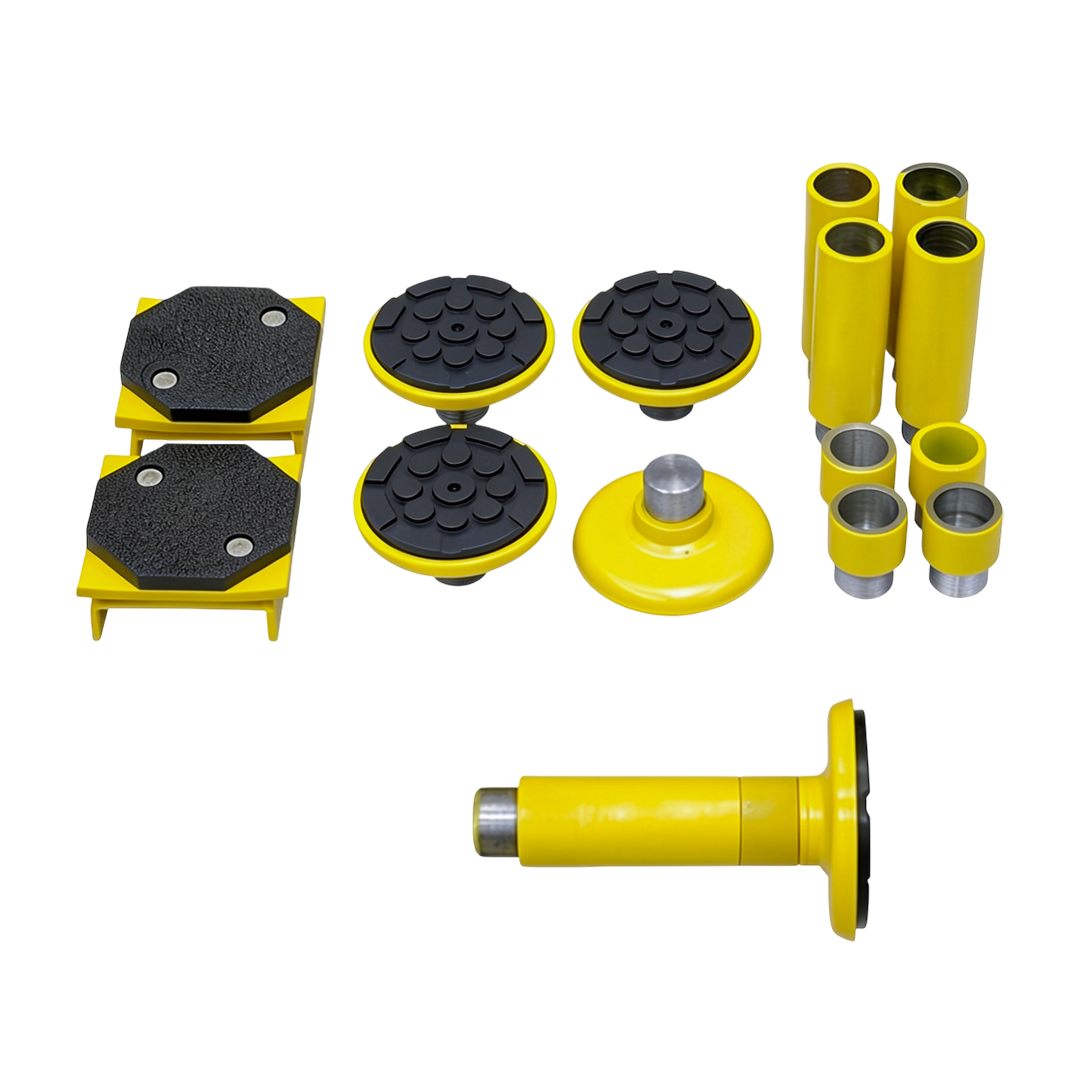

Included free with this product
Quantity
Couldn't load pickup availability
Why buy from Truman
Free pickup
Indiana
Nationwide
Fast shipping
Local installer
Referrals
Largest showroomShowroom
In the countryLargest in the US
100+ years
Of experience
Real people
Ready to help
Why This Lift
- Two height settingsStands 11' 6" or 11' 10". Measure your ceiling first.
- Low 4" arm heightReaches low pickup points on small cars

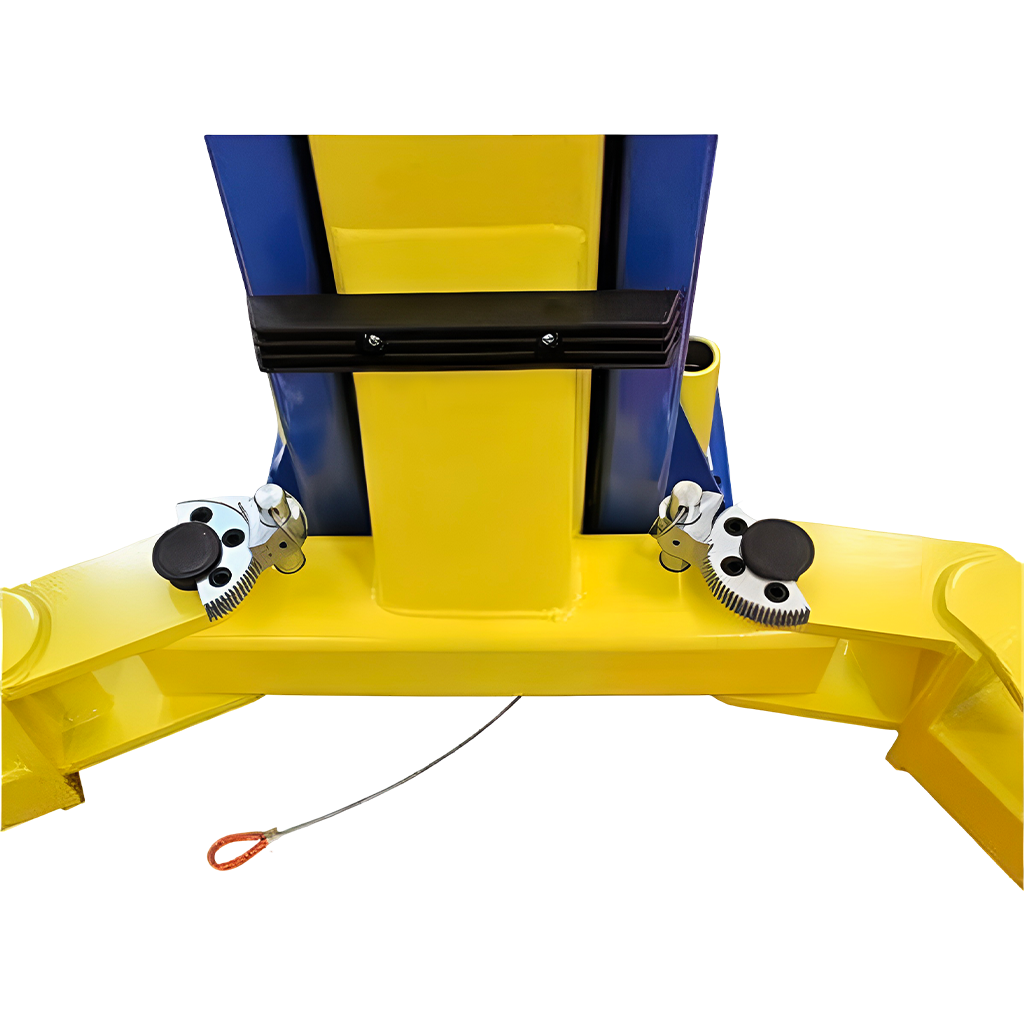

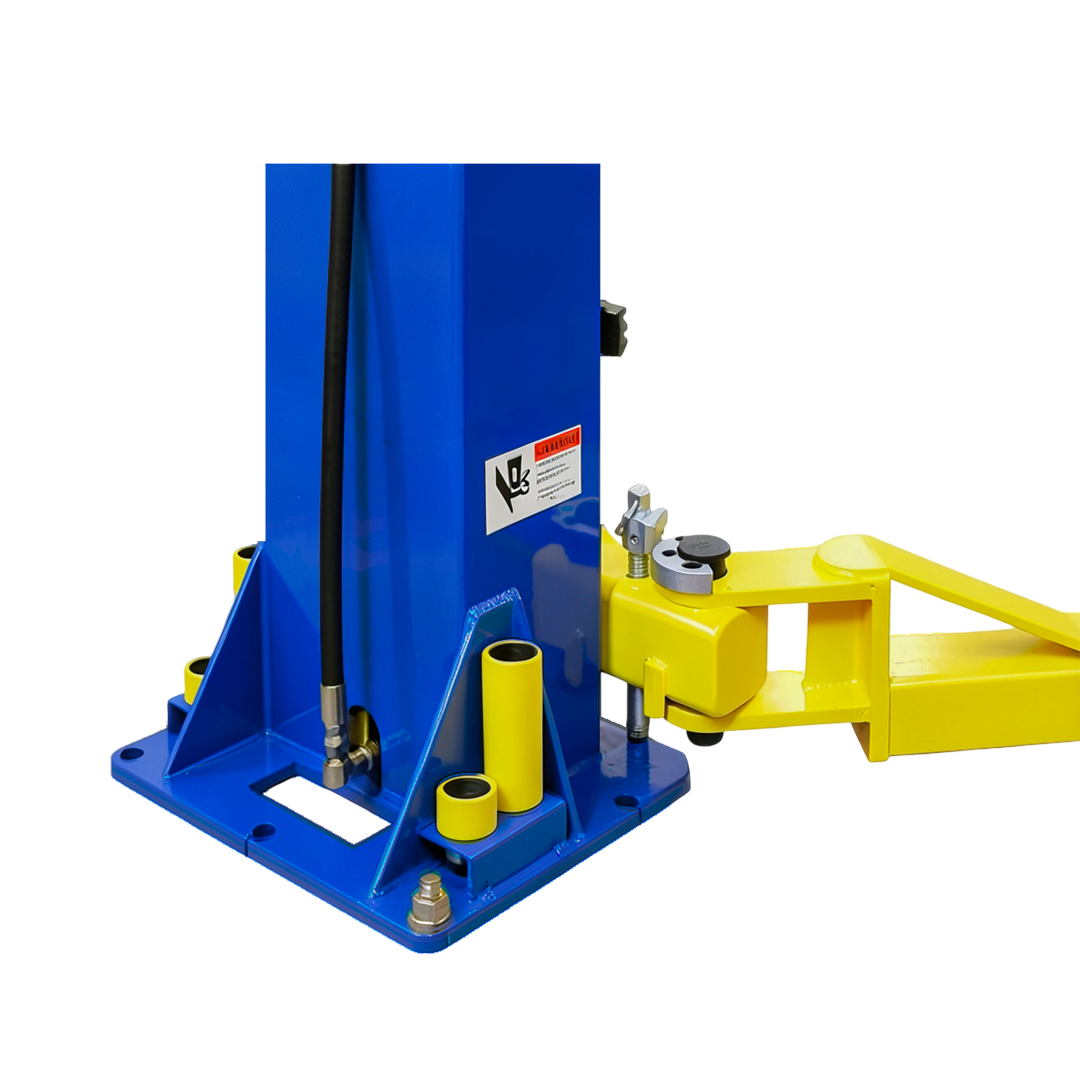

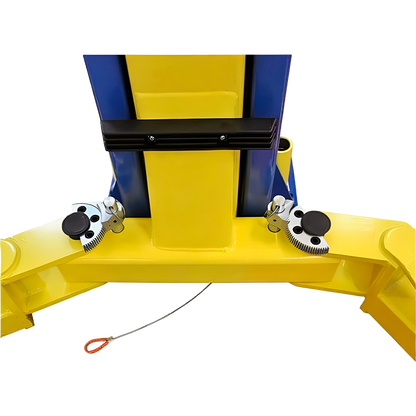

- Secondary lock systemSpring-loaded locks engage if a chain goes slack

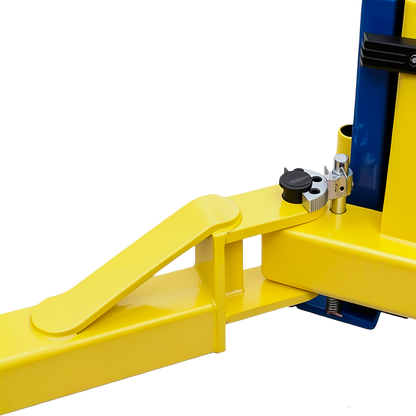

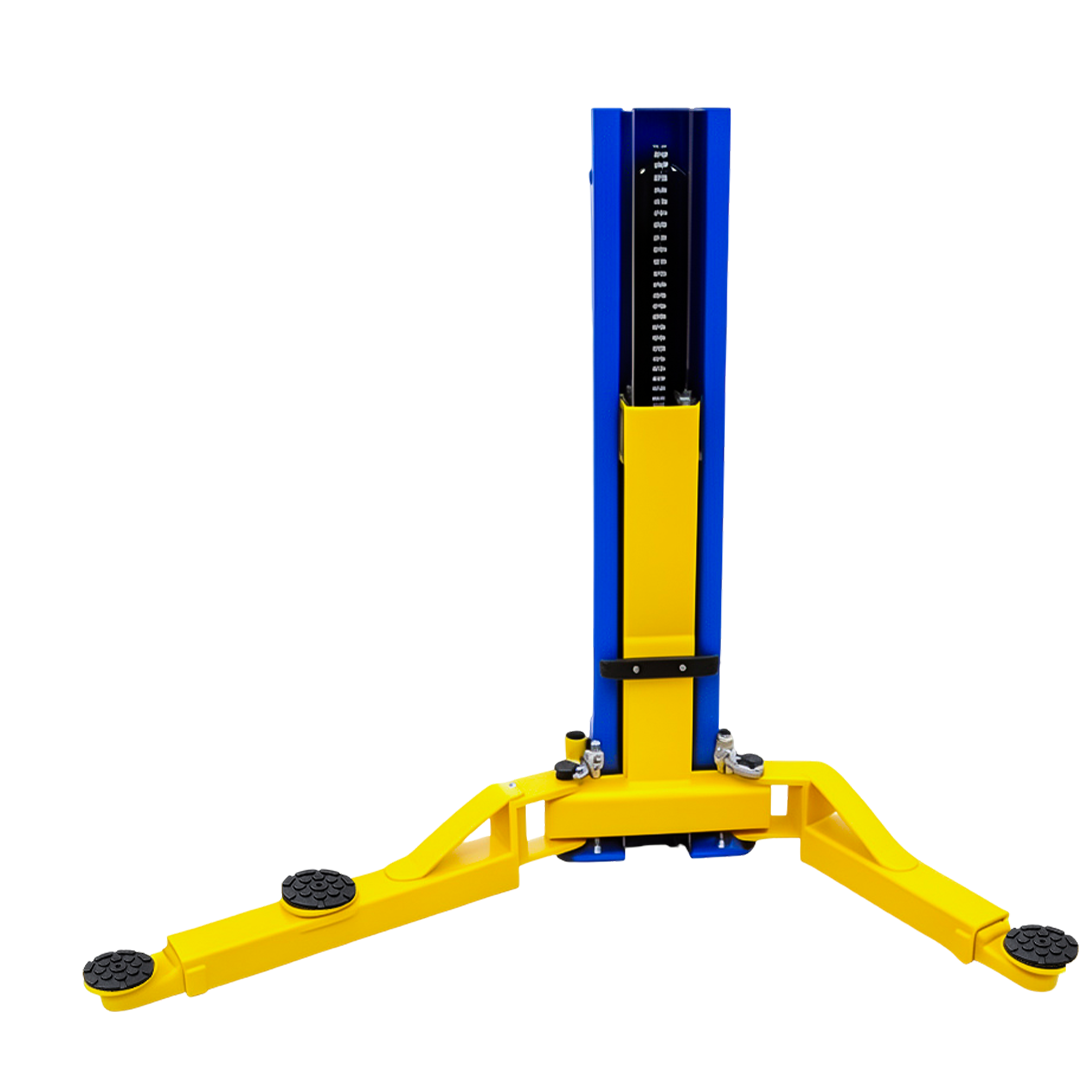

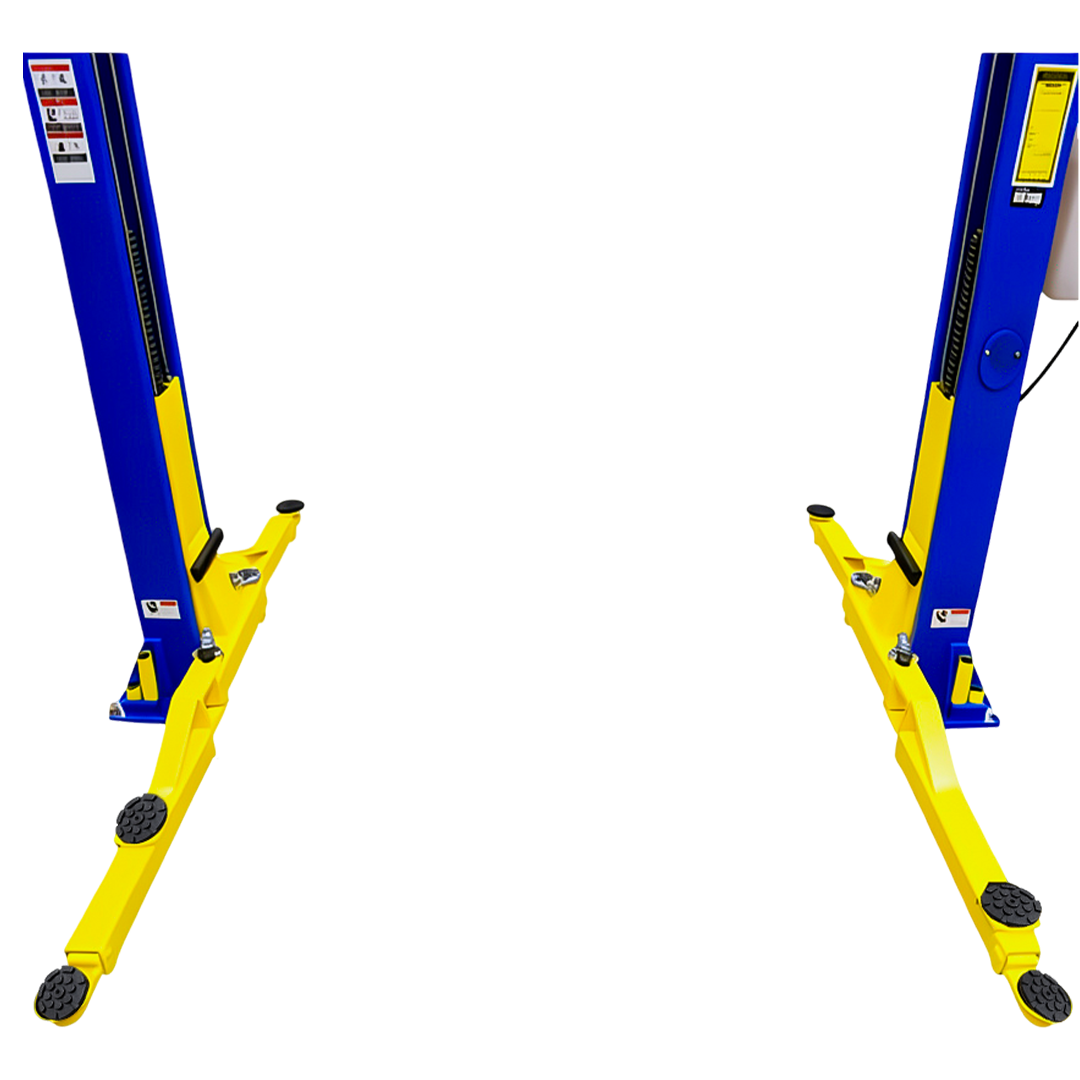

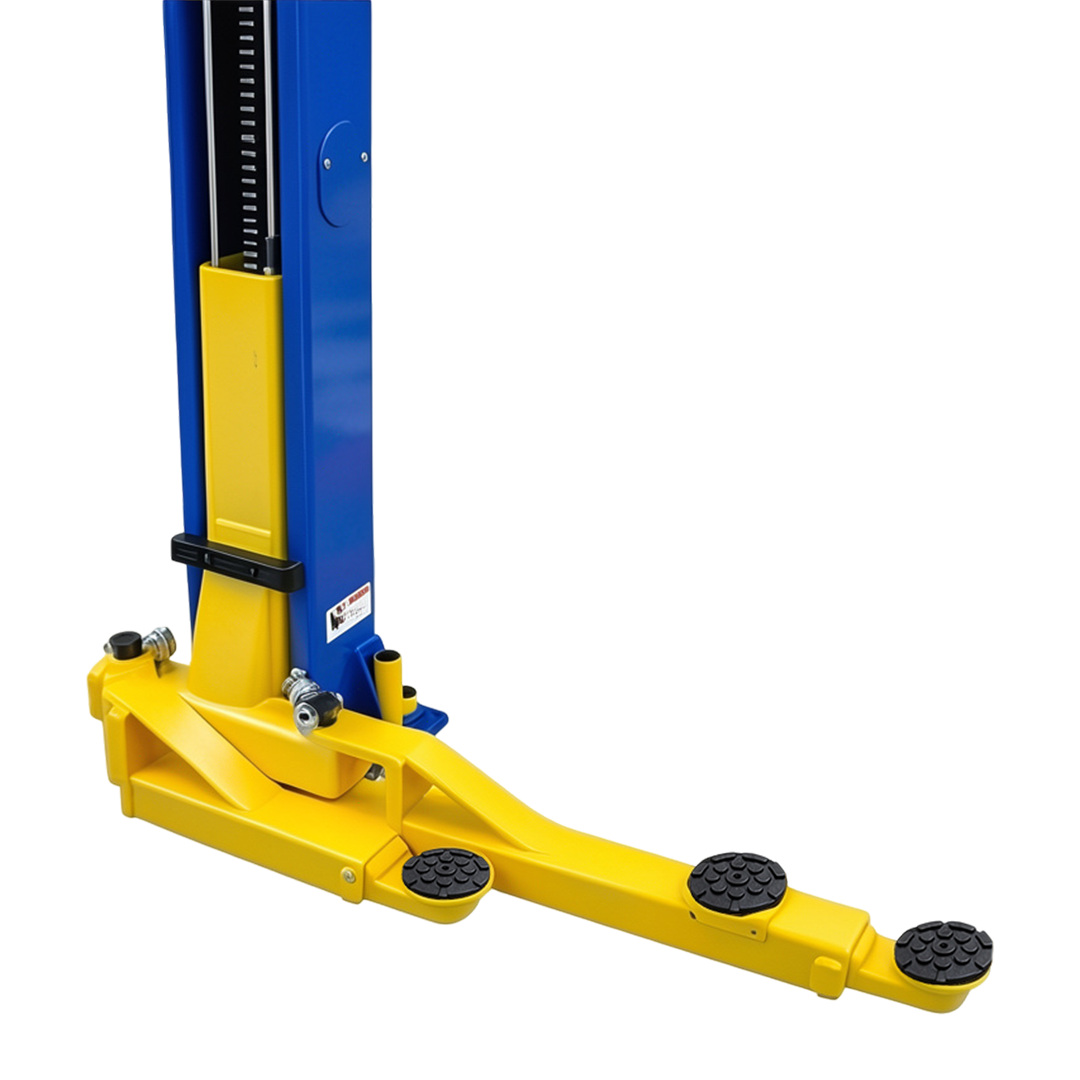

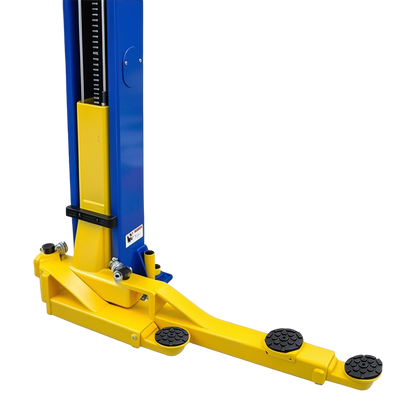

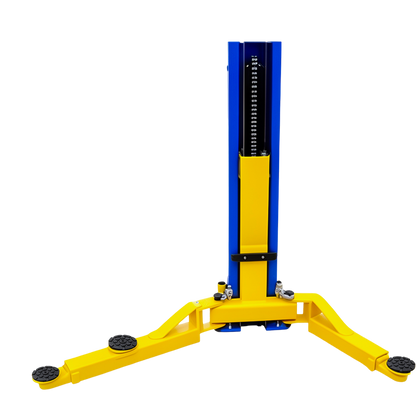

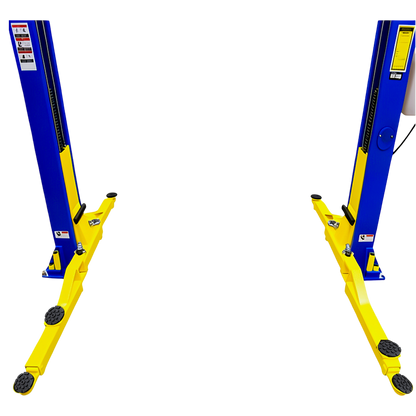

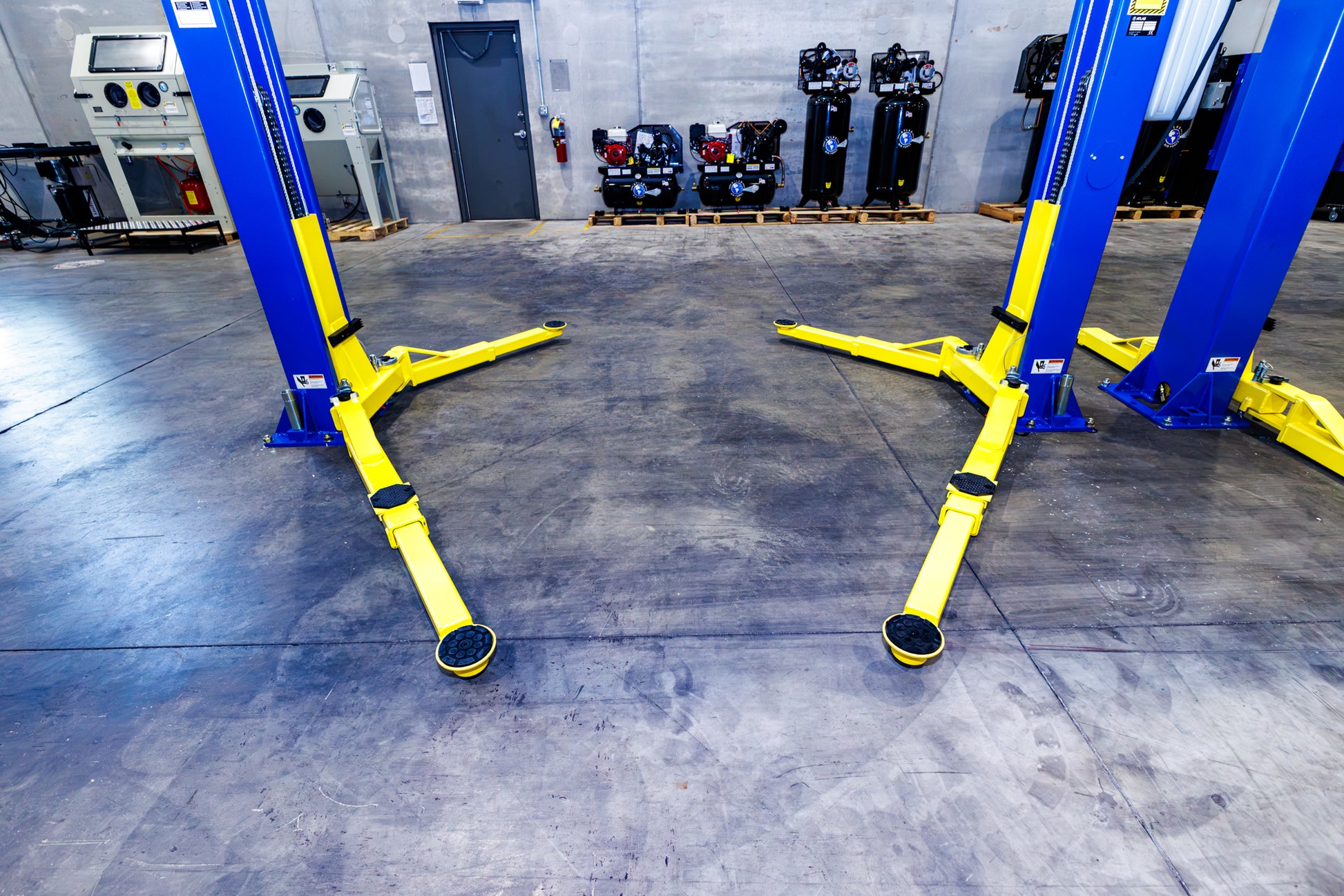

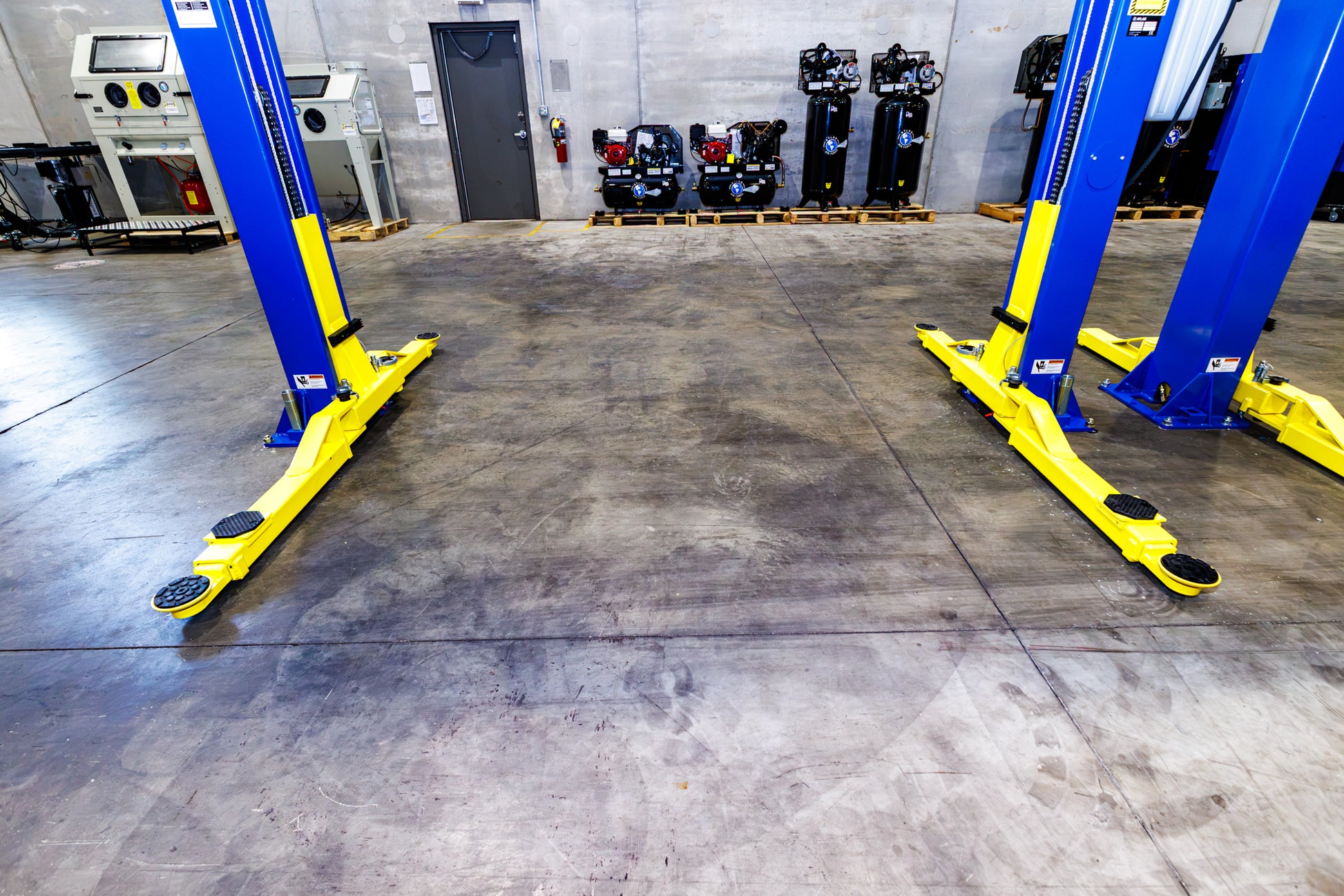

- Symmetric or asymmetric armsSet the arms to suit the vehicle
Explore this lift
Explore the Atlas 9KOHX
Tap a number to see what each part does.
Product Description

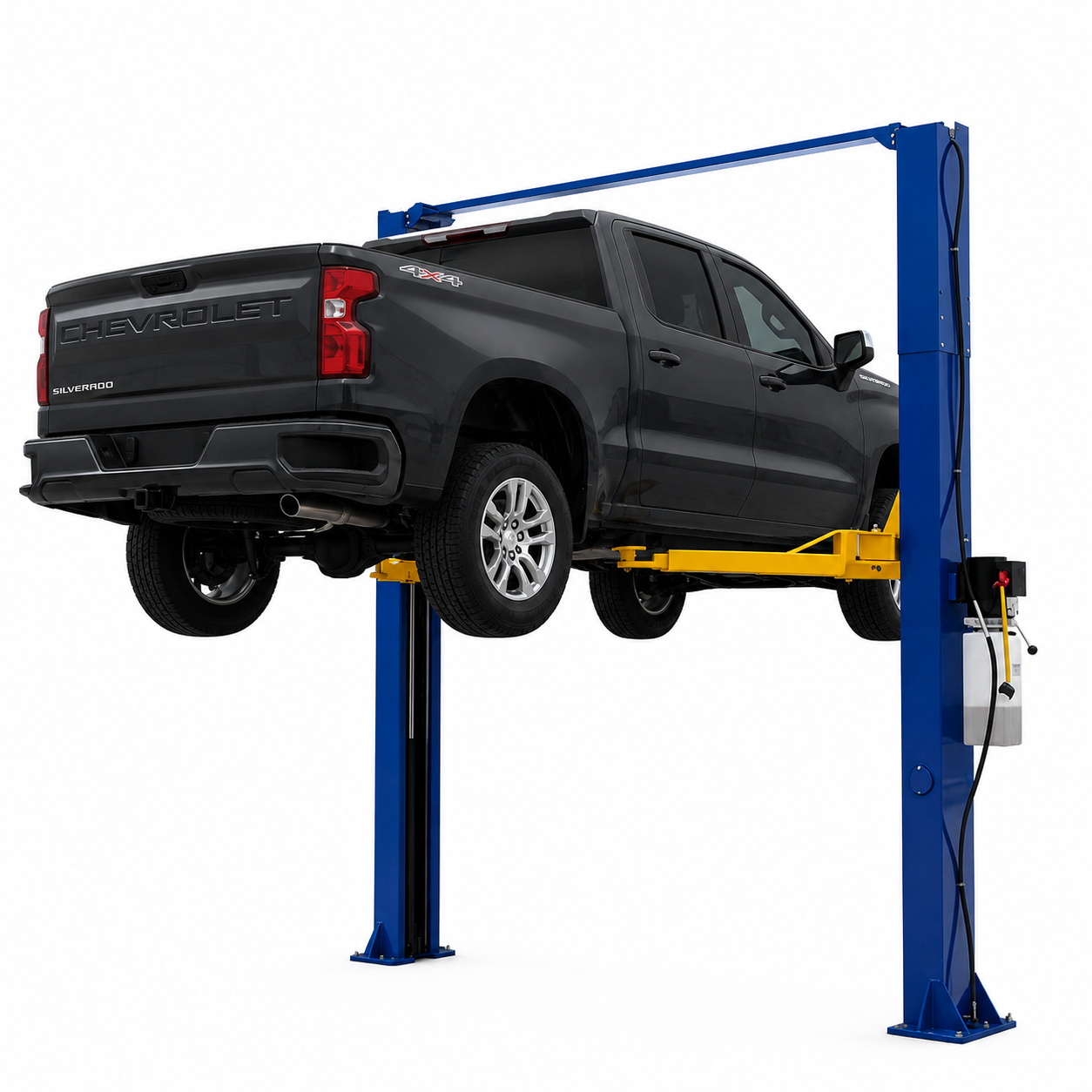

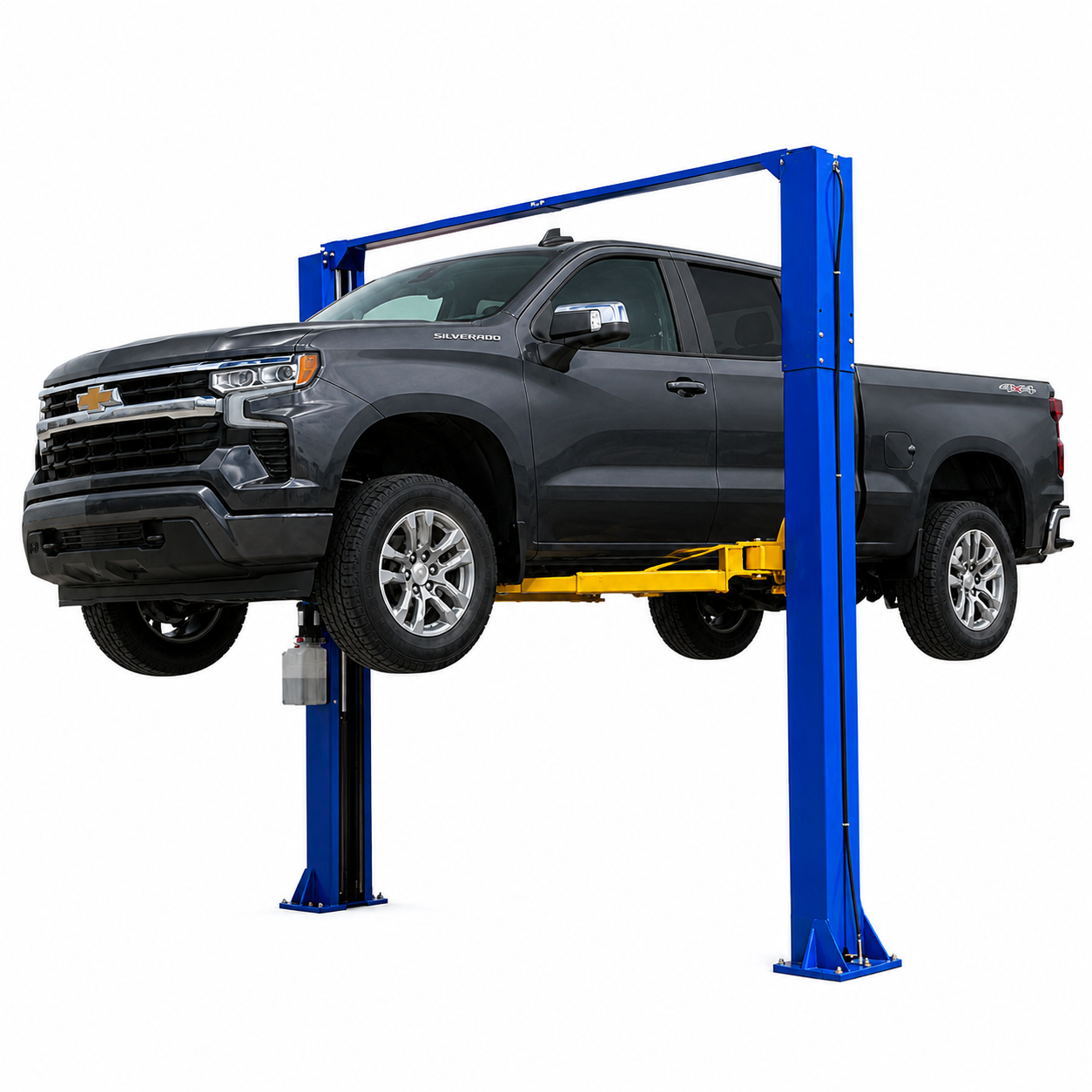

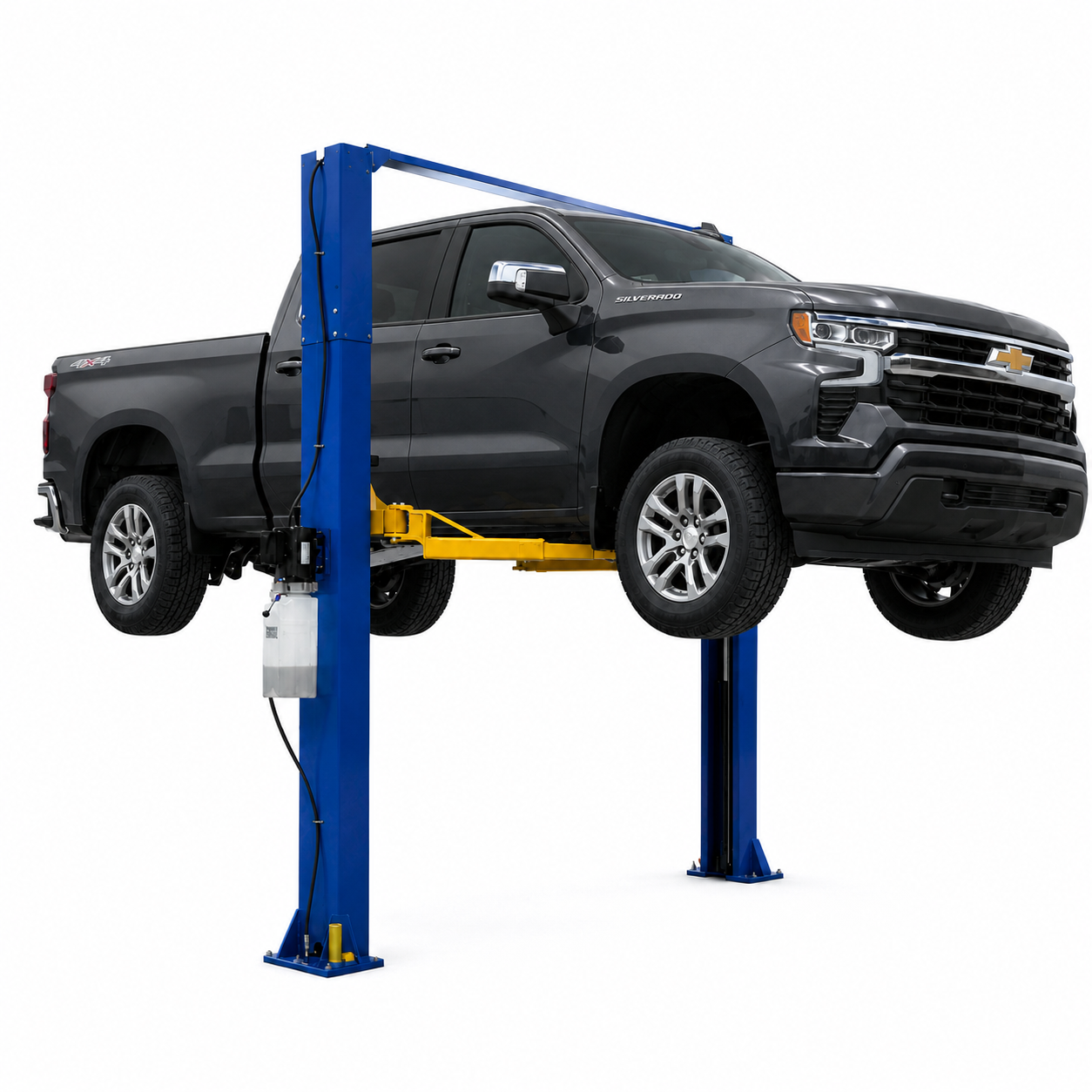

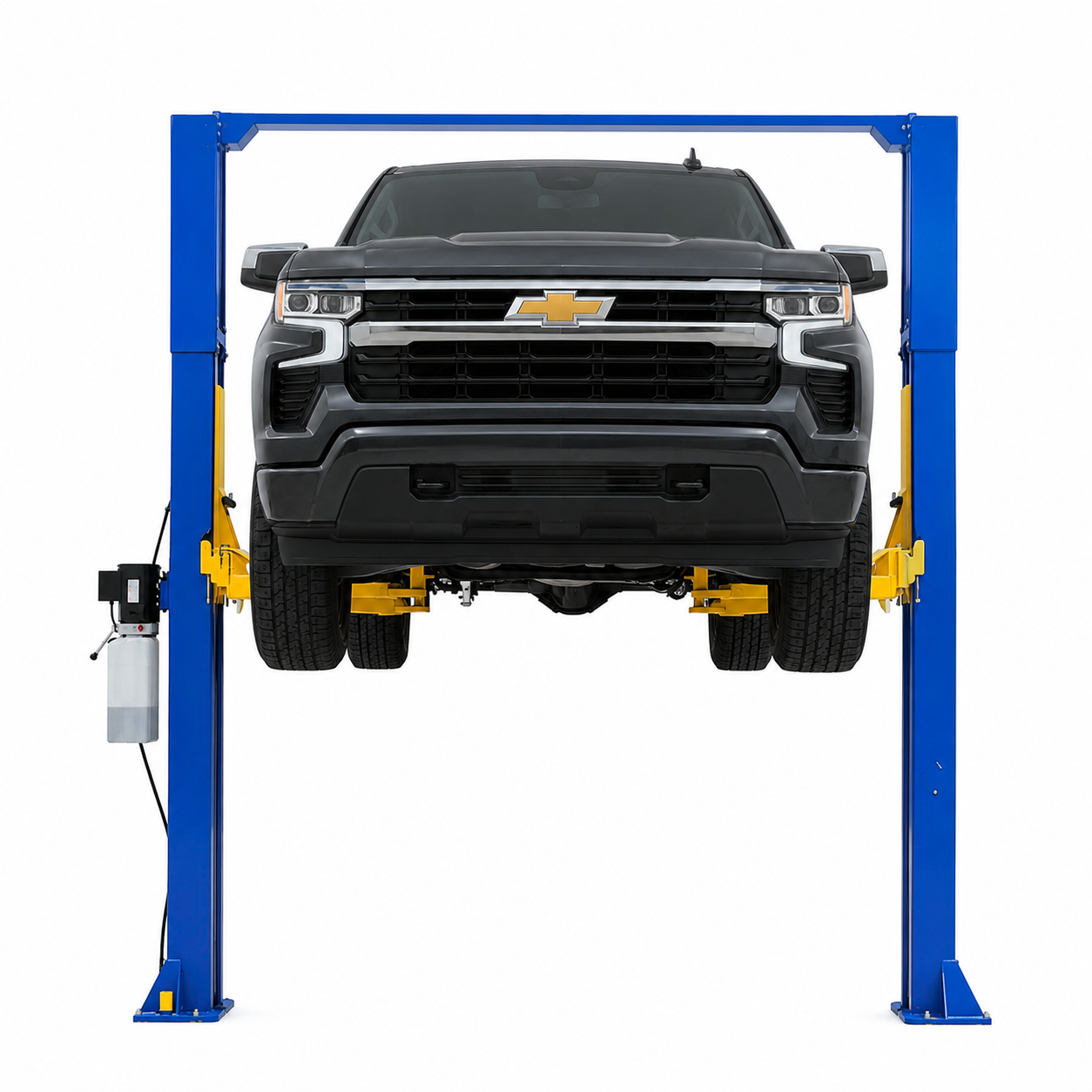

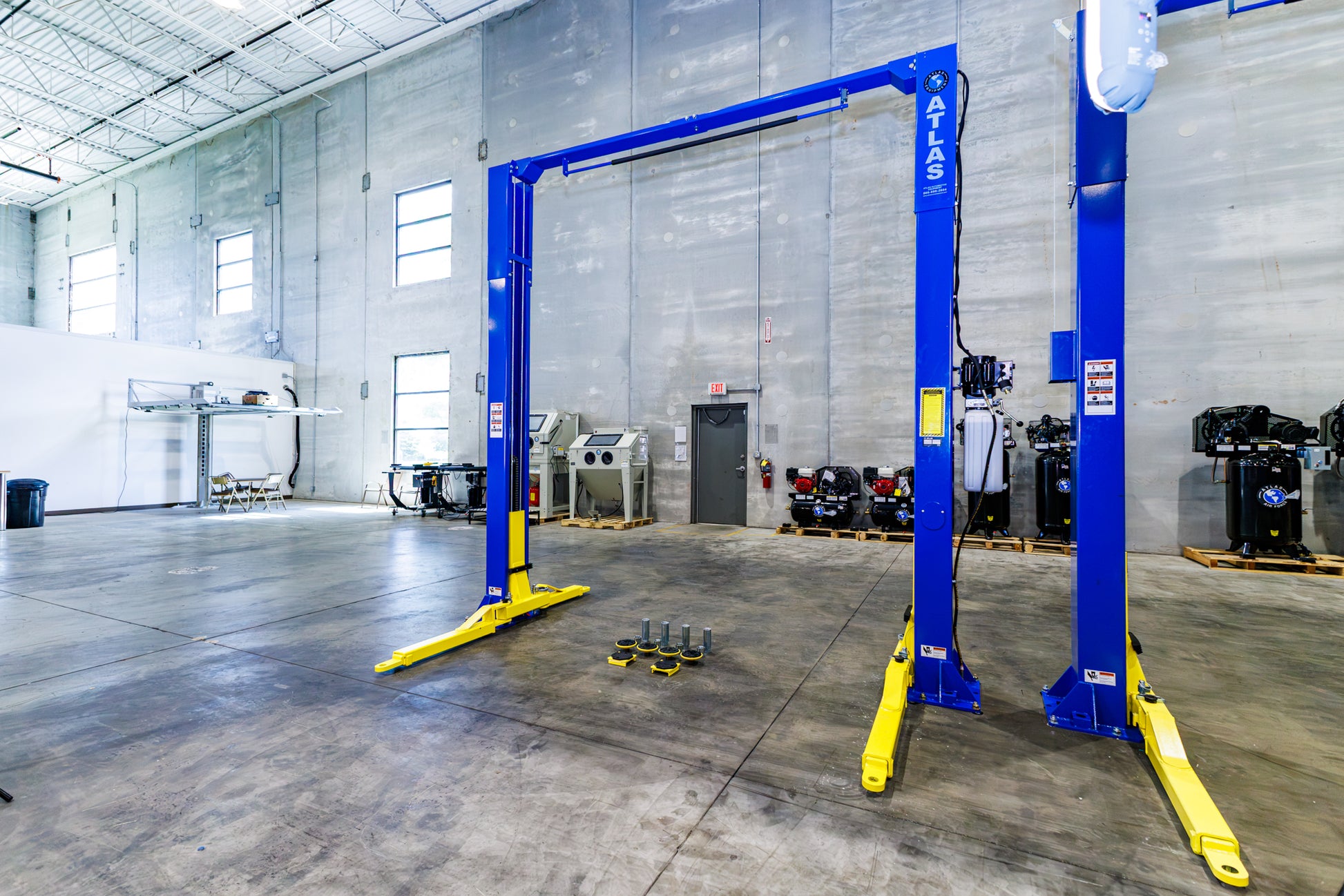

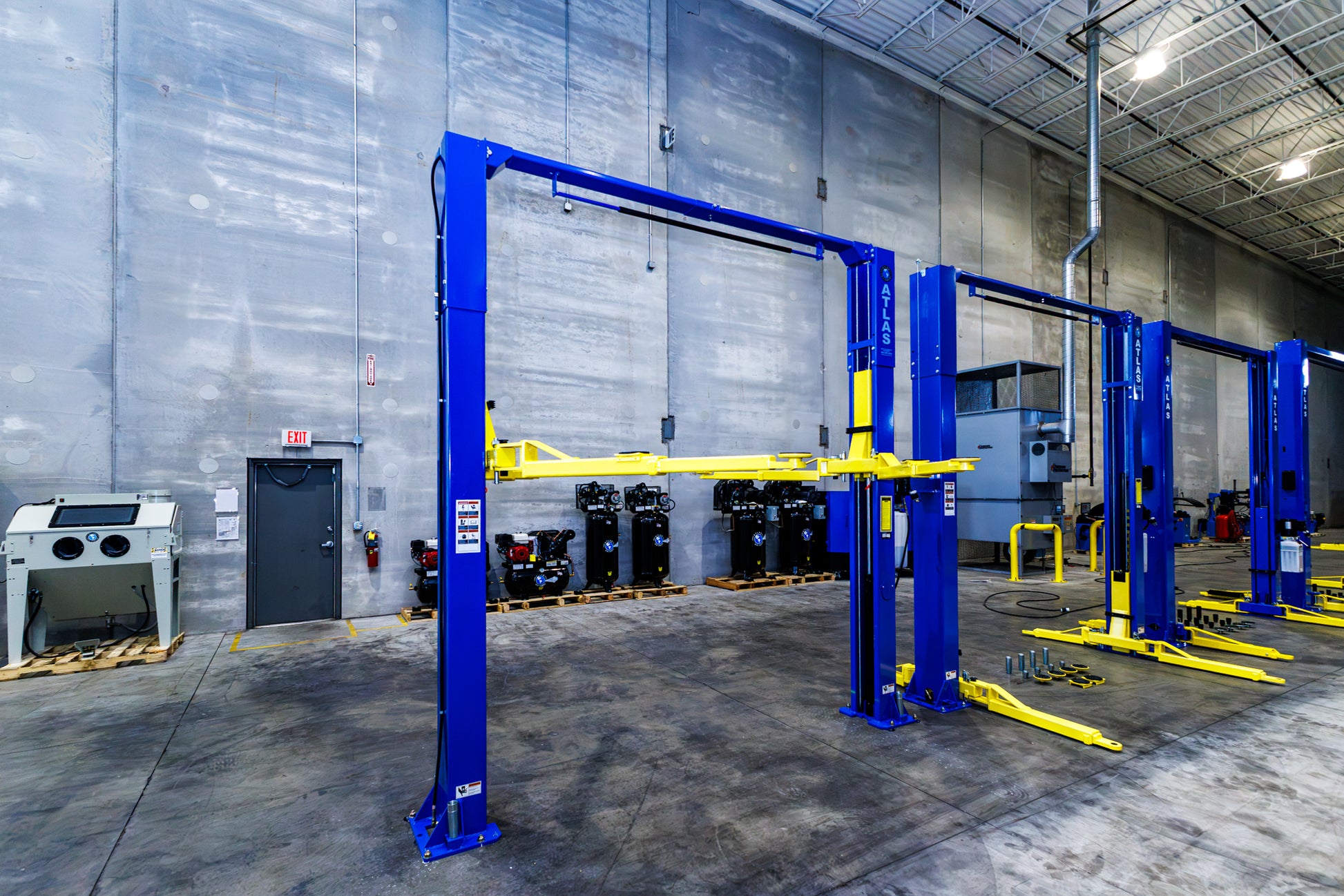

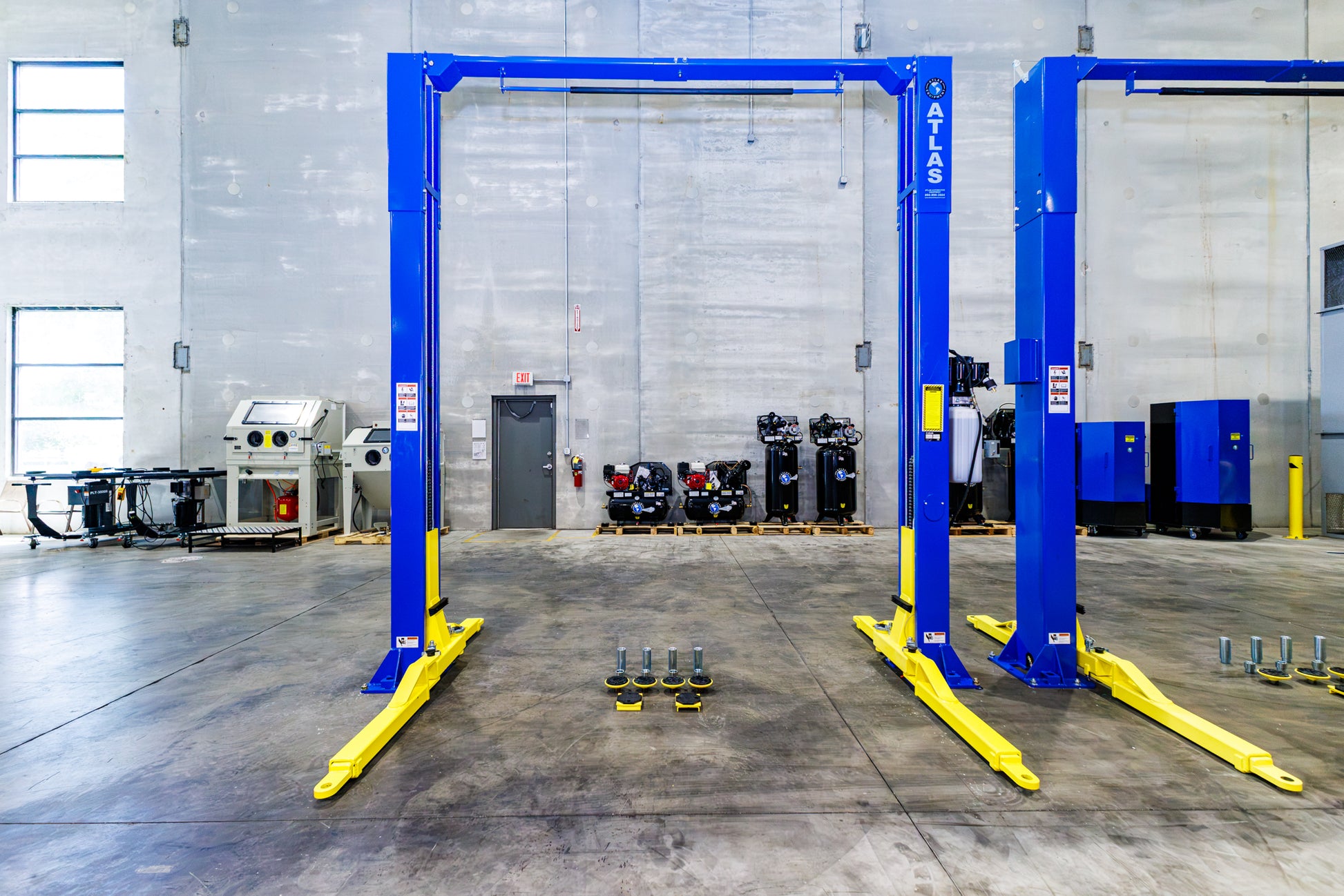

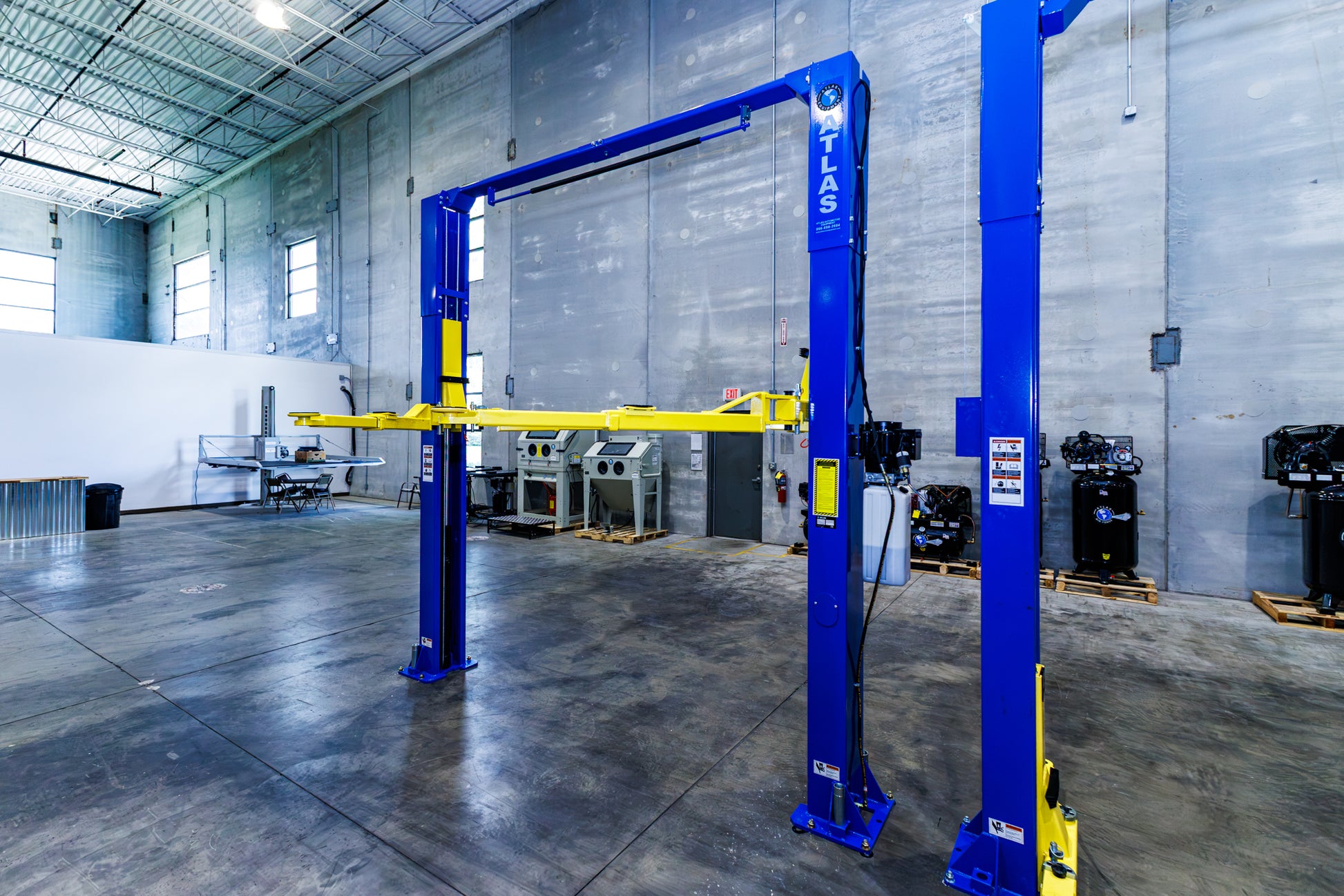

The Atlas 9KOHX is one of our best-selling two-post lifts and one of the best values in a clear-floor overhead lift. With 9,000 lb. capacity, it handles sedans, SUVs, and half-ton crew cab pickups, making it a great fit for home garages and small shops.
It sets up at one of two heights, 11' 6" or 11' 10", so measure your ceiling, plus any garage door track, opener or lights, before you order, and check the installation manual for full requirements. Symmetric columns with arms that set in either the symmetric or asymmetric position make it easy to position a wide range of vehicles, and a low 4" minimum arm height reaches the low pickup points on small cars.
The 9KOHX uses a chain-over-roller design with a spring-loaded secondary lock system that engages automatically if a chain ever goes slack. It runs on 220V single-phase power with a 30 amp breaker and installs on 4" of 3,000 PSI concrete.
Want direct-drive cylinders with fewer moving parts? Step up to the PRO-9D. Need more capacity for heavier trucks? See the 10,000 lb. PV10PX. See them all in our Daleville, Indiana showroom, or call 765-723-6523 to talk with a lift specialist.

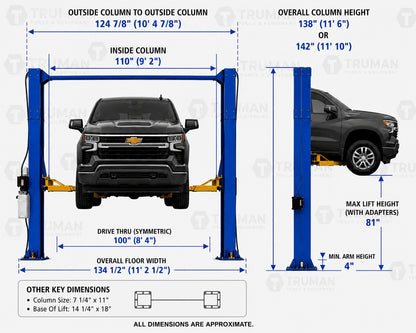

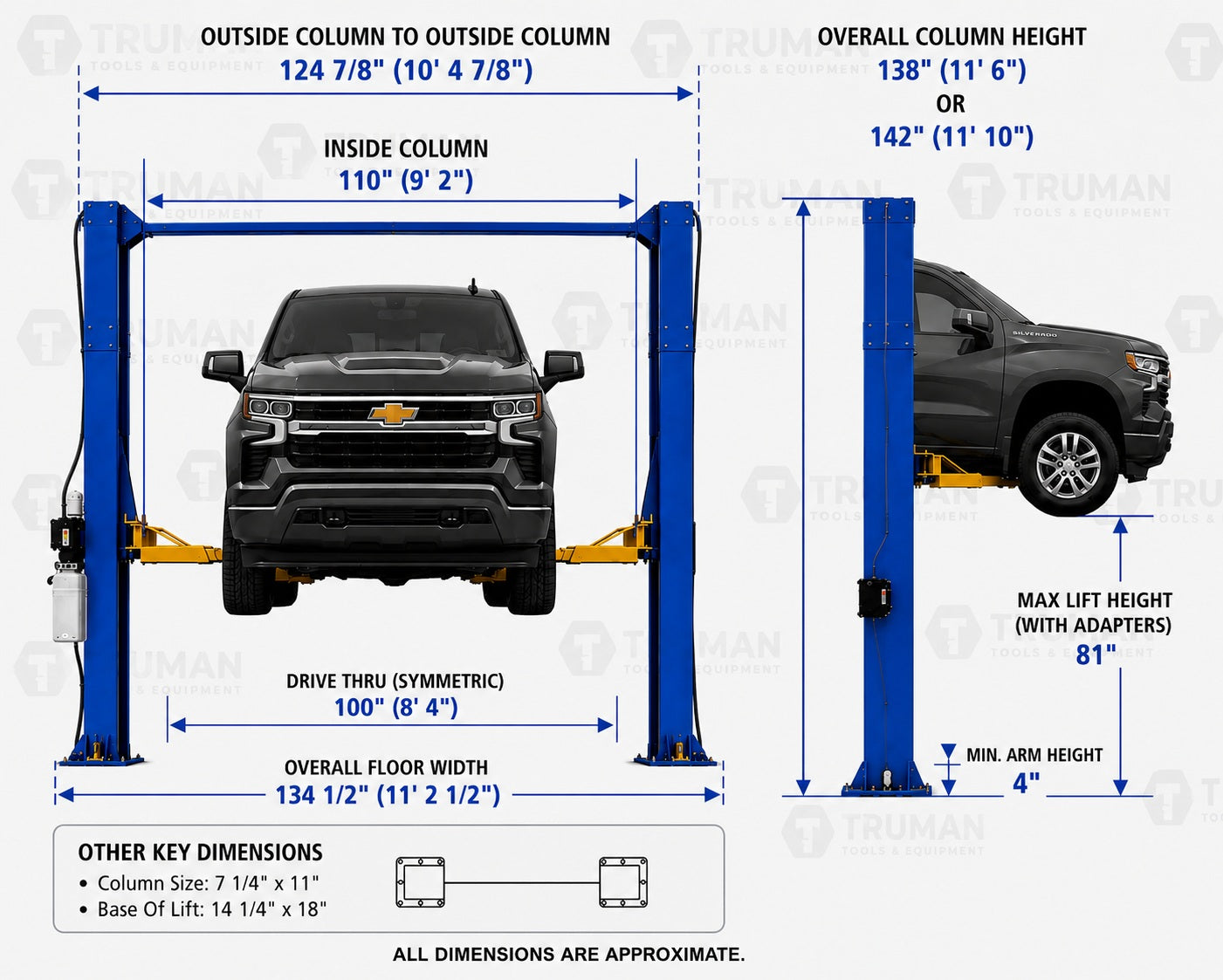

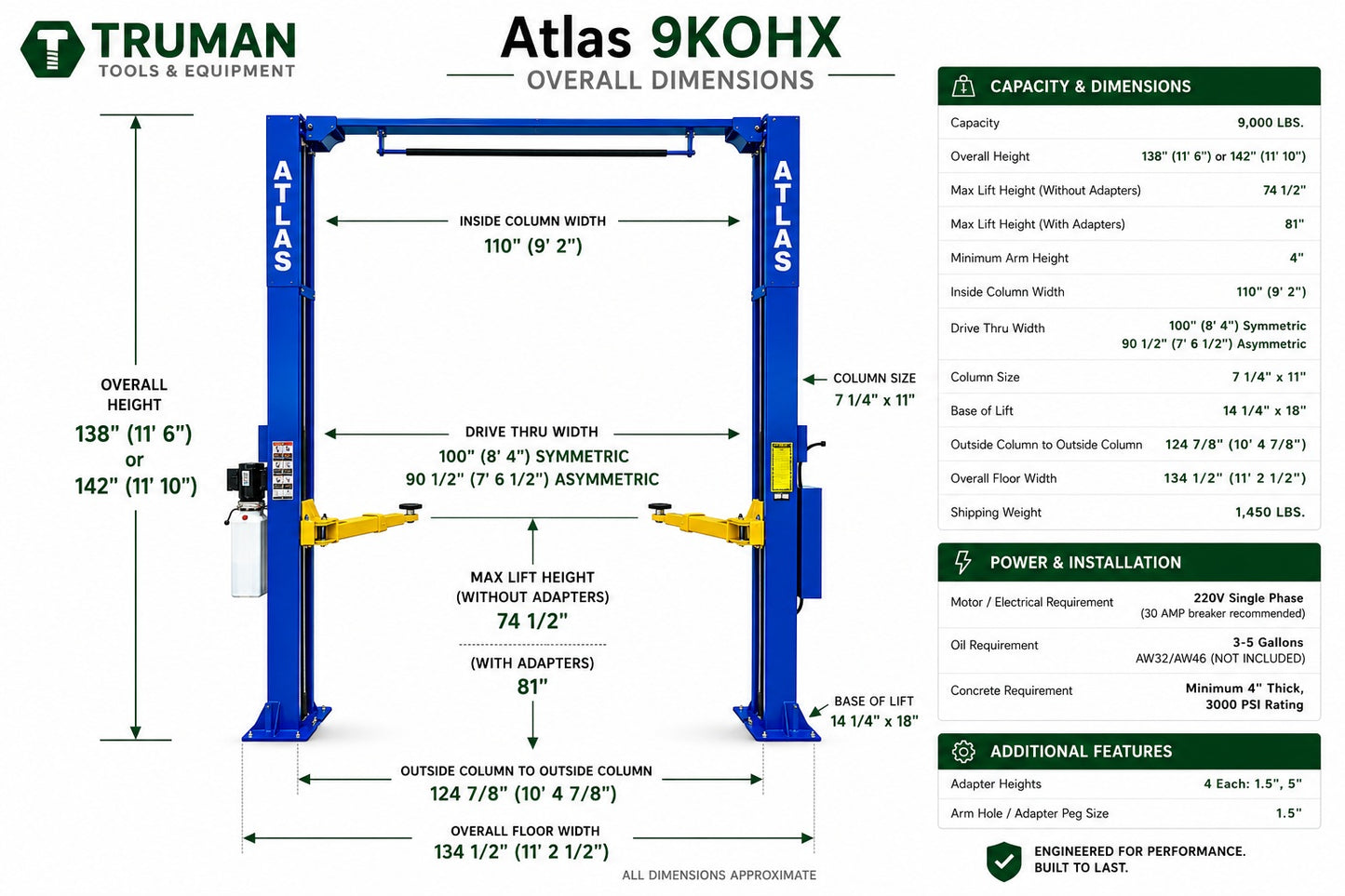

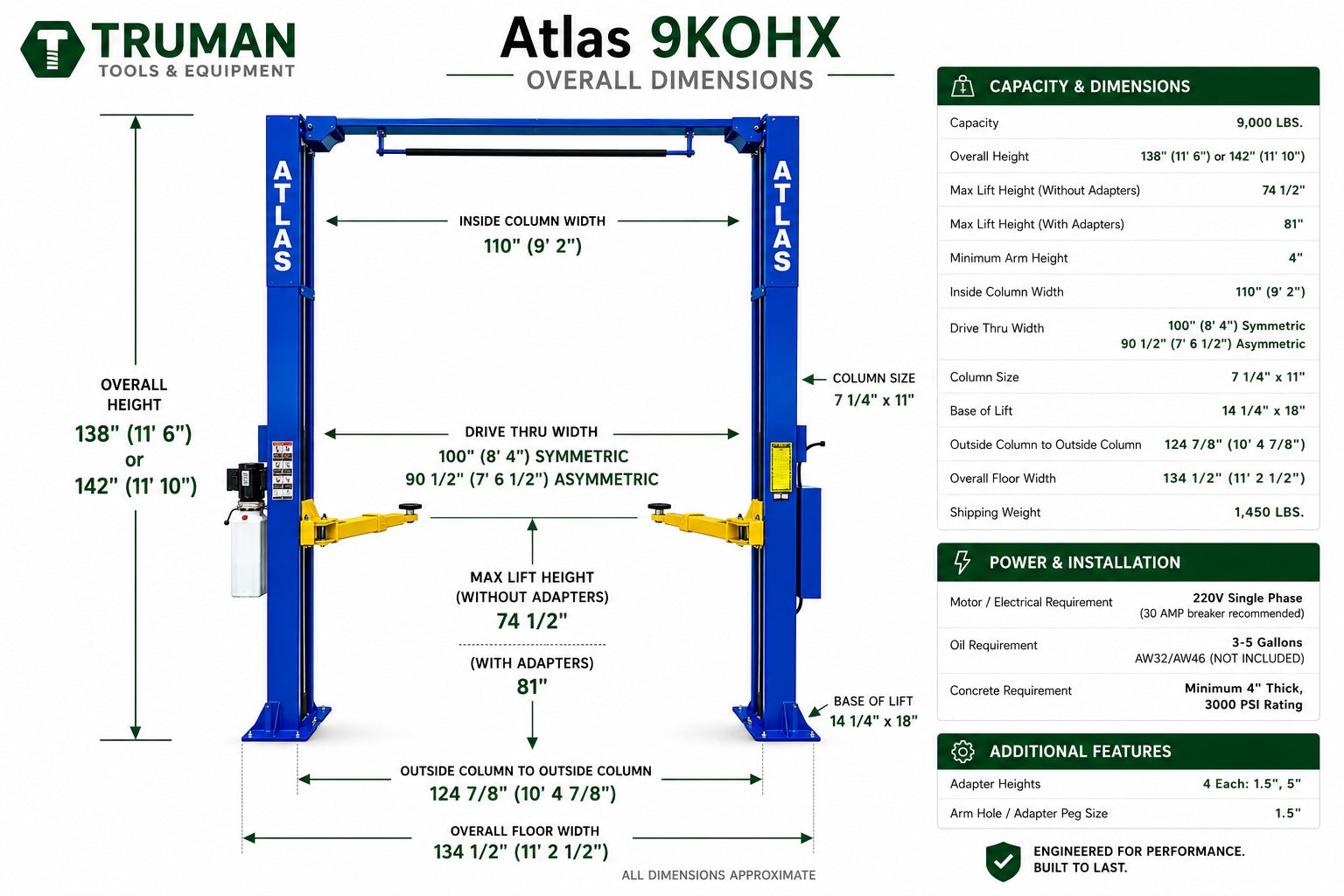

Specs and Dimensions
Capacity
9,000 lb.
Overall Height
138" (11' 6") or 142" (11' 10")
Overall Floor Width
134 1/2" (11' 2 1/2")
Outside Column to Outside Column
124 7/8" (10' 4 7/8")
Inside Column
110" (9' 2")
Column Size
7 1/4" x 11"
Base Of Lift
14 1/4" x 18"
Shipping Weight
1,450 lbs.
Maximum Lift Height (Without Adapters)
74 1/2"
Maximum Lift Height (With Adapters)
81"
Minimum Arm Height
4"
Drive Thru (Symmetric)
100" (8' 4")
Drive Thru (Asymmetric)
90 1/2" (7' 6 1/2")
Motor/Electrical Requirement
220V single phase (30 amp breaker recommended)
Oil Requirement
3–5 gallons AW32/AW46 (not included)
Concrete Requirement
Minimum 4" thick, 3000 PSI rating

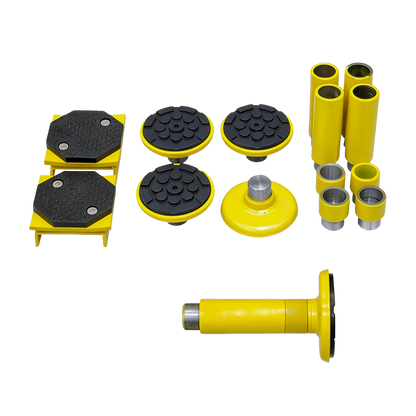

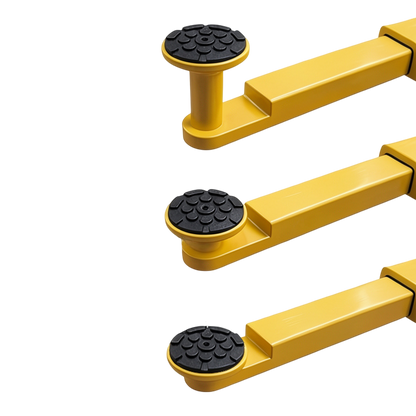

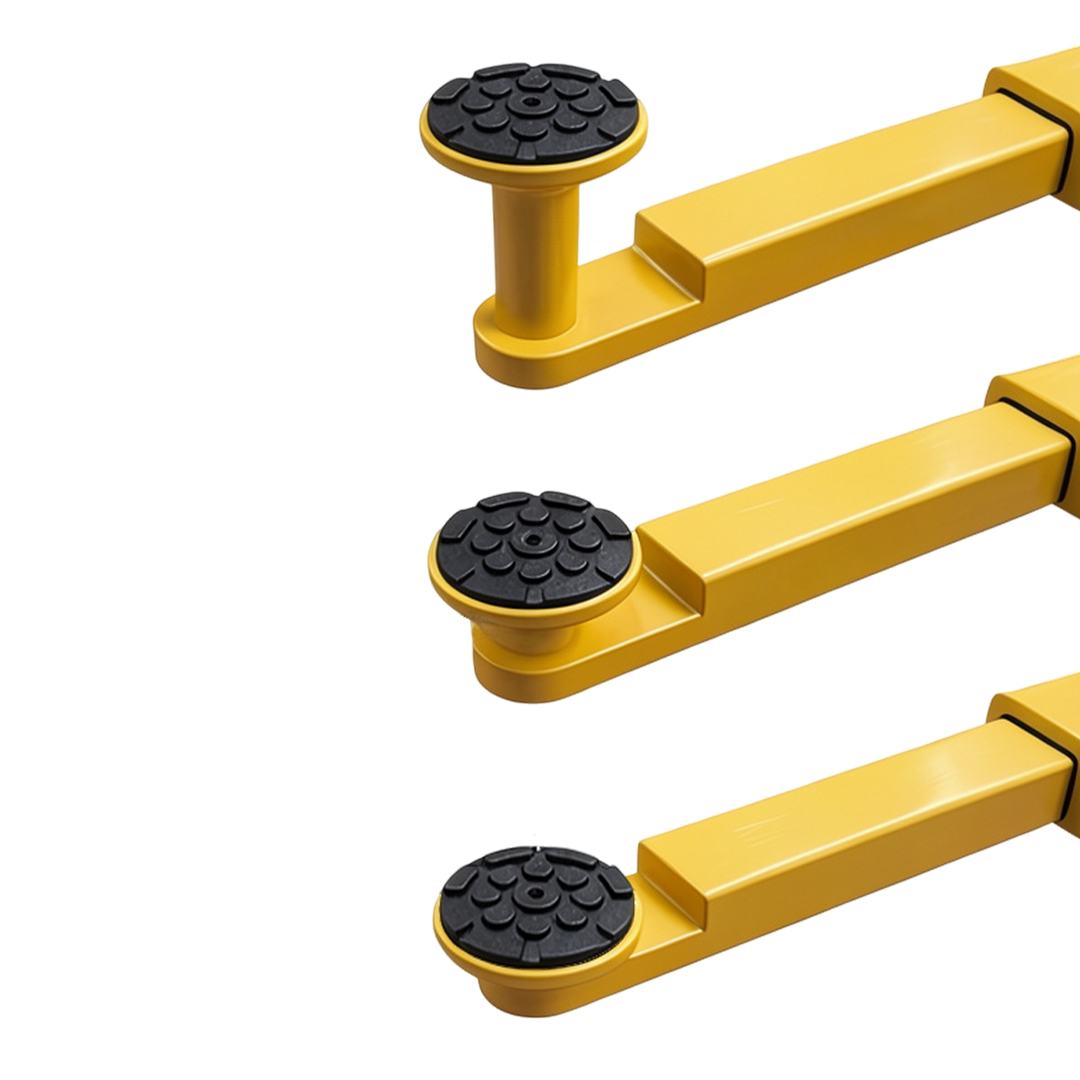

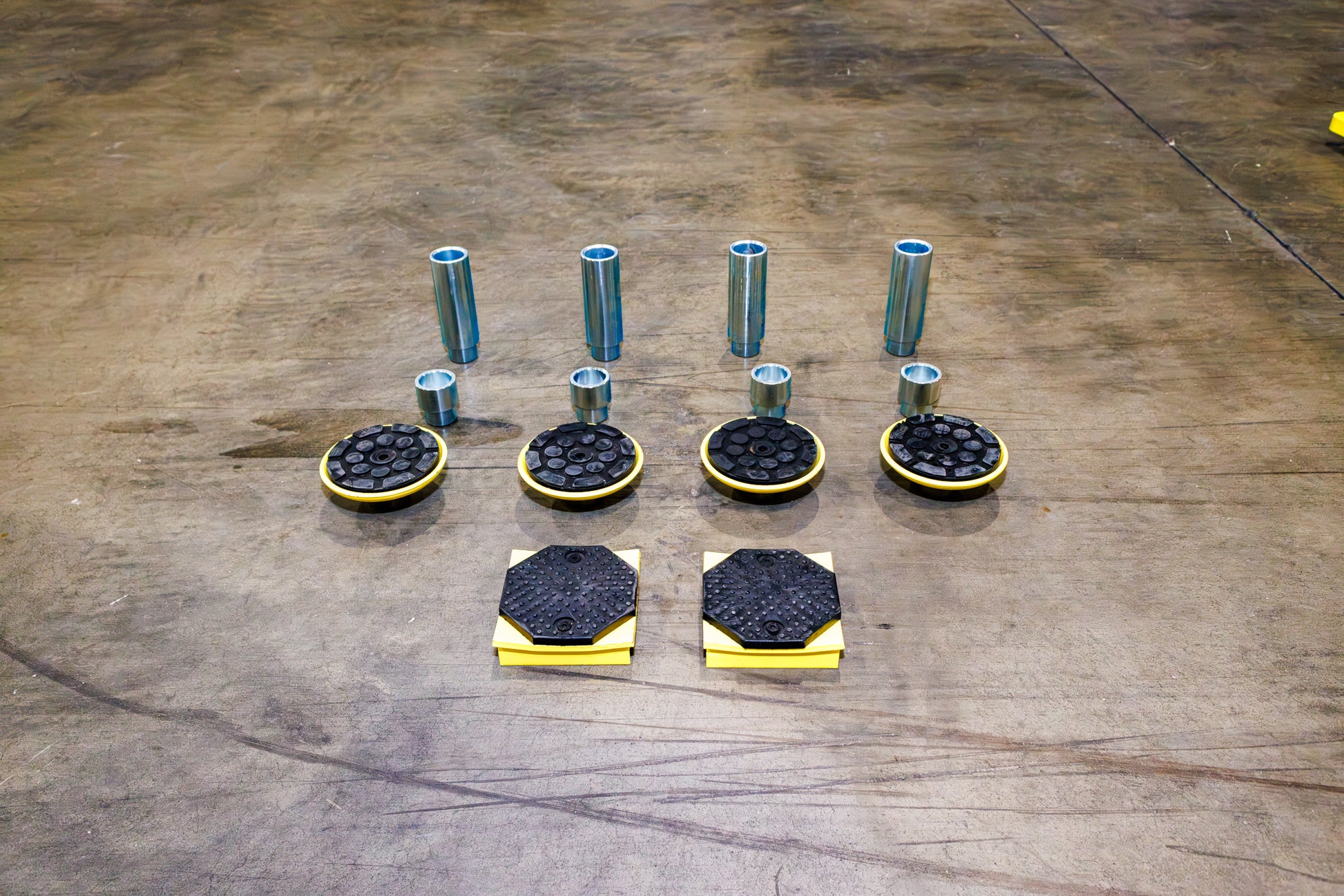

Adapter Heights Included
1.5" and 5" (4 each)
Arm Hole / Adapter Peg Size
1.5"
Questions before you buy
How tall does my ceiling need to be?
What kind of power does it need?
What concrete do I need?
Will it lift my truck?

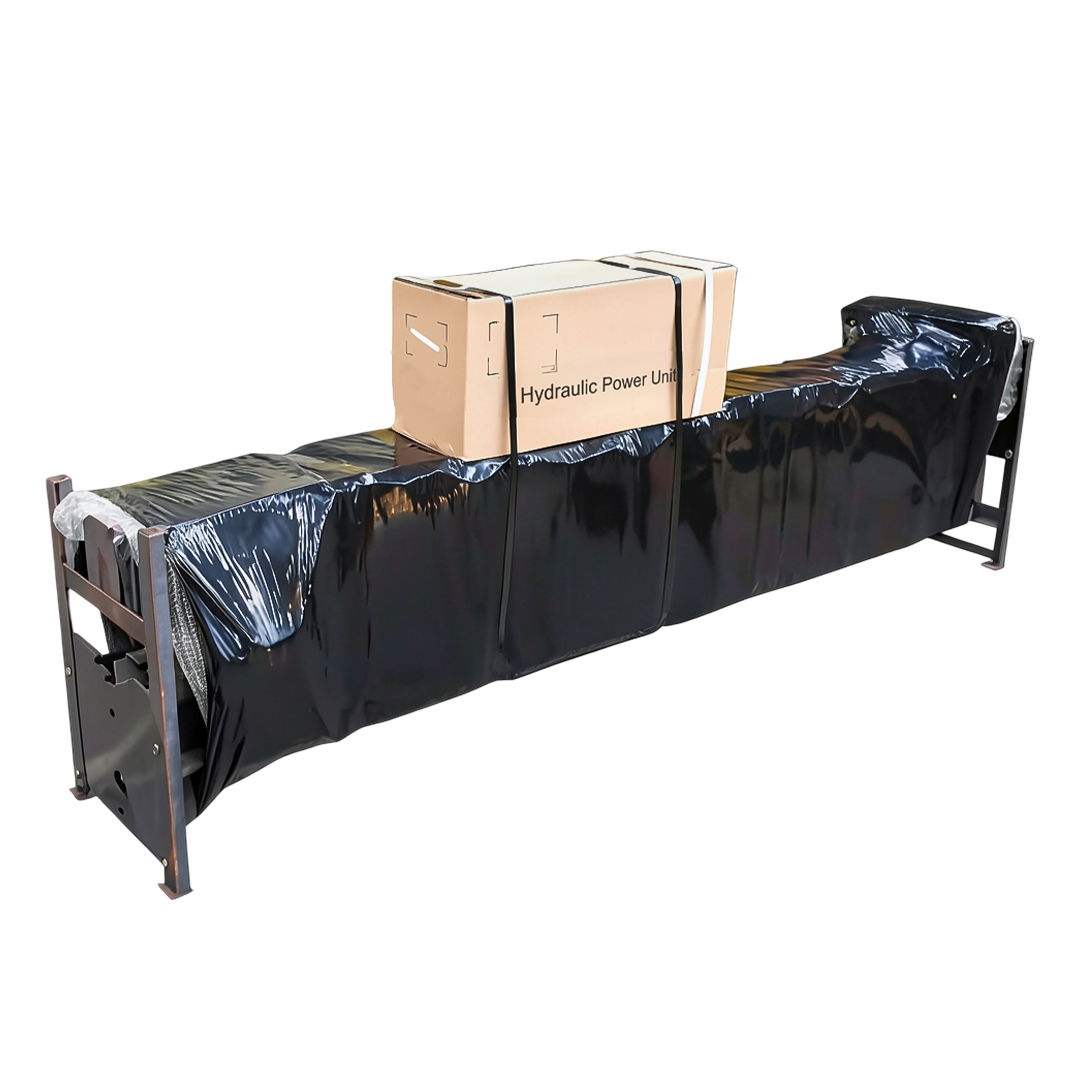

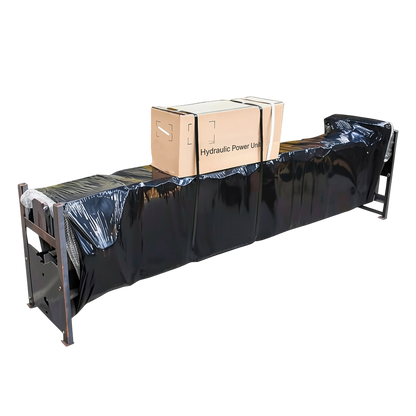

What comes with it?
Can I pick it up at the showroom?
What's the warranty?
