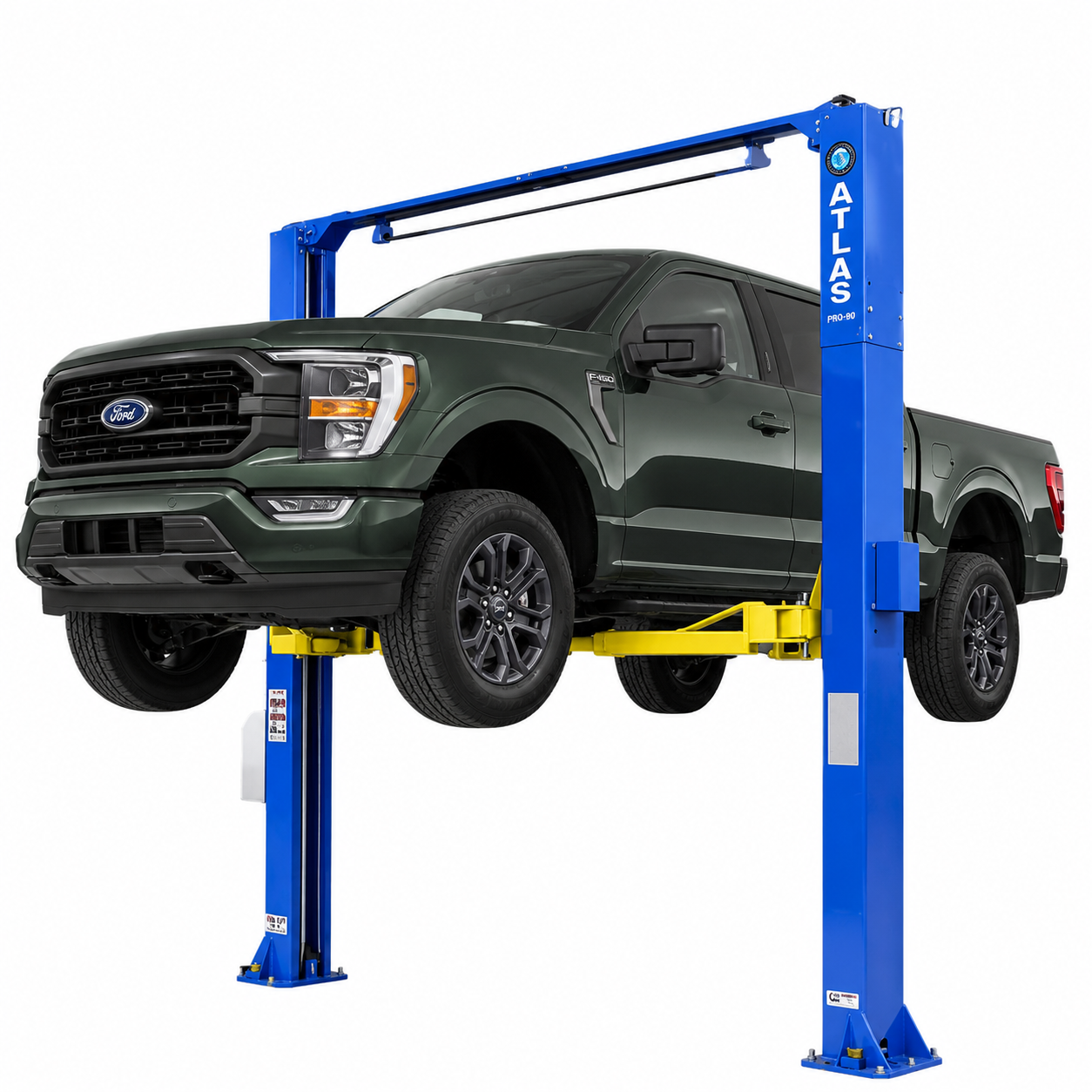

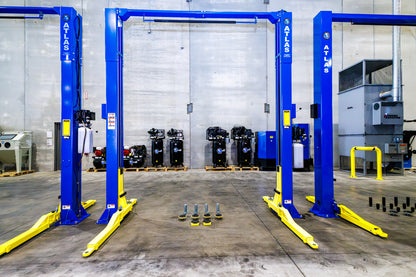

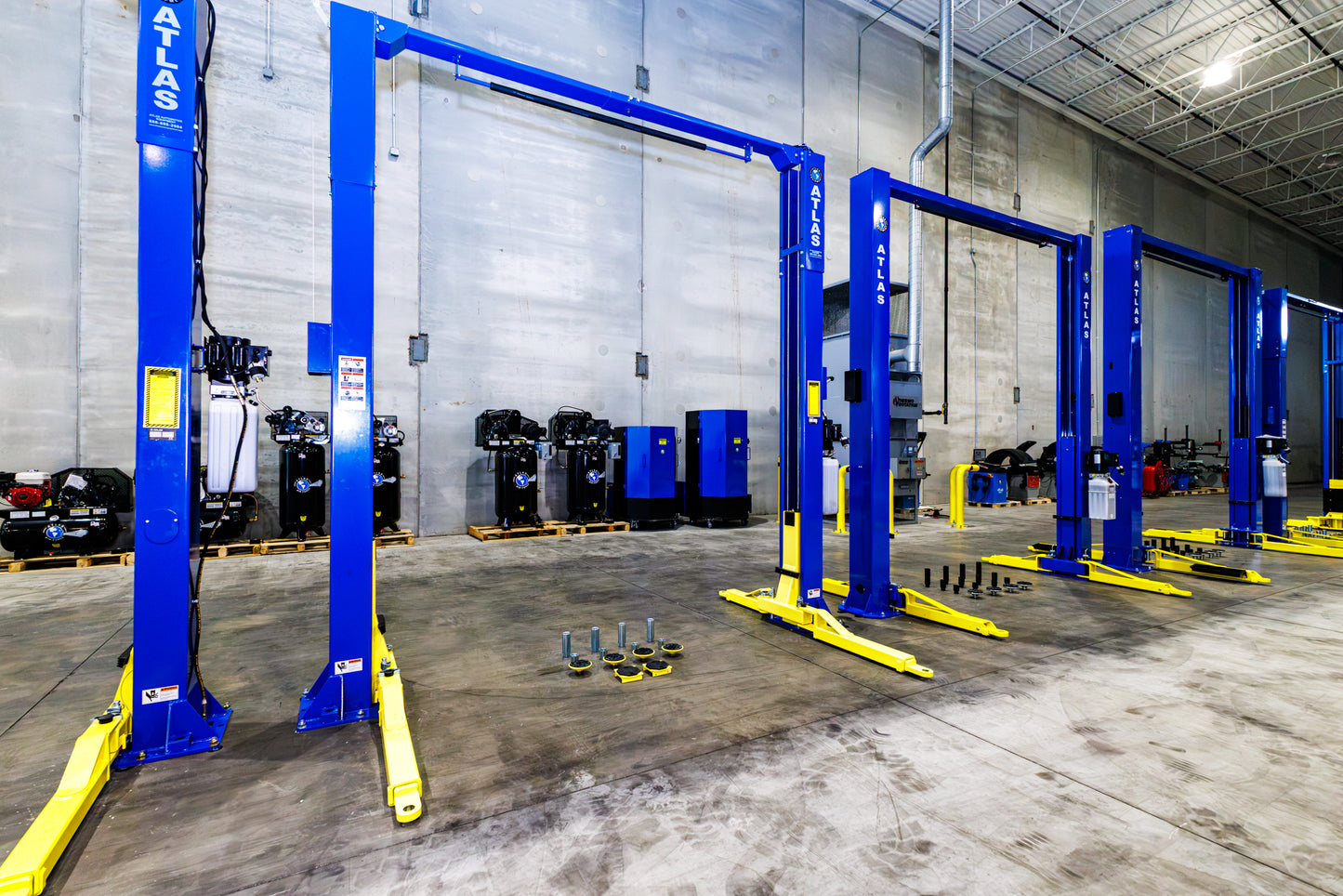

Atlas PRO-9D 9,000 lb Overhead 2-Post Lift
Atlas PRO-9D 9,000 lb Overhead 2-Post Lift
Commercial-grade 9,000 lb. 2-post lift with dual direct-drive cylinders. Made for cars, SUVs, and half-ton crew cab pickups.
Regular price
$3,029
Sale price
$3,029
Regular price
SKU: ATEXH-PRO-9D
Included free:Free:
Talk to an expert before you buy
Questions on fit, ceiling height or install? We'll help you pick the right one.
On display in our Indiana showroom. See it run, then take it home today. We'll load it for you. Open Mon–Sat.
Included free with this product
Quantity
Couldn't load pickup availability
Why buy from Truman
Free pickup
Indiana
Nationwide
Fast shipping
Local installer
Referrals
Largest showroomShowroom
In the countryLargest in the US
100+ years
Of experience
Real people
Ready to help
Why This Lift
- Dual direct-drive cylindersFewer moving parts and less maintenance
- True 9,000 lb. capacityCars, SUVs, and half-ton pickups

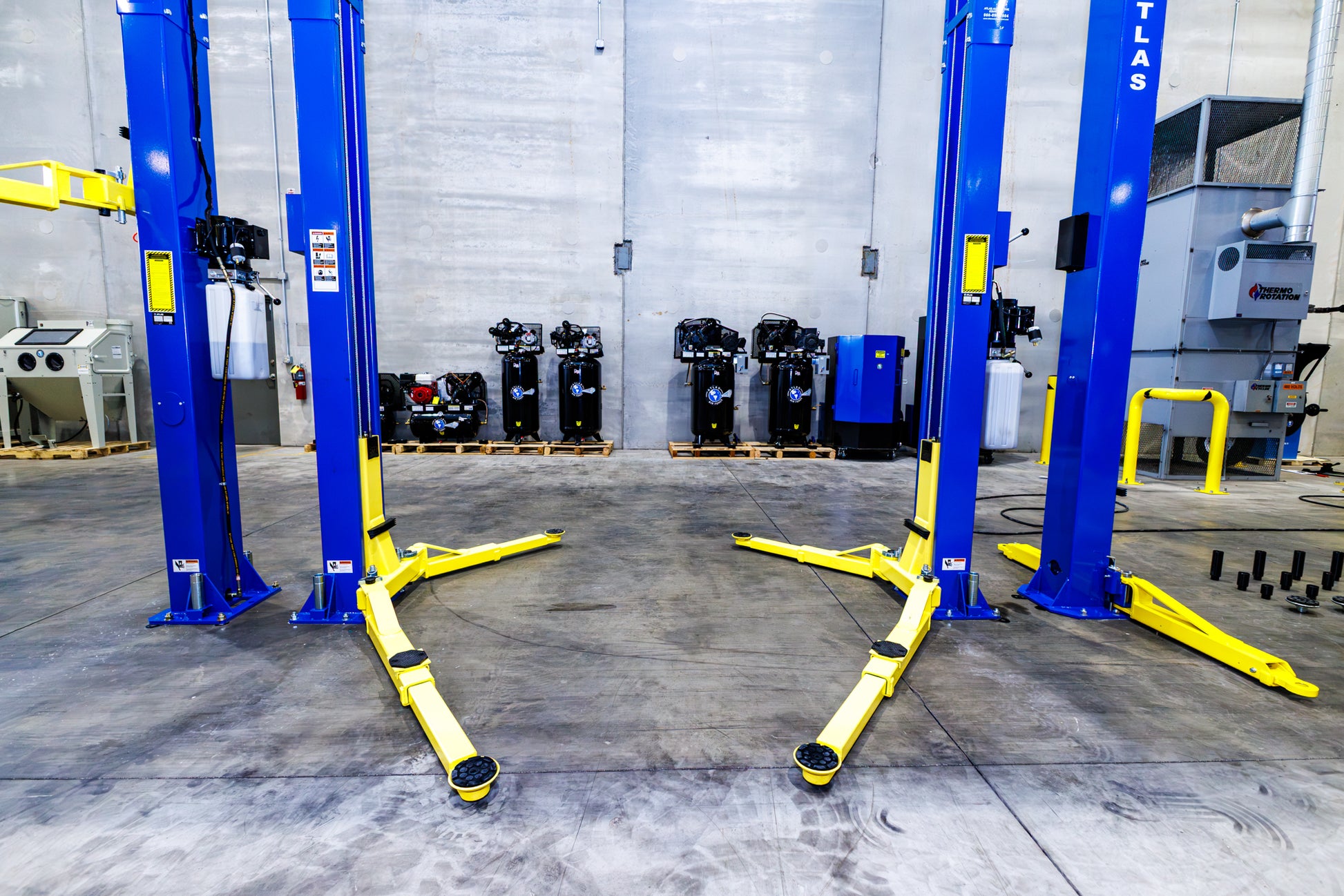

- Symmetric or asymmetric armsLow pad height for low-clearance cars
- 12' overall heightFits many garages and shop bays
Explore this lift

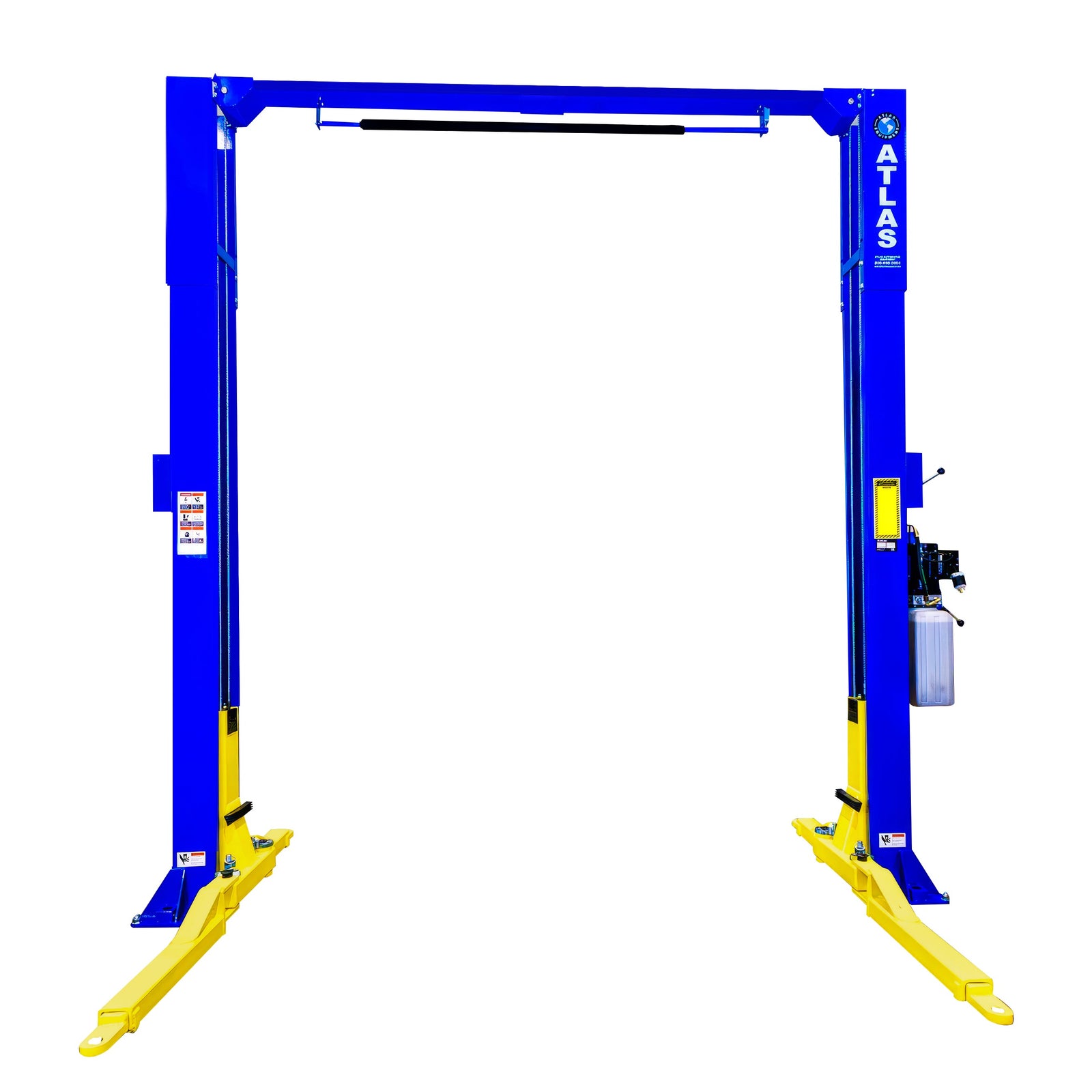

Explore the Atlas PRO-9D
Tap a number to see what each part does.
Product Description
The Atlas PRO-9D is a true 9,000 lb. capacity two-post lift built for small repair shops and serious home garages that want commercial-grade features at a fair price. It handles everything from compact cars to half-ton crew cab pickups and full-size SUVs.
The PRO-9D's dual direct-drive cylinders have fewer moving parts than chain-driven designs, which means less maintenance and years of dependable lifting. Symmetric columns with arms that set symmetric or asymmetric give you flexibility, and the low pad height reaches the pickup points on low-clearance cars.
At 12' tall overall, the PRO-9D fits many garages and shop bays. It runs on 220V single-phase power with a 30 amp breaker and installs on 4" of 3,000 PSI concrete.
Need two height settings for a lower ceiling? Compare the 9KOHX. Lifting heavier trucks? Step up to the 10,000 lb. PV10PX. See them in our Daleville, Indiana showroom, or call 765-723-6523 to talk with a lift specialist.

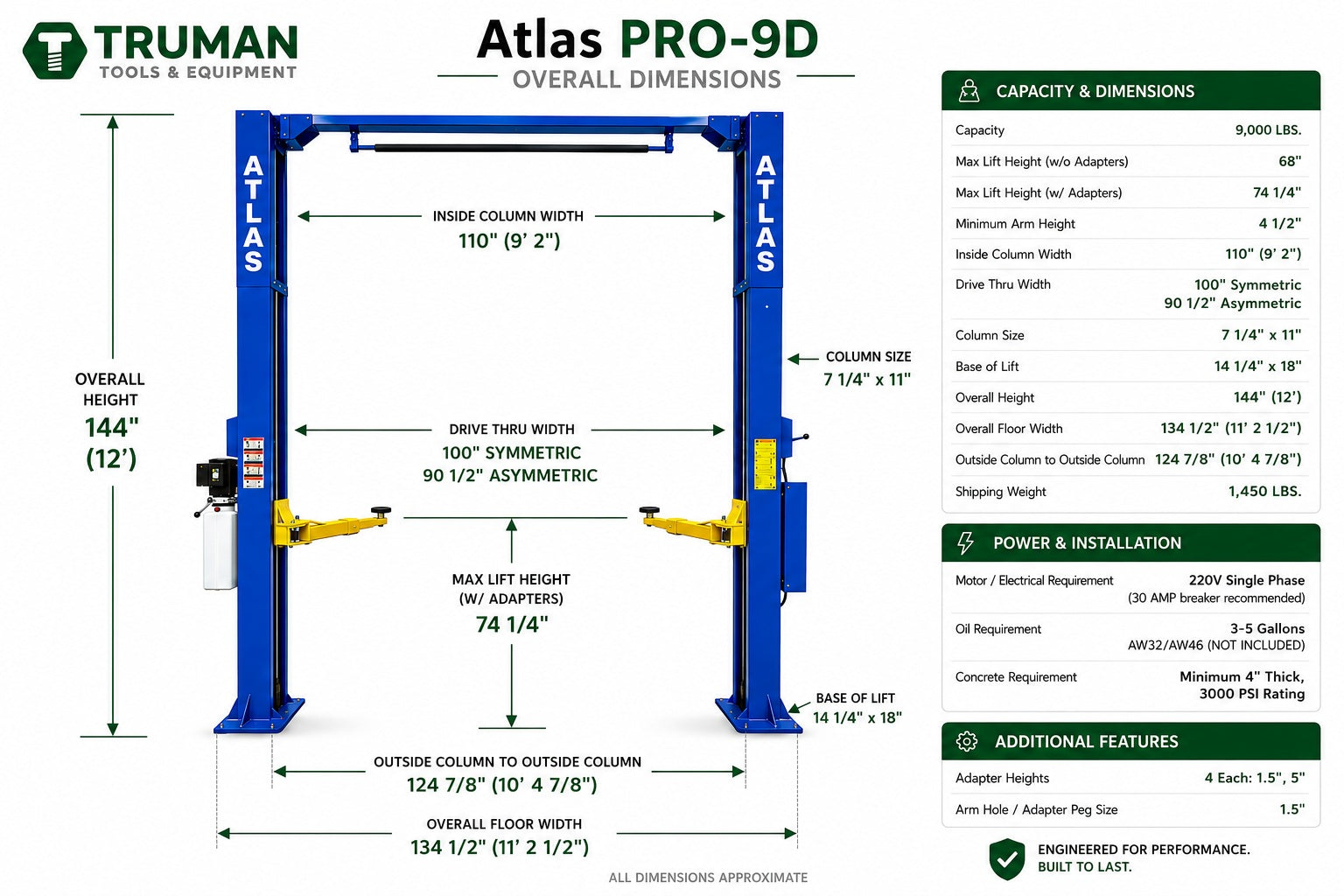

Specs and Dimensions
Capacity
9,000 lbs.
Overall Height
144" (12')
Overall Floor Width
134 1/2" (11' 2 1/2")
Outside Column to Outside Column
124 7/8" (10' 4 7/8")
Maximum Lift Height (Without Adapters)
68"
Maximum Lift Height (With Adapters)
74 1/4"
Minimum Arm Height
4 1/2"
Shipping Weight
1,450 lbs.
Inside Column Width
110" (9' 2")
Drive Thru Width
100" Symmetric / 90 1/2" Asymmetric
Column Size
7 1/4" x 11"
Base of Lift
14 1/4" x 18"
Motor / Electrical Requirement
220 Volt Single Phase (30 AMP Breaker Recommended)
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)

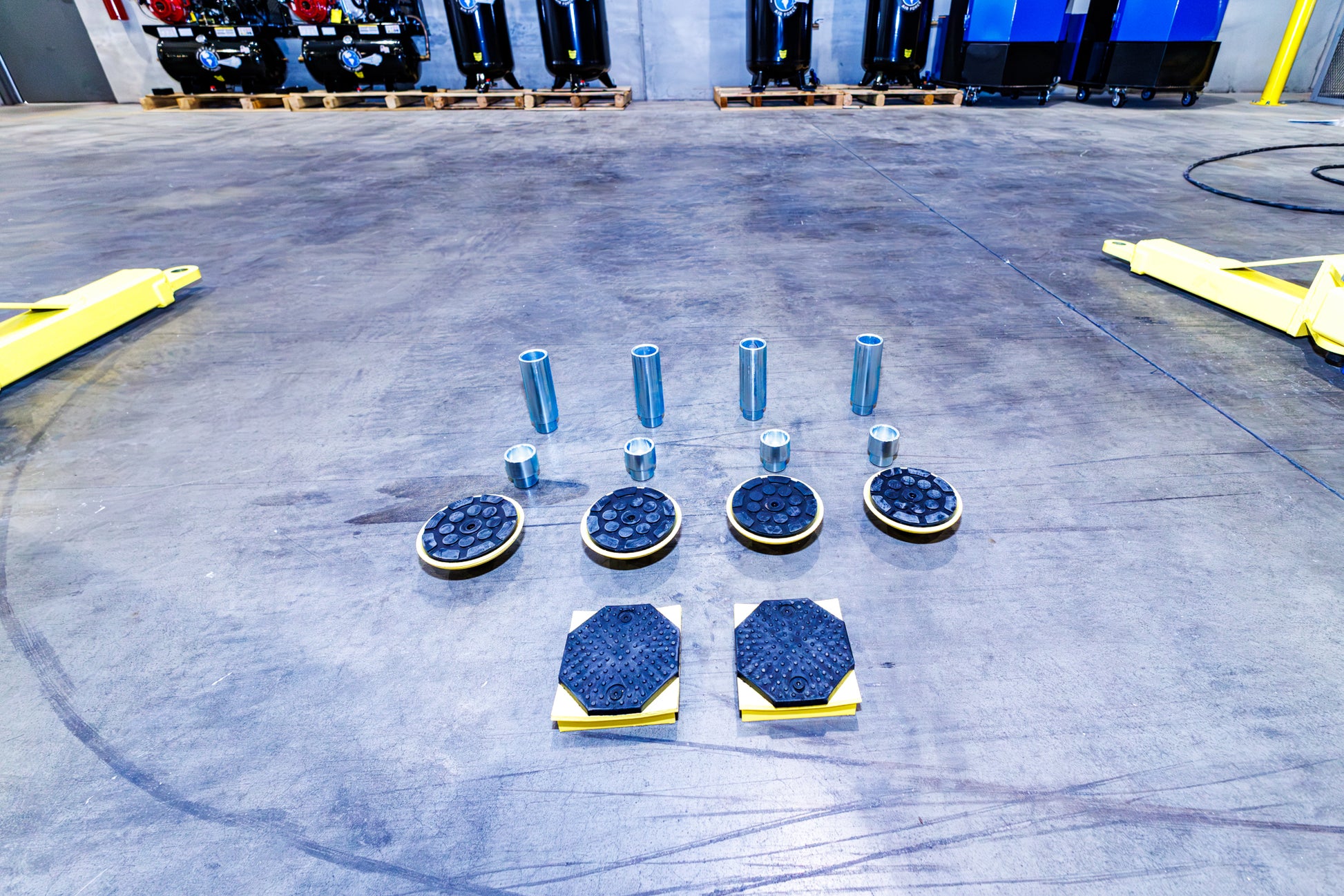

Adapter Heights
4 Each 1.5", 5"
Arm Hole / Adapter Peg Size
1.5"
Concrete Requirement
Minimum 4" Thick, 3000 PSI Concrete
