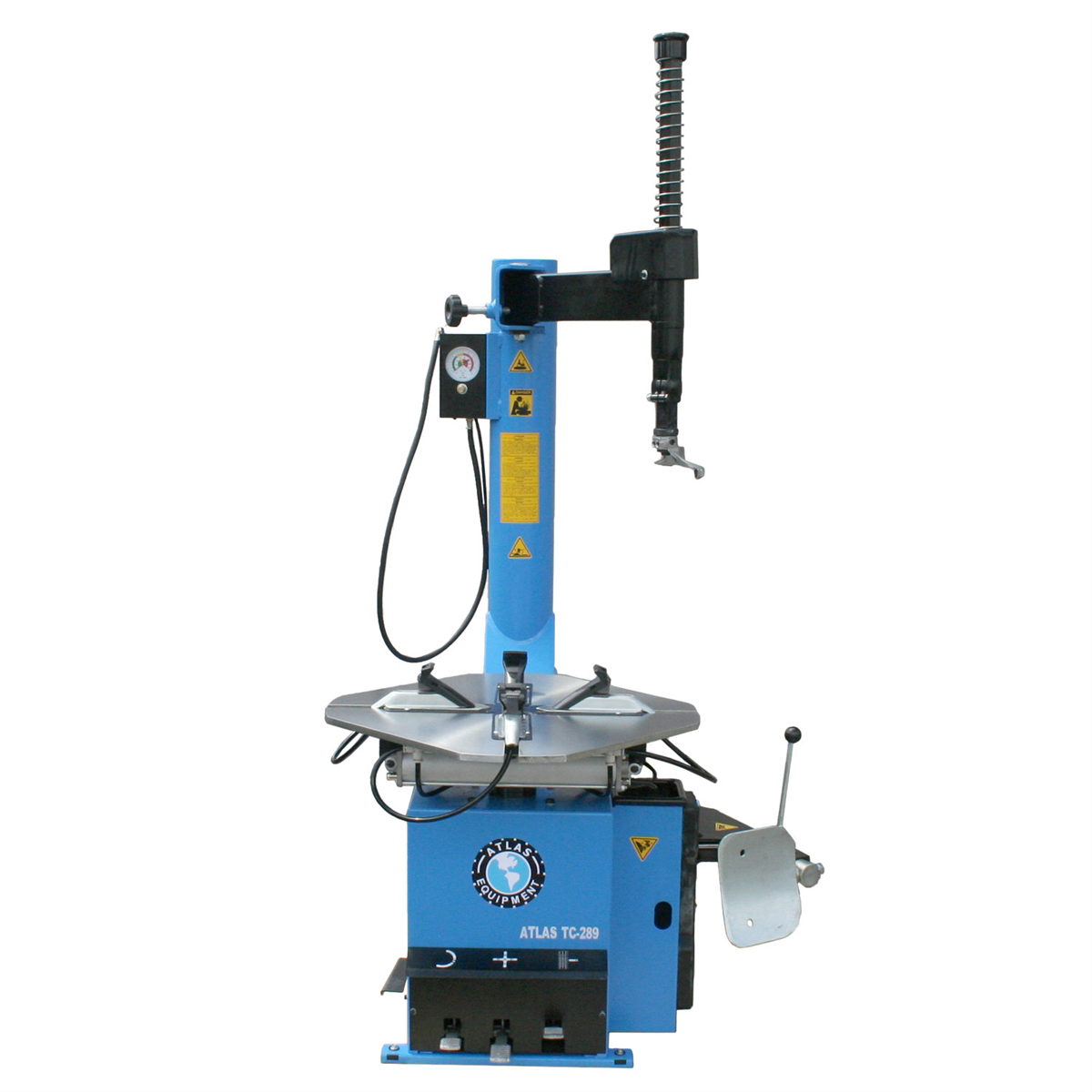

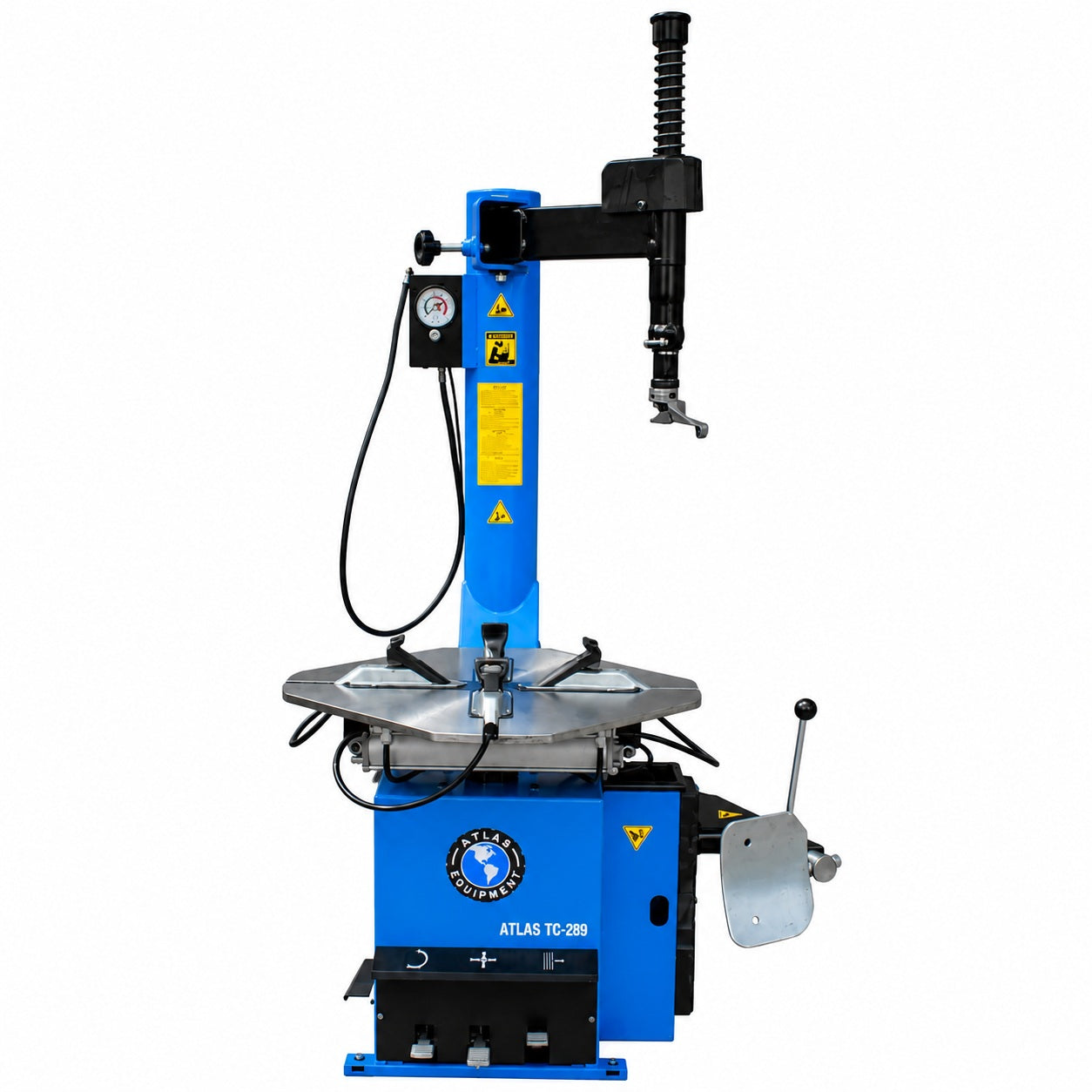

The Atlas TC289 rim clamp, swing arm tire changer is the perfect machine for most general automotive service departments and medium sized tire stores. The TC289 is also great for farm use and "Mr. Homeowner" looking to do larger tires.. This machine features the biggest turntable and most clearance to handle the biggest diameter tires, and is perfect for changing the tires on large SUV's and one ton trucks. The TC289 features a built in "Beadblaster" system. The "Beadblaster" system helps inflate stiff sidewall or other "hard to inflate" tires. The Atlas wheel clamp tire changers are designed to change the tires on both high priced alloy wheels and steel wheels without damaging the rim or the tire. The Atlas TC289 has a powerful ADJUSTABLE bead breaker located on the side of the machine which is designed to break even the most stubborn and rusted beads without damage to the rim. The turntable jaws (which can be covered with plastic covers) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slide of the turntable to either increase or decrease the clamping range, and to handle the widest variety of tires. The Atlas TC289 requires some assembly after purchase.
- Large rim clamp swing arm tire changer
- Extra-large turntable for increased wheel clearance
- Air-operated jaws & bead breaker
- Electric turntable operation
- Adjustable jaws with three mounting positions
- Adjustable bead breaker plate
- Metal mount/demount head with replaceable inserts
- Column-mounted inflator box with gauge
- Filter, regulator & lubricator included
- 20" tire tool included
- Lube bucket with brush included
- Large plastic jaw covers included
- Plastic bead breaker shovel cover included
- Replacement inserts for mount/demount head included
- Motorcycle & ATV adapters available separately
- Built-in beadblaster system
- Replacement parts & wear items always in stock
- 1-year parts only warranty included
| Compatible Rims | Steel, Aluminum, Alloy |
| Maximum Tire Diameter | 47" |
| Maximum Wheel Width | 14 3/4" - 18 1/2" (Depending on Position) |
| External Locking Rim Dimensions | 11 7/8" - 28" (3 Positions) |
| Internal Locking Rim Dimensions | 13 7/8" - 29 7/8" (3 Positions) |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lbs. |
| Air Requirement | 90-110 PSI (Max 140 PSI) |
| Operating Voltage | 110volt |
| Shipping Weight | 620 lbs. |
