Heavy Duty Tire Changers

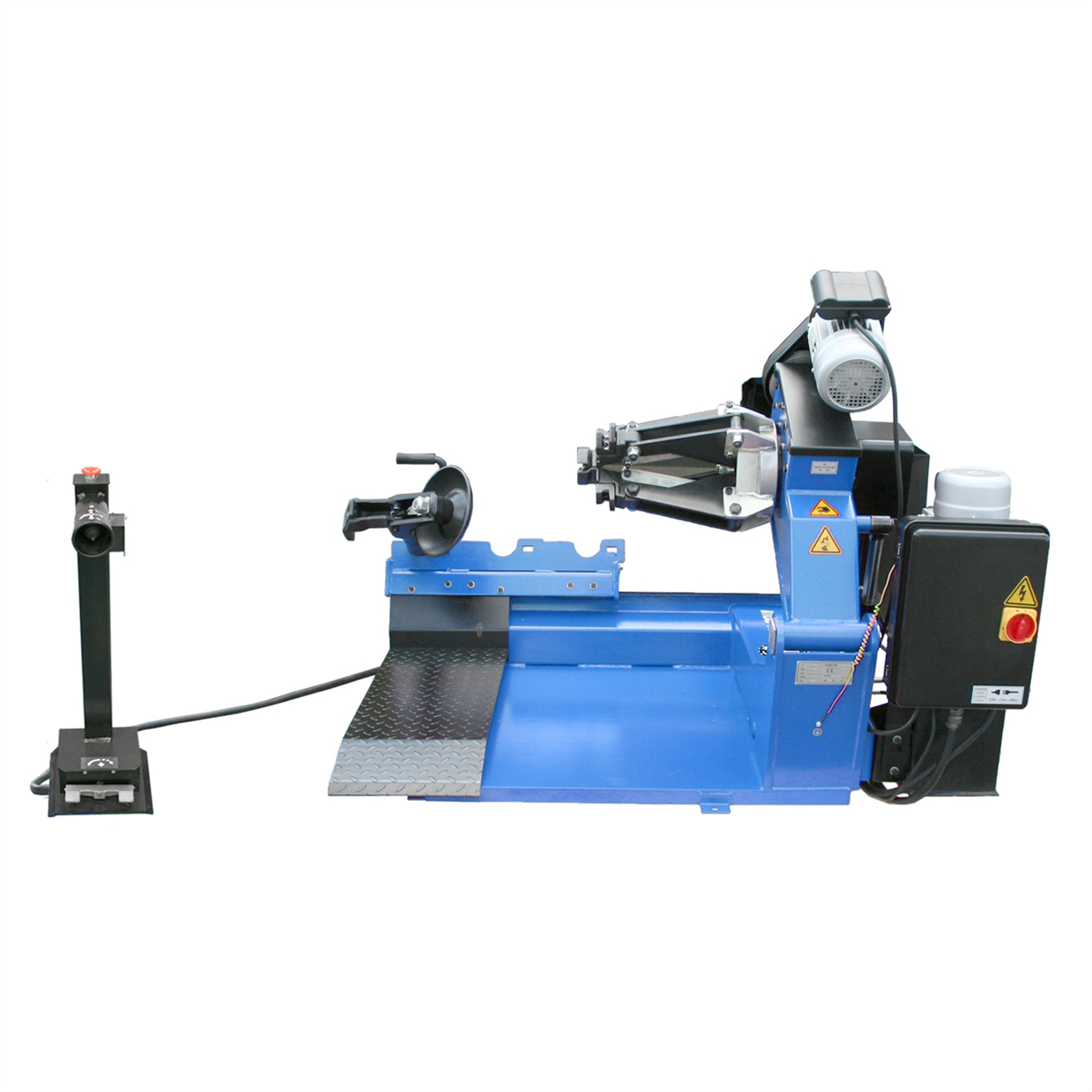

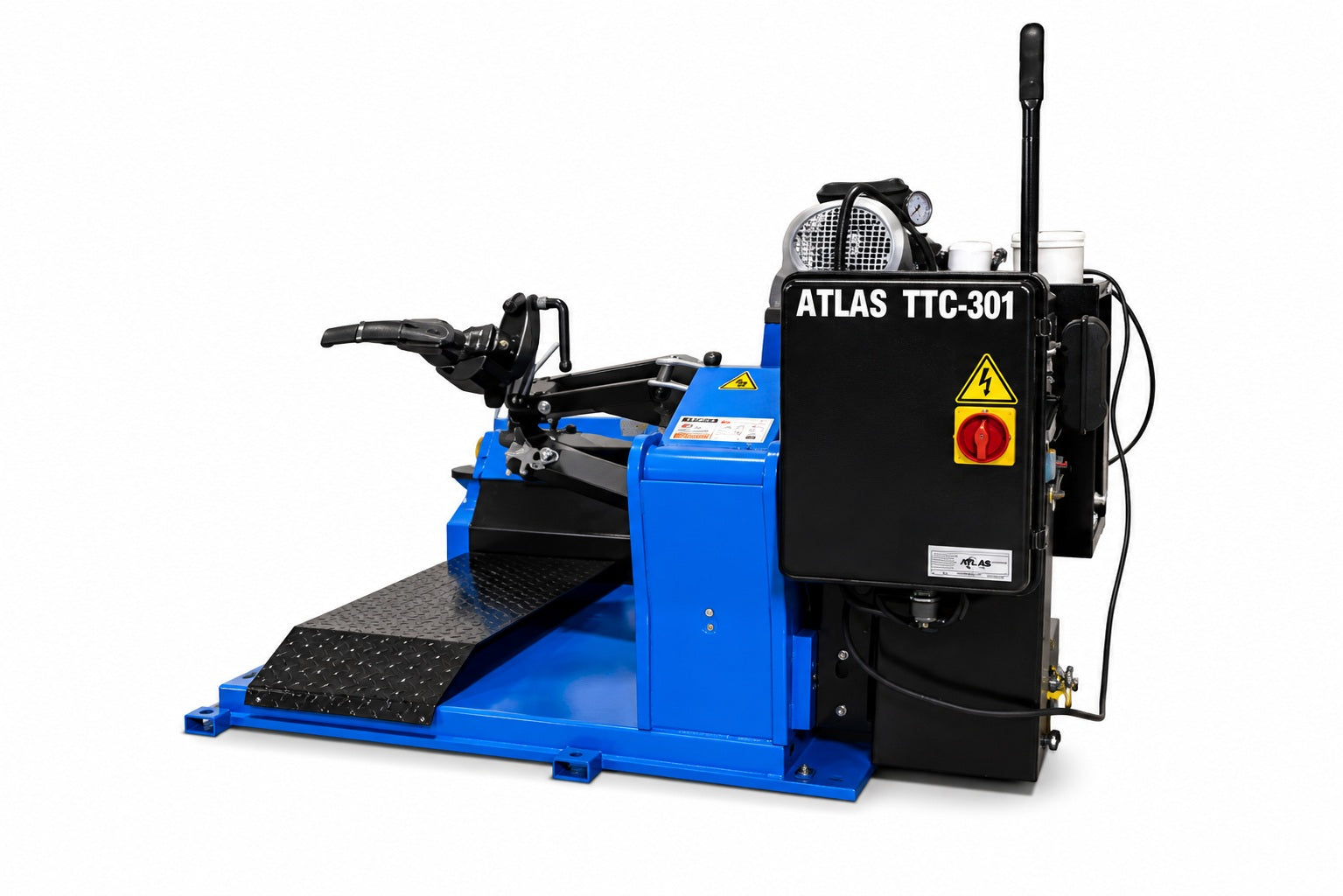

Atlas TTC301 Truck Tire Changer
Atlas TTC301 Truck Tire Changer
Heavy duty truck tire changer for rims up to 27 inches and tires over 63 inches
SKU: ATEATTC301
Regular price
$9,499
Sale price
$9,499
Regular price
Shipping calculated at checkout.
Need Help Deciding?
Specs can only tell you so much. Call or text our team for a straight answer on fit, install, and what actually works for your space and your vehicle.
Quantity
Couldn't load pickup availability
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
Large Rim Capacity
Handles rims up to 29 7/8"
63 Inch Tires
Designed for oversized wheels
Hydraulic Chuck
Self-centering four jaw system
Five Lock Positions
Flexible wheel clamping
Mobile Controls
Wired remote operation
Heavy-Duty Design
Built for shop environments
PRODUCT DETAILS
Product Overview
This Heavy Duty Atlas TTC301 truck tire changer is designed and engineered to handle rim sizes from 13 inches to 27 inches and tire diameters in excess of 63 inches. The Atlas TTC301 truck tire changer can easily accommodate tires with a maximum width of...
Show More
Indiana Showroom
See this product in person
Most products we sell are on the floor of our 50,000 sq ft warehouse in Daleville, Indiana ready for a hands-on demo.
Plan Your Visit
This Heavy Duty Atlas TTC301 truck tire changer is designed and engineered to handle rim sizes from 13 inches to 27 inches and tire diameters in excess of 63 inches. The Atlas TTC301 truck tire changer can easily accommodate tires with a maximum width of 30.5 inches. This tire changer has been sold all over the world for the last several years and is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the premier wheel service equipment manufacturer in Asia. The Atlas TTC301 truck tire changer is designed for high volume tire shops that demand dependability and durability in their equipment. The TTC301 is the perfect choice for the large truck tire center or large farm that does high volume truck tire work on standard over the road wheel assemblies.
- Standard truck tire changer
- Handles rims from 13 in. to 27 in.
- Handles tire diameters over 63 in.
- Accommodates tire widths up to 30 1/2 in.
- Bead breaker
- Mount and demount head
- Electric hydraulic self-centering four jaw chuck
- 5 rim locking positions
- Wired mobile control unit
- Heavy duty tire tool included
- Rim clamps for steel and alloy wheels included
- Alloy rim adapter set with plastic inserts included
- 1 year parts only warranty
Wheel Capacity
| Rim Clamping Range | 13 in. - 27 in. |
| Minimum Clamping Size w/ Alloy Adapters | 6 3/8 in. |
| Max Wheel Weight | 3,300 lbs. |
| Max Tire Diameter | 63 in. (5 ft. 3 in.) |
| Max Tire Width | 30 1/2 in. (2 ft. 6 1/2 in.) |
Performance
| Clamping Power | 6,614 lbs. |
| Operating Pressure | 0 - 1885 PSI |
| Acoustic Pressure | <70 dBA |
| Bead Breaker Force | 4,112 lbs. |
Operation
| Tool Arm Positioning | Manual |
| Tool Head Positioning | Manual |
| Construction | Single Piece Frame w/ Solid Floor Plate |
Power & Shipping
| Hydraulic Motor | 2 HP, 220V, 1 Phase |
| Chuck Motor | 3 HP, 220V, 1 Phase |
| Breaker Requirement | 30 Amp |
| Shipping Weight | 1,390 lbs. |
